710C Egg Farm Packer (10,000 EGGS/HOUR)

This product has been discontinued and removed from our shelves.

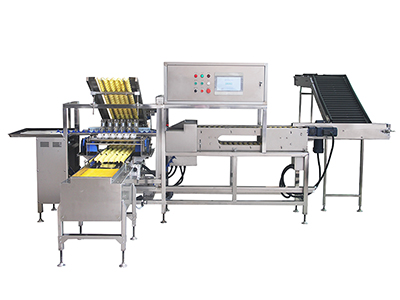

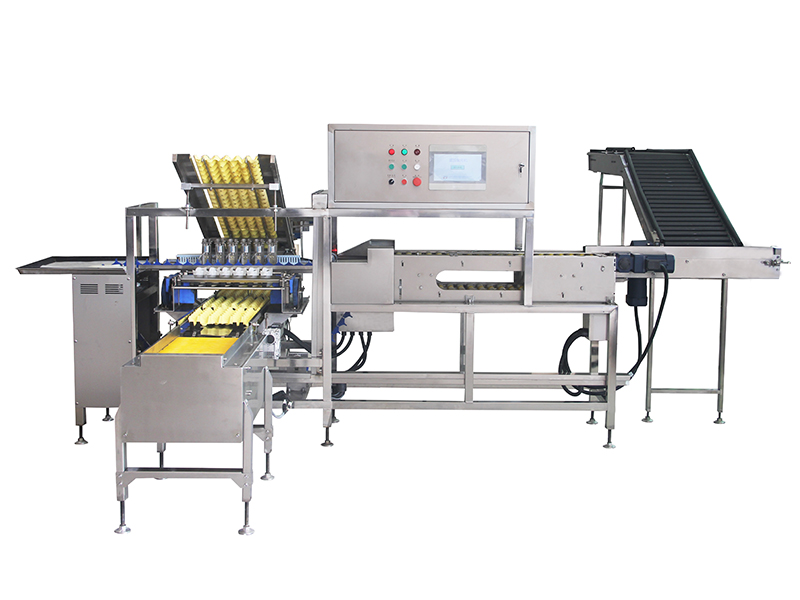

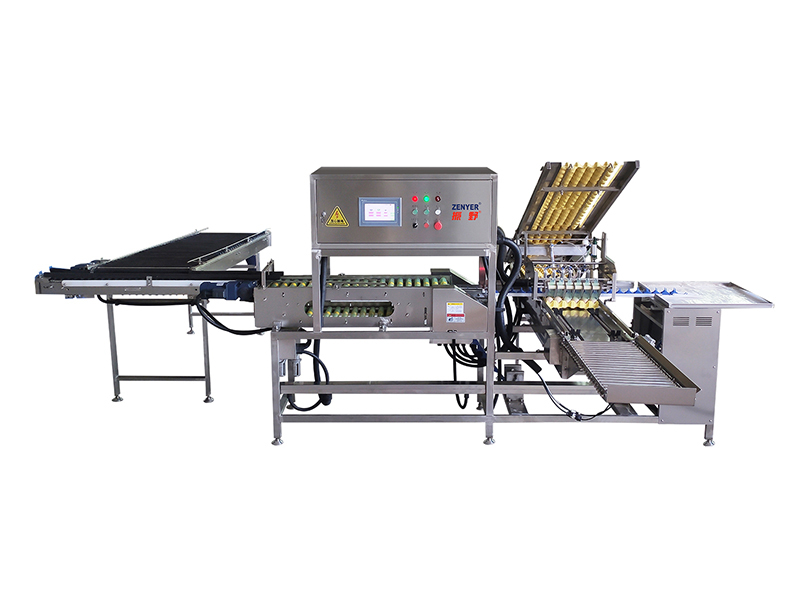

710C Egg Farm Packer
710C Egg Farm Packer 710C Egg Farm Packer 710C Egg Farm Packer 710C Egg Farm Packer

ZENYER 710C egg farm packer with a capacity of 10,000 eggs/hour is designed to connect to a rod conveyor leading from the chicken shed for automatic loading purposes, as well as packing eggs into 5*6 egg trays automatically. It does NOT have a grading function.
It includes an accumulator, automatic head turning, ramp tray loading, automatic packing and counting, all within in one machine.
Only 2 people are needed to fully operate it, one for candling, the other one for loading and collecting the empty trays and loaded trays respectively.

Specifications
Product code Egg farm packer
Product code 710C
Model ZYZ-DA1
Capacity 10,000 eggs/hour
Main material Stainless steel
Power* 2.2kW
Voltage* 380V, 50Hz, 3-phase

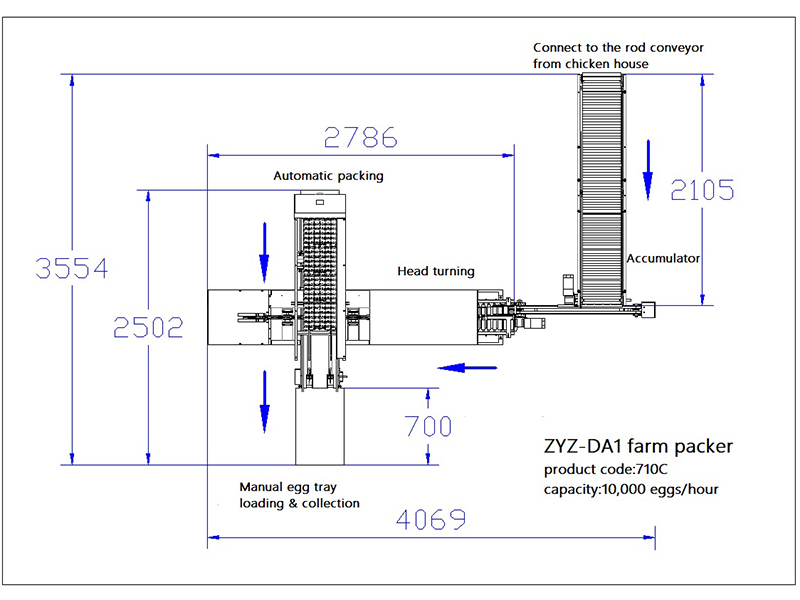

Dimension (L*W*H) 4.07*3.55*2M
Net weight* 450KG
Gross weight* 650KG
Function Accumulator, candling, automatic head turning, ramp tray loading, automatic packing (for 5*6 tray only) & counting

* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Accumulator
  • Automatic head turning
  • Ramp tray loading
  • Automatic packing & counting
    Accumulator
    Automatic head turning

    Designed to connect to the rod conveyor leading from the chicken shed.
    The eggs from the rod conveyor directly flow into the accumulator, the slope of accumulator can be adjusted according to the height of rod conveyor.

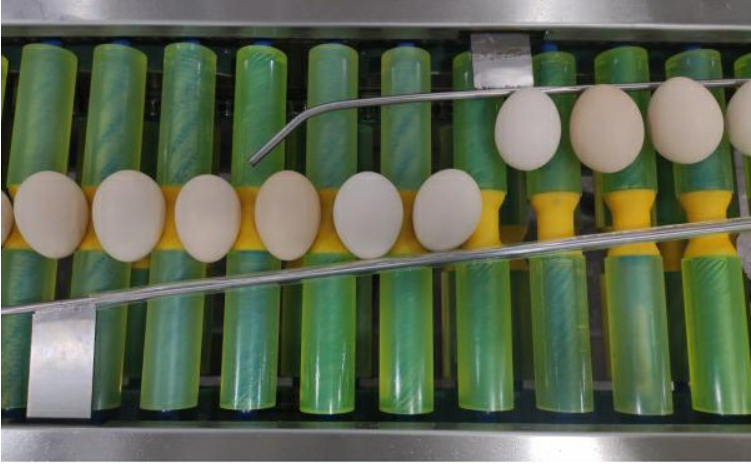

    Automatic head turning
    Automatic head turning

    Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.

    Ramp tray loading

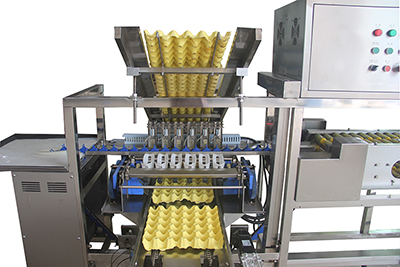

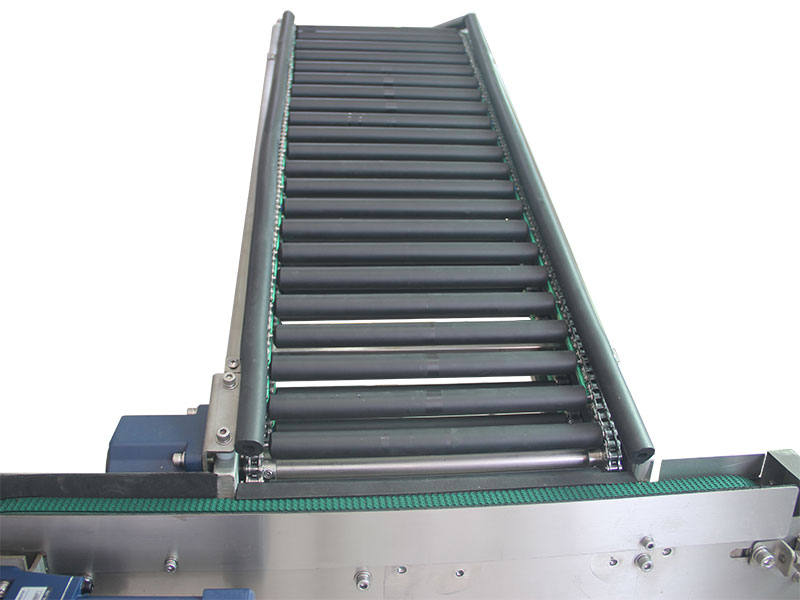

    Ramp tray loading

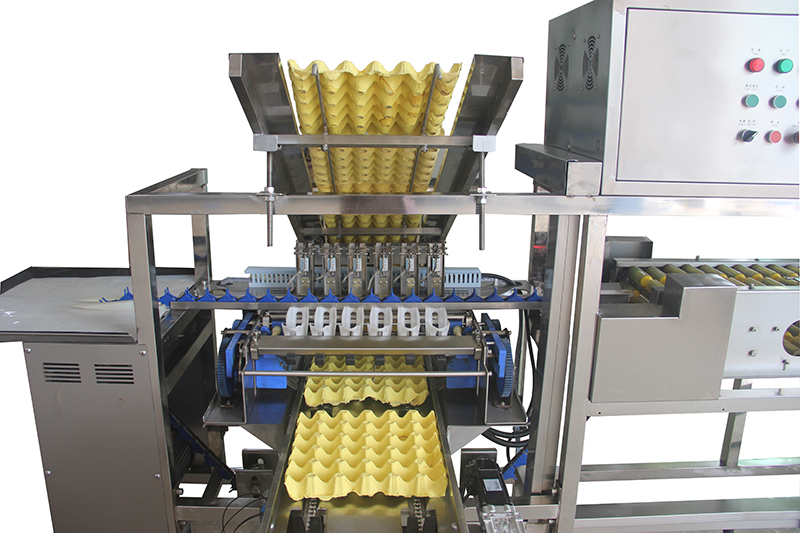

    Empty trays must be manually placed on the ramp, and then the trays will automatically slide down to where the eggs will drop from.

    Auto packing & counting
    Auto packing & counting

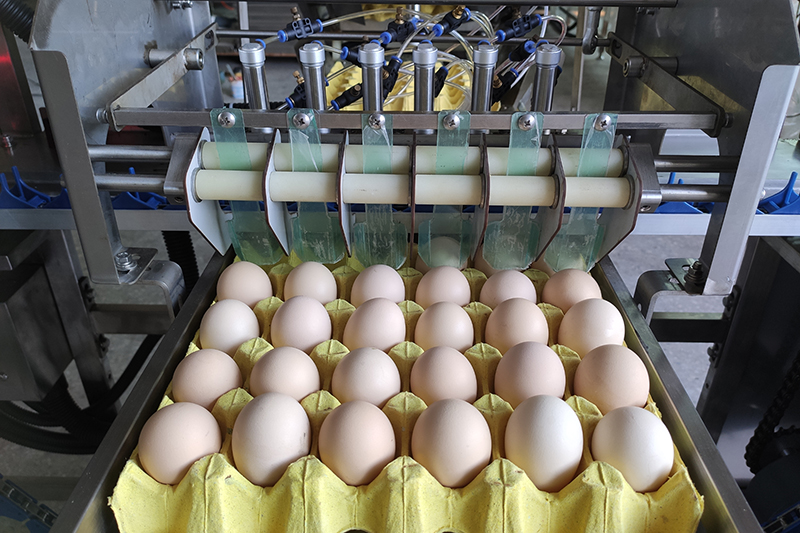

    The egg dropset auto packing system drops the eggs into 5*6 egg tray automatically, the conveyor will transfer the loaded egg tray to the end of it, you can collect the egg trays from there and pack them into the box. It has a counting function as well, you can check how many eggs have been packed.
