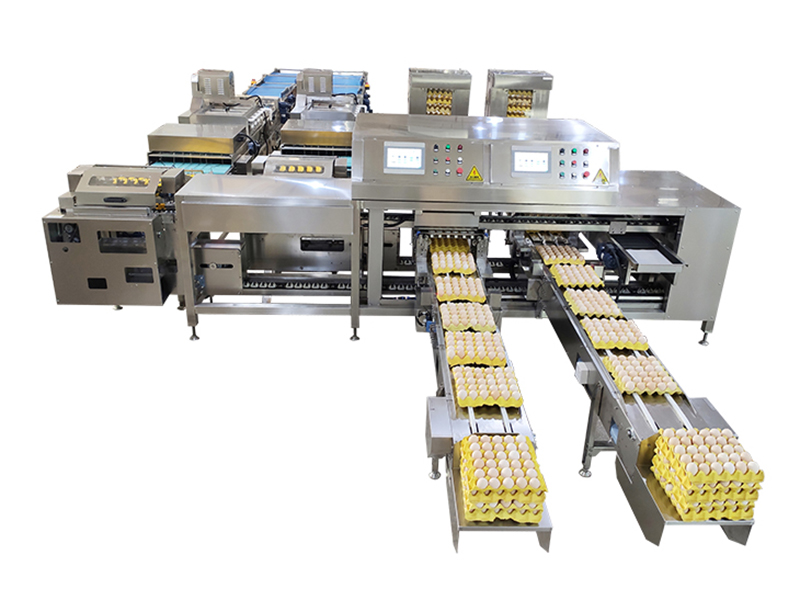

714 Egg Farm Packer (55,000 EGGS/HOUR)

714 Egg Farm Packer
714 Egg Farm Packer 714 Egg Farm Packer 714 Egg Farm Packer

ZENYER 714 egg farm packer with a capacity of 55,000 eggs/hour and is designed to connect to a rod conveyor leading from the chicken shed and pack eggs into 5*6 egg tray automatically. It does NOT have a grading function.

The 714 farm packer includes accumulator, automatic head turning, auto packer (for 5*6 tray only), and optional UV sterilization, candling, dust brushing and egg printer.

Inquiry
Specifications
Product name Egg farm packer
Product code 714
Model ZYZ-2HD6
Capacity 55,000 eggs/hour
Main material Stainless steel
Power* 4.5kW
Voltage* 380V, 50Hz, 3-phase

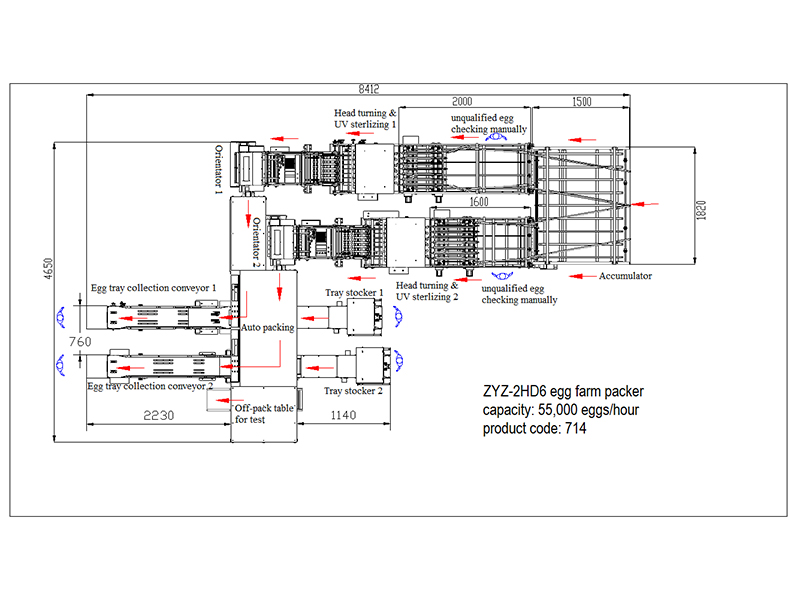

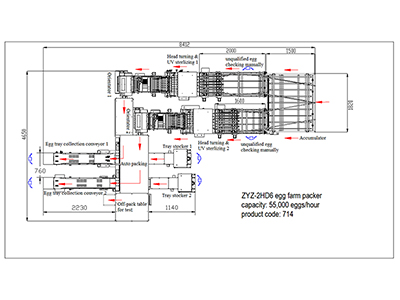

Dimension (L*W*H) 8.4*4.6*1.72 M
Net weight* 1740KG
Gross weight* 2450KG
Function The 714 farm packer includes accumulator, automatic head turning, auto packer (for 5*6 tray only), and optional UV sterilization, candling, dust brushing and egg printer.

* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Accumulator
  • Dust brushing (optional)
  • Automatic head turning & UV sterilization
  • Auto packer (5*6 tray only)
  • Off-pack table
  • Egg printer (optional)

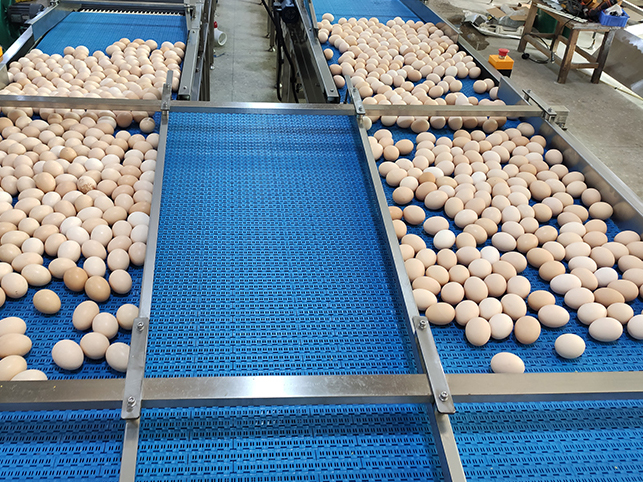

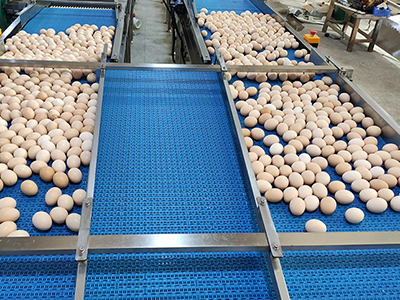

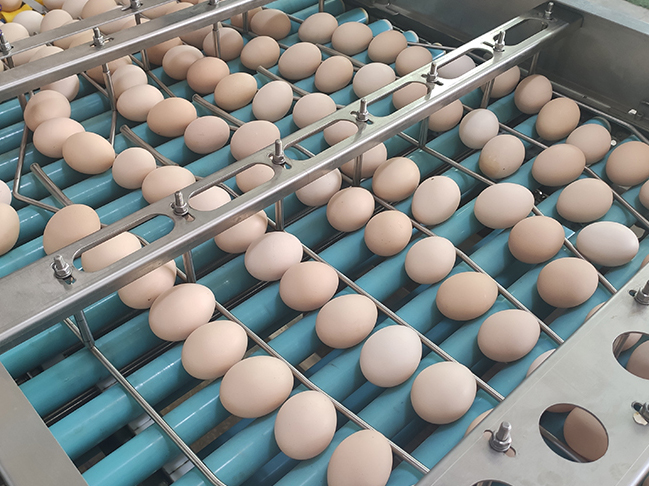

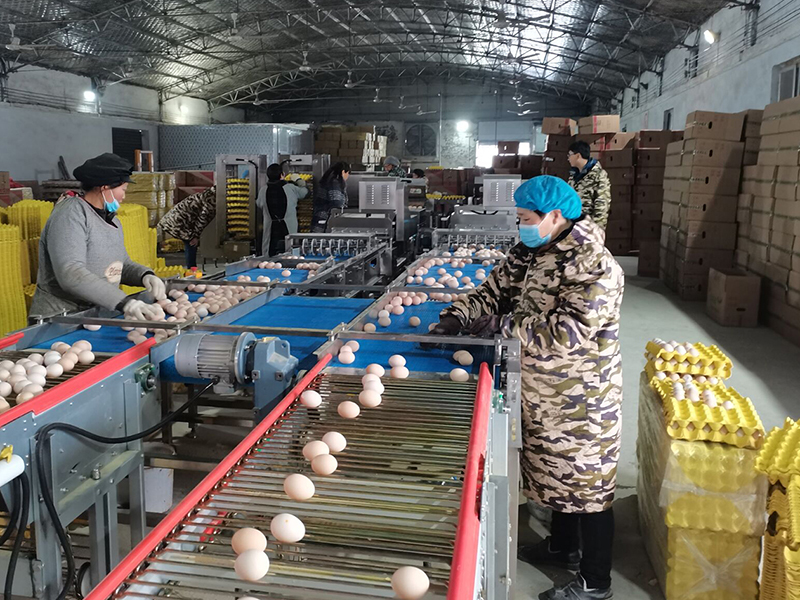

    Accumulator
    • Accumulator
    • Accumulator

    The 2 accumulators connect with a rod conveyor which also connects to the chicken shed. Eggs from the rod conveyor will flow from the chicken shed directly to the accumulators.

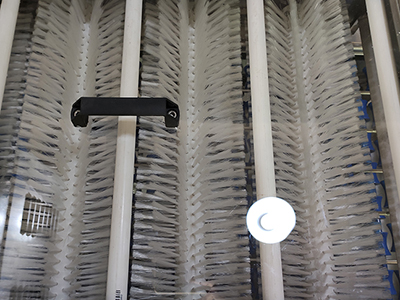

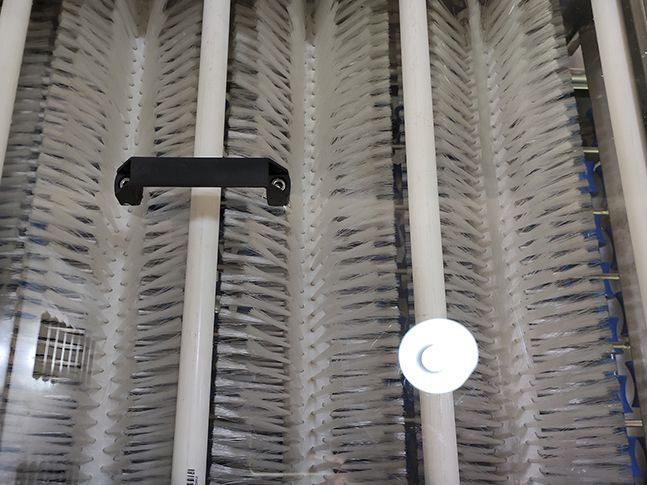

    Dust brushing (optional)
    Dust brushing (optional)

    The dust on the eggs will be swiped off when eggs go through the brushes.

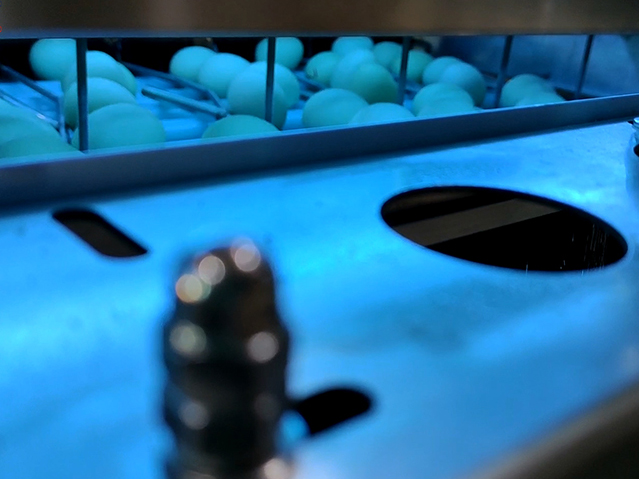

    Automatic head turning & UV sterilizing
    • Automatic head turning & UV sterilizing
    • Automatic head turning & UV sterilizing

    The eggs will then go to the head turning and UV sterilizing section, the head turning makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
    It takes advantage of the UV disinfection system to sanitize egg shells for maximum food security.

    Auto packer (for 5*6 tray only)
    Auto packer (for 5*6 tray only)

    The eggs on the rollers will be sent to orientators, the 2 orientators will catch the coming eggs from the corresponding 2 accumulators, and send them to the next process.
    2 tray stockers are equipped on this type of machine, empty trays need to be manually placed in the stocker, allowing the conveyor of the stocker to transport the empty trays to where the eggs will drop from.
    The egg dropset auto packing system drops the eggs into a 5*6 egg tray automatically.

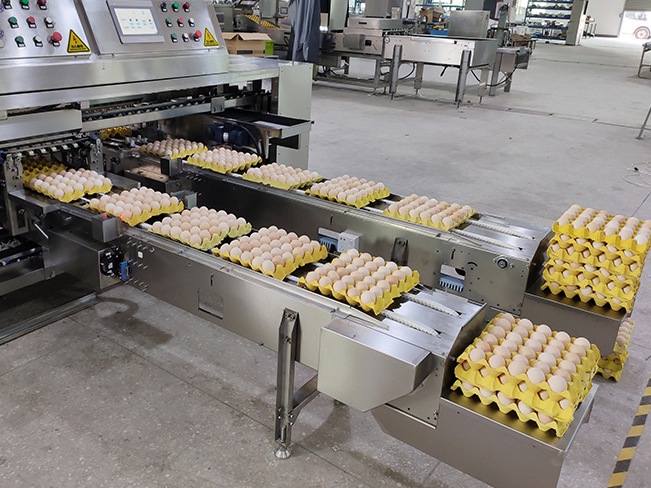

    After automatic packing, the collection conveyor will transport the egg trays to the end of it. Workers collect the egg trays from there and pack them into the box.

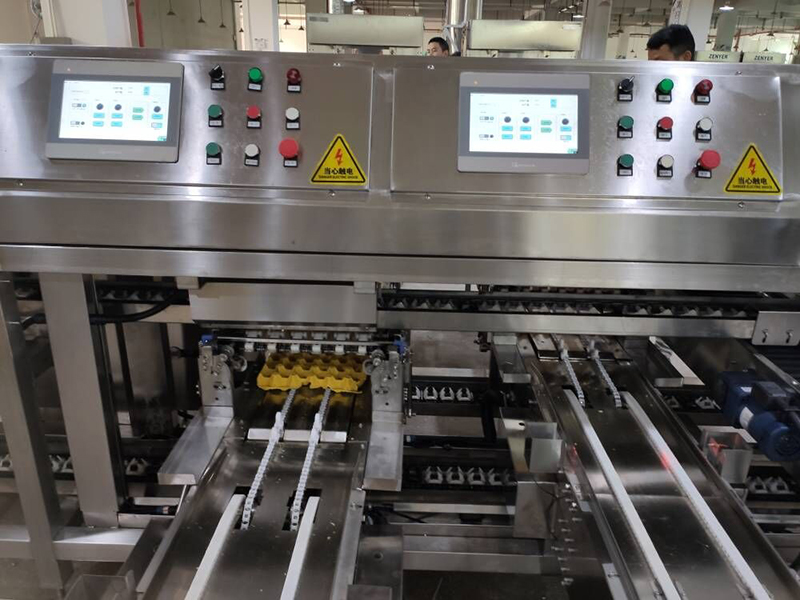

    A control panel with colour touch screen and physical buttons, which is located at the front of each collection conveyor. Workers can operate the machine more easily.

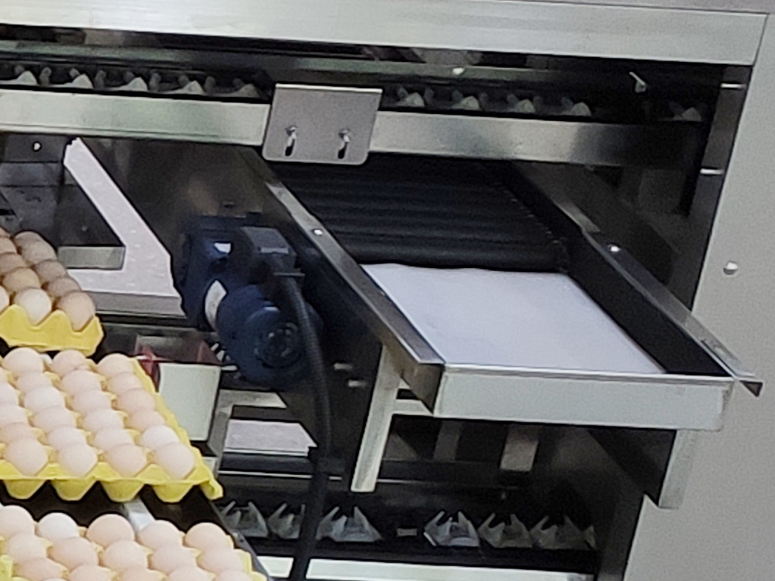

    Off-pack table for test
    Off-pack table for test

    The off-pack table at end of the machine is for egg dropping when testing the machine.

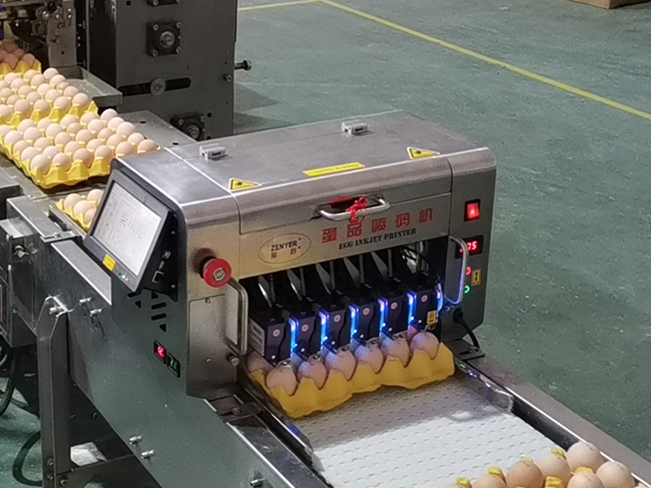

    Egg printer (optional)
    Egg printer (optional)

    You can have a ZENYER 406H egg printer (6-print head) added on the collection conveyor if you want.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
