501A Egg Breaking and Separating Machine

501A Egg Breaking and Separating Machine (3,000EGGS/HOUR)

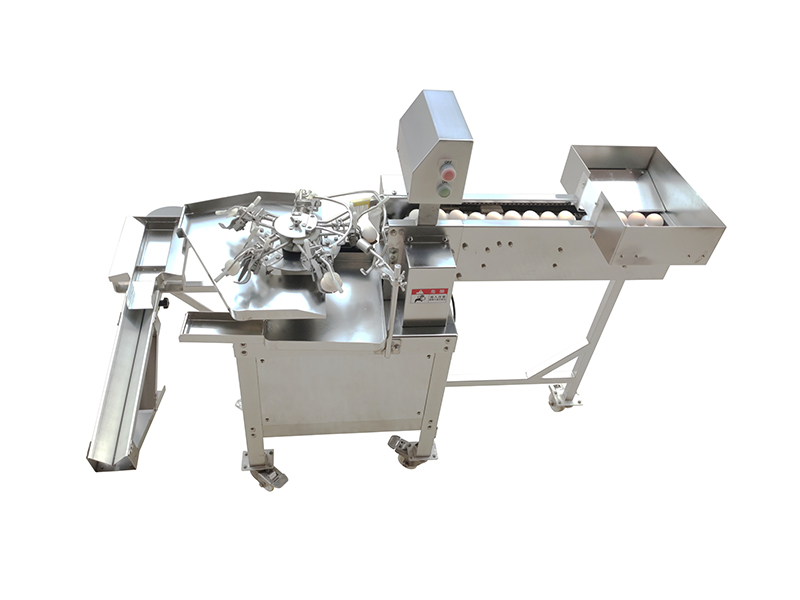

ZENYER 501A egg breaking and separating machine is designed to break eggs and separate yolks, egg whites and eggshells. This machine has a maximum capacity of 3,000 eggs/hour.

This machine has a compact structure and less storage space, and is equipped with 5 locking casters on the bottom to allow for easier movement. This breaker has a high production rate with only a 90W energy consumption during operation. The entire body is made of 304 stainless steel, ensuring it meets all rules and standards for food processing.

Inquiry

This egg separator is easy to clean and simple to use. It can be used individually offline, or paired with ZENYER 200AS egg washers or 200A egg washers for a higher production efficiency assembly line.

Specifications

Product name	Egg separator
Product code	501A
Model	ZYD-PS-5
Capacity	3,000 eggs/hour
Breaking units	5
Materials	Stainless steel
Power*	90 W
Voltage*	220V, 50HZ, single phase
Dimension(L×W×H)	1.38×0.85×1.18 M
Function	Breaking, separating eggshells, yolks and egg whites

Operation Flow

Feeding conveyor
Spinning plate with 5 robotic arms
egg yolk & white separating trough

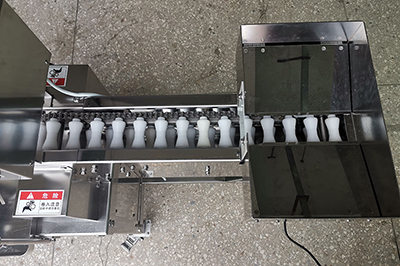

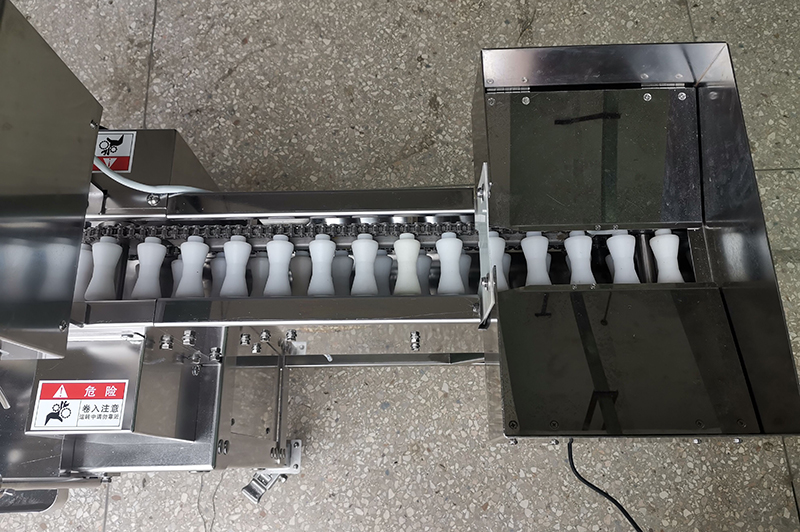

Egg feeding conveyor

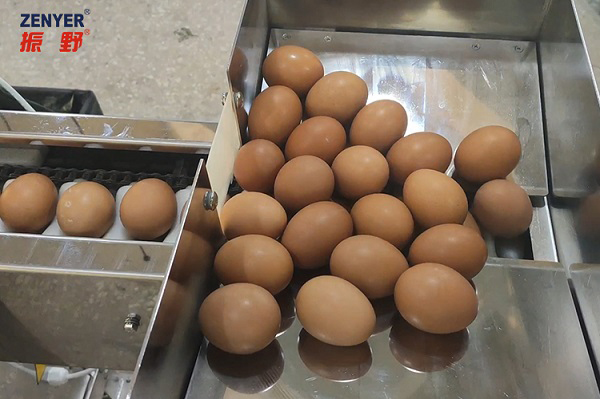

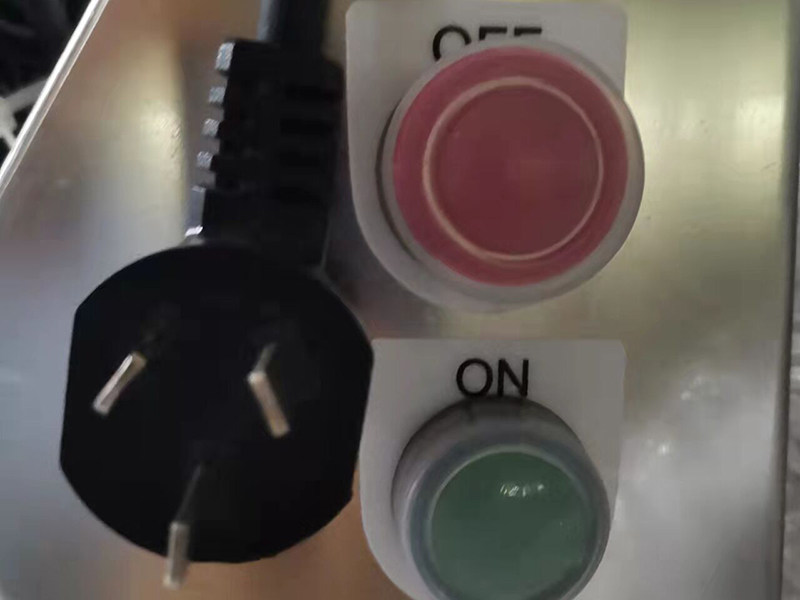

Only need to place the eggs into the square trough of feeding conveyor, and press ON button, the eggs will roll onto the roller of feeding conveyor automatically.

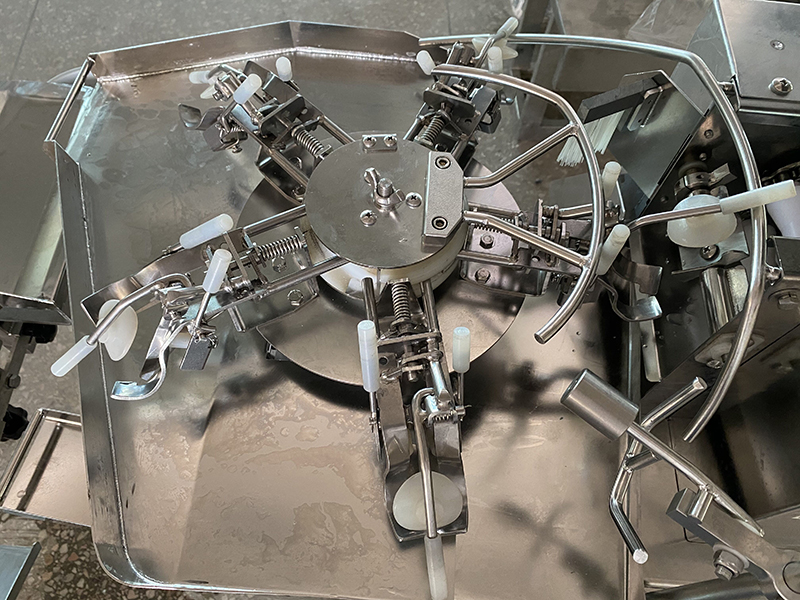

Egg breaking station with 5 robotic arms

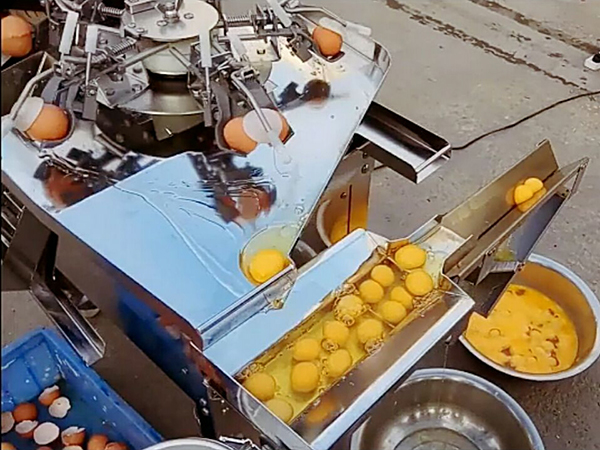

The egg breaking station equips 5 robotic arms with the special knives, the feeding conveyor sends eggs to the robotic arms, the arms will catch any rolling eggs and cut the shell with the knives.

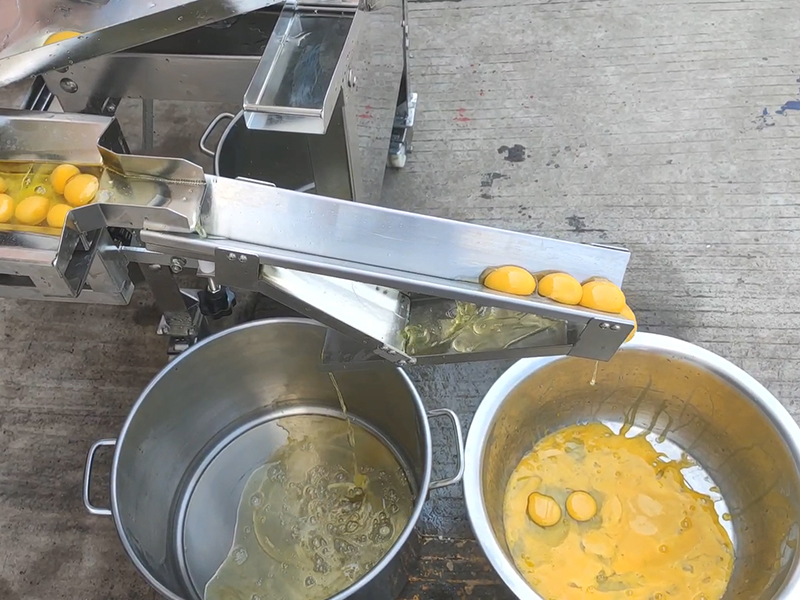

Liquid egg trough

After being split by the cracking system, eggshells will be disposed, and the liquids (not separated) will flow into a shallow trough, you can decide to separate the egg whites and yolks through a separation trough.

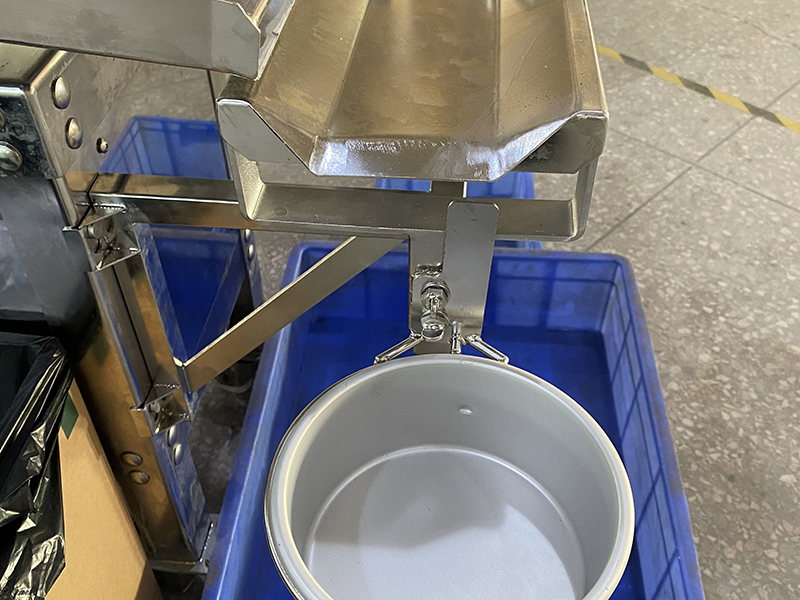

There is a bowl beside the shallow trough to pick up any bad yolks if there are any in the shallow trough.
