200A Egg Washer (3,000 EGGS/HOUR)

200A Egg Washer
200A Egg Washer 200A Egg Washer 200A Egg Washer 200A Egg Washer 200A Egg Washer

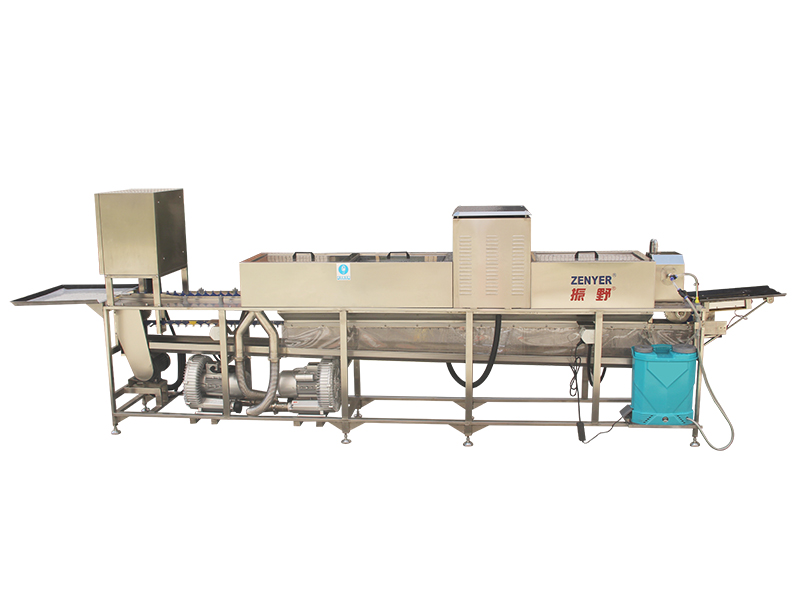

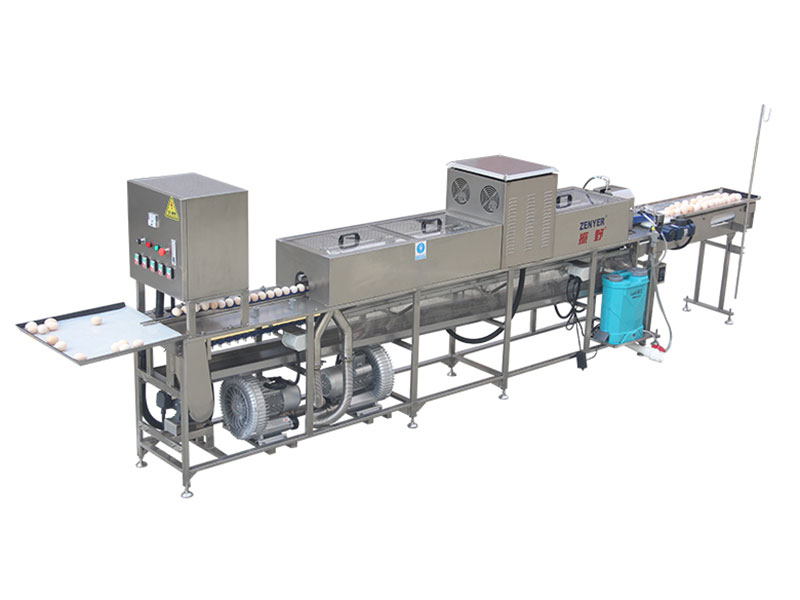

The ZENYER 200A egg washer has the capability of processing 3000 dirty eggs in one hour and can also be attached with a ZENYER 101A egg grader or 101B egg grader, for a higher production efficiency assembly line.

This machine works efficiently and enables simple operation. Only 2 workers are required (one for loading and candling while the other for collection), this egg cleanser is perfectly suited for small-sized cage-free farms.

Inquiry
Specifications
Product name Egg cleaning machine
Product code 200A
Model ZYX-J1-2
Capacity 3,000 eggs/hour
Material Stainless steel
Power* 5.8 KW
Voltage* 220V, 50HZ, single phase or 380V, 50HZ, three phase
Dimension(L×W×H) 4.6*0.6*1.55M
Net weight* 350KG
Gross weight* 550KG
Function Ramp loading, candler, sanitizer sprayer, brush washing, drying, manual collection table, optional egg printer, accumulator and vacuum egg lifter

Notes

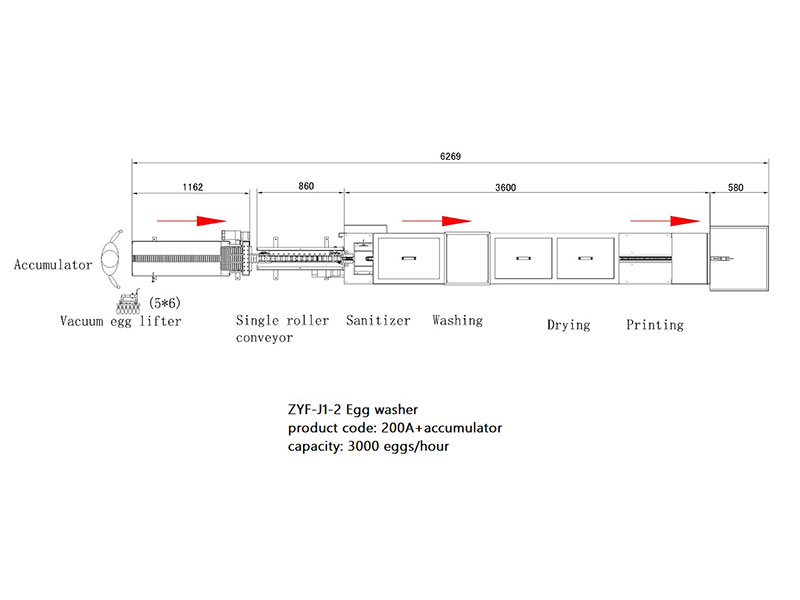

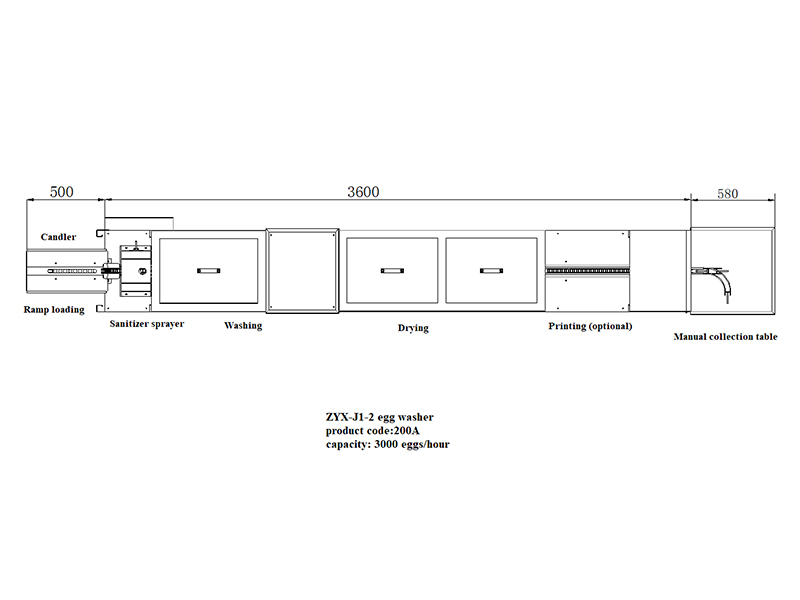

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Manual loading & candling
  • Accumulator (optional)
  • Sanitizer
  • Washing
  • Drying
  • Printing
  • Manual collection
    Manual loading & candling
    Manual loading & candling

    Workers place eggs on the loading ramp.

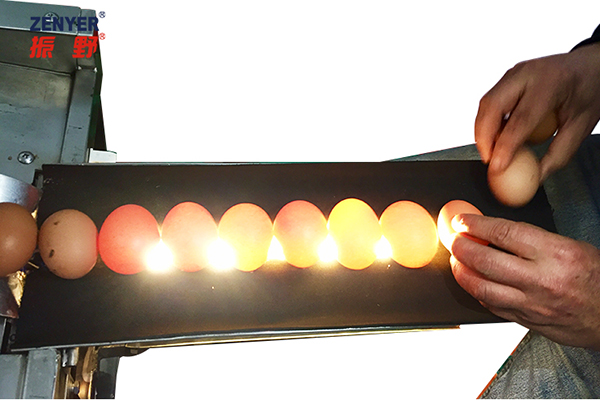

    Eggs will run through LED lights for candling purposes before dropping into the egg washer, meaning workers can easily pick out any unqualified eggs such as leaking or cracked ones.

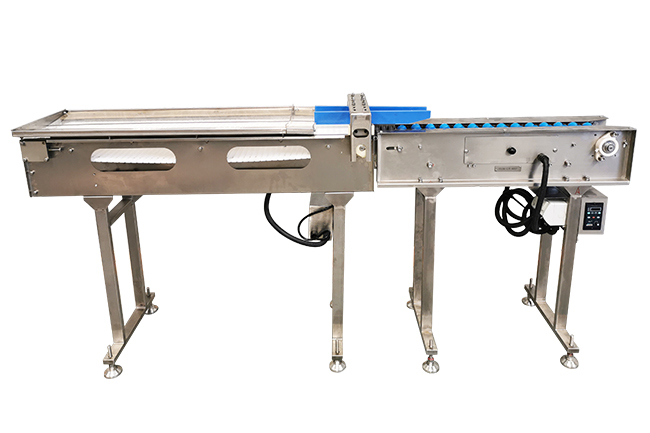

    Vacuum egg lifter & accumulator (optional)
    • Manual loading & candling
    • Manual loading & candling

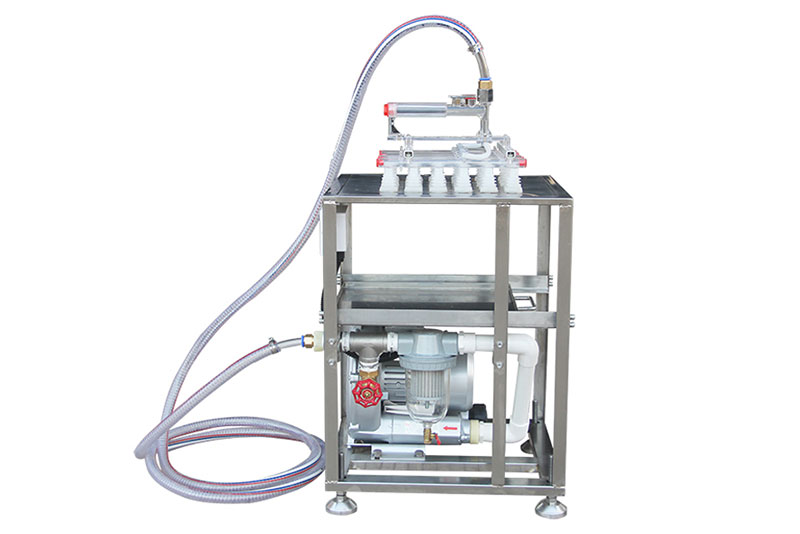

    Eggs are vacuum lifted and loaded onto the accumulator (with the single roller conveyor) using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the feeding unit of 200A egg washer.

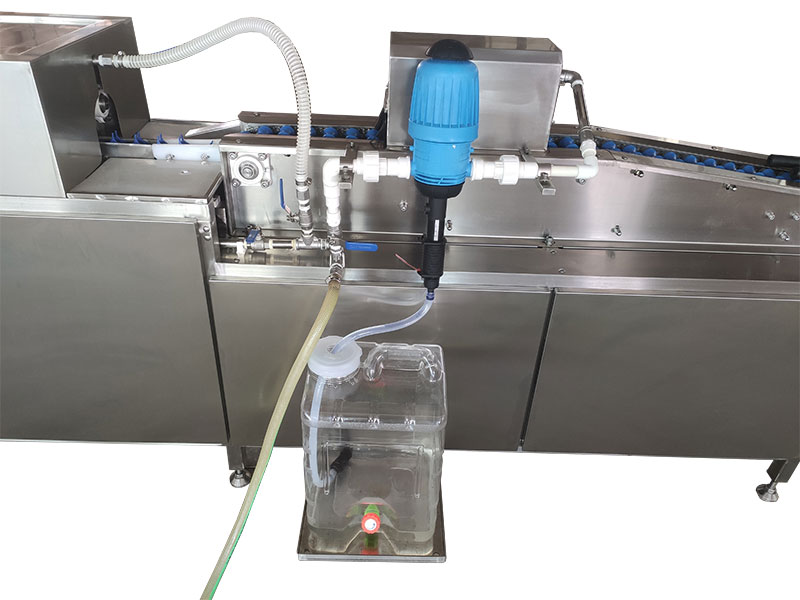

    Sanitizer sprayer
    Sanitizer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

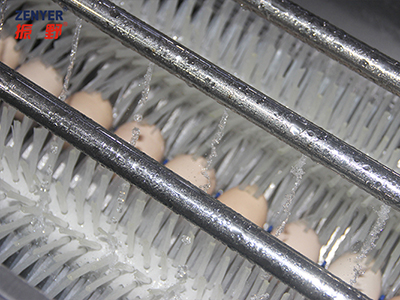

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

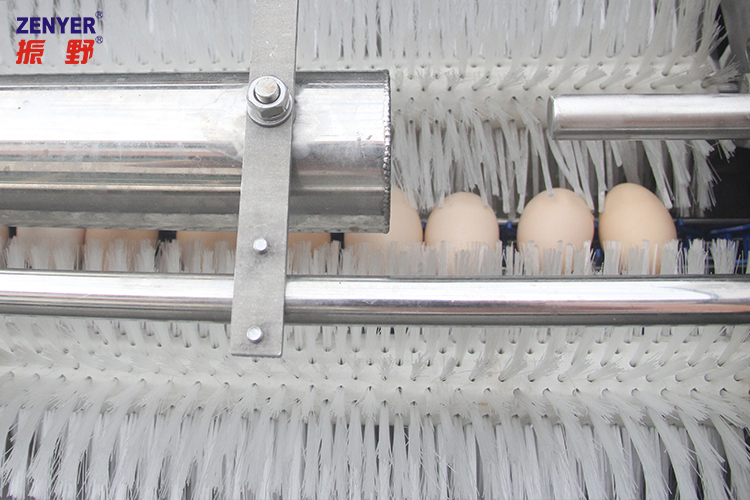

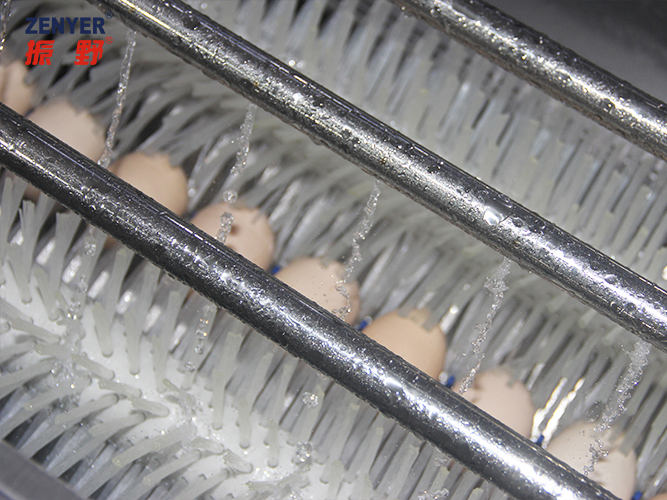

    Eggs are effectively cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

    Drying
    • Manual loading & candling
    • Manual loading & candling

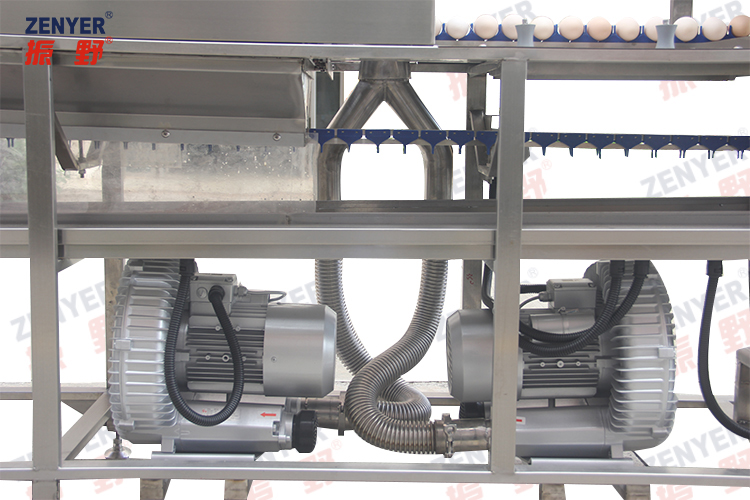

    Eggs are perfectly dried by dry brush and strong air.

    Printing (Option)
    Printing

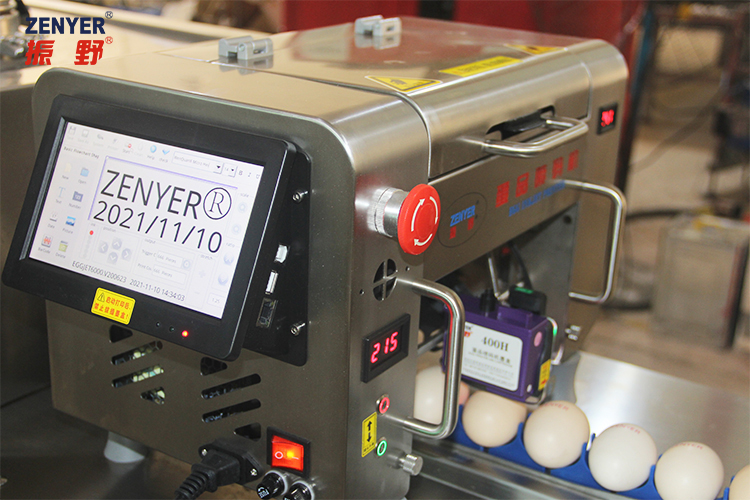

    ZENYER 401H single-head printing machine could be attached at the end of the egg washer, you can print your farm name, logo, date, best before date, etc. on eggs.

    Manual collection
    Printing

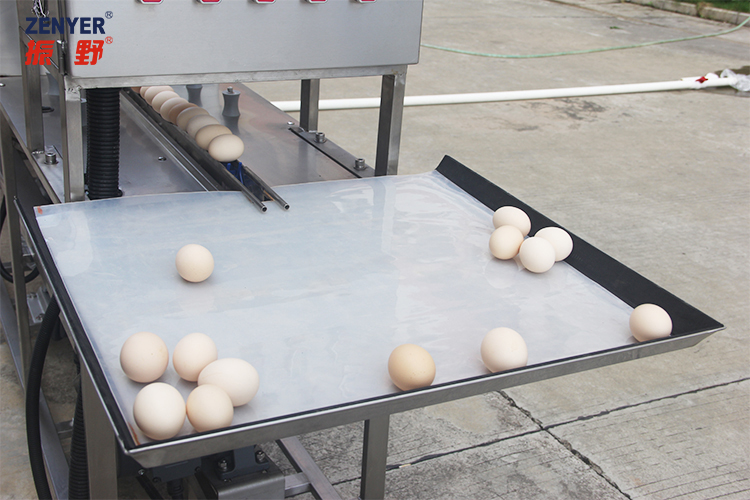

    Washed eggs will roll onto the collection table and can be placed into trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
