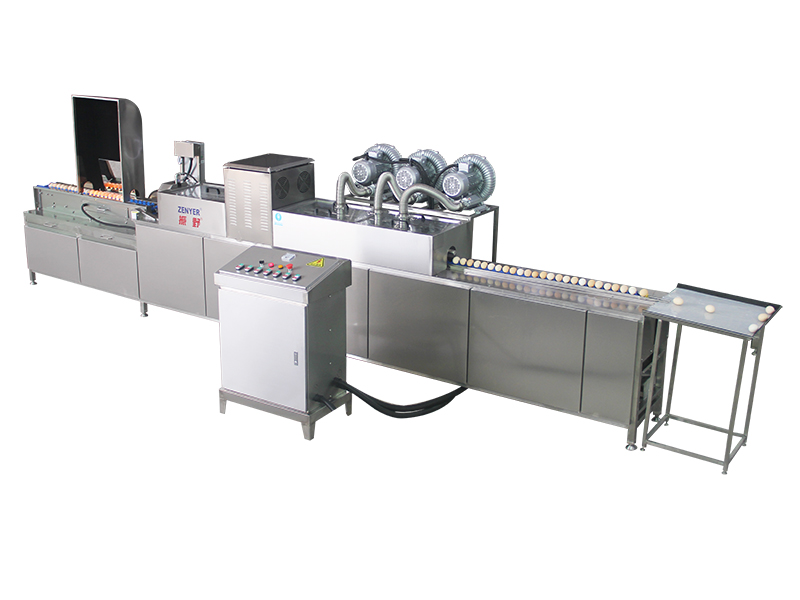

201A Egg Washer (5,000 EGGS/HOUR)

201A  Egg Washer
201A  Egg Washer 201A  Egg Washer 201A  Egg Washer 201A  Egg Washer 201A  Egg Washer 201A  Egg Washer

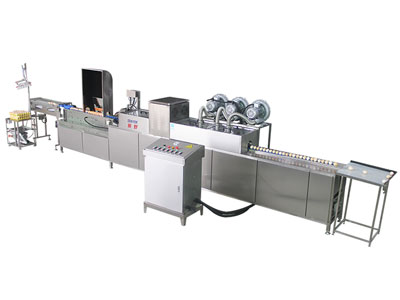

The ZENYER 201A egg washer can process 5000 eggs each hour and satisfies egg cleaning requirements for medium-sized cage-free farms. This model is capable of loading, candling, sanitizer spraying, brushing, drying steps and selective printing services upon request.

The 201A egg washer is very simple to use, you can also combine it with the ZENYER 102A or 102B egg grader for a higher production efficiency assembly line.

Inquiry
Specifications
Product name Egg cleaning machine
Product code 201A
Model ZYX-JS1-2
Capacity 5,000 eggs/hour
Material Stainless steel
Power* 7.9KW
Voltage* 220V, 50HZ, single phase 380V, 50HZ, three phase
Dimension(L×W×H) 8.1*1.25*1.55 M
Net weight* 900KG
Gross weight* 750KG
Function Manual loading, sanitizer sprayer, washing, drying, optional accumulator & candling, vacuum egg lifter, egg printer, manual packing lane with UV

Notes

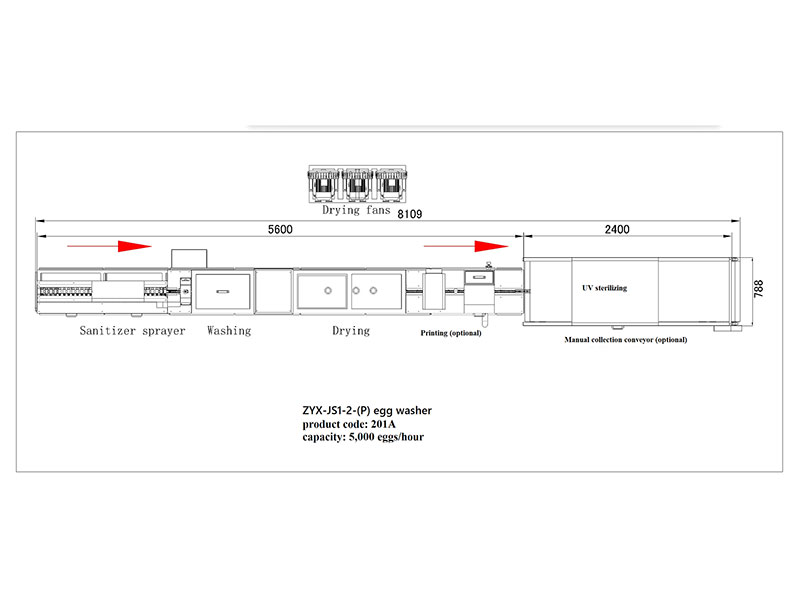

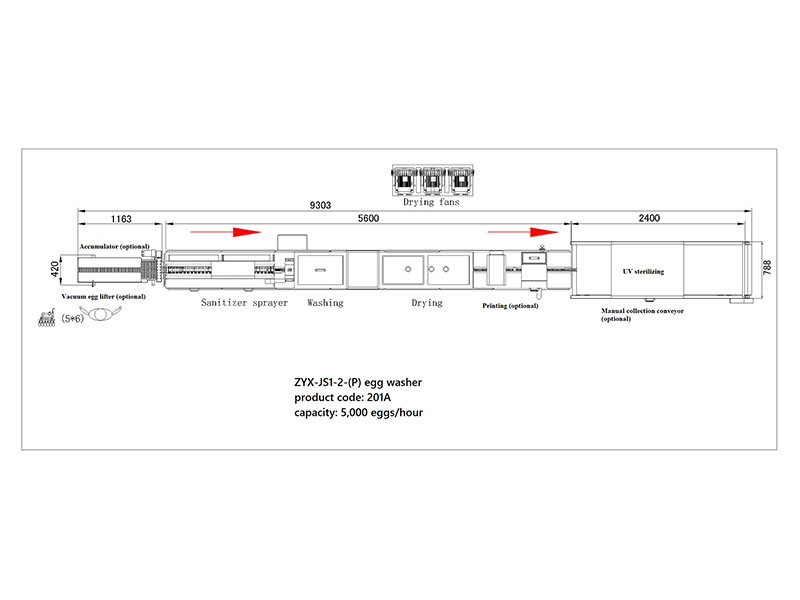

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Manual loading
  • Vacuum egg lifter & accumulator (optional)
  • Candling (optional)
  • Sanitizer sprayer
  • Washing
  • Drying
  • Printing (optional)
  • Manual packing lane with UV sterilizing (optional)
    Manual loading
    Manual loading

    Workers place eggs on the single row loading conveyor manually.

    Vacuum egg lifter & accumulator (optional)
    • 201A  Egg Washer
    • 201A  Egg Washer

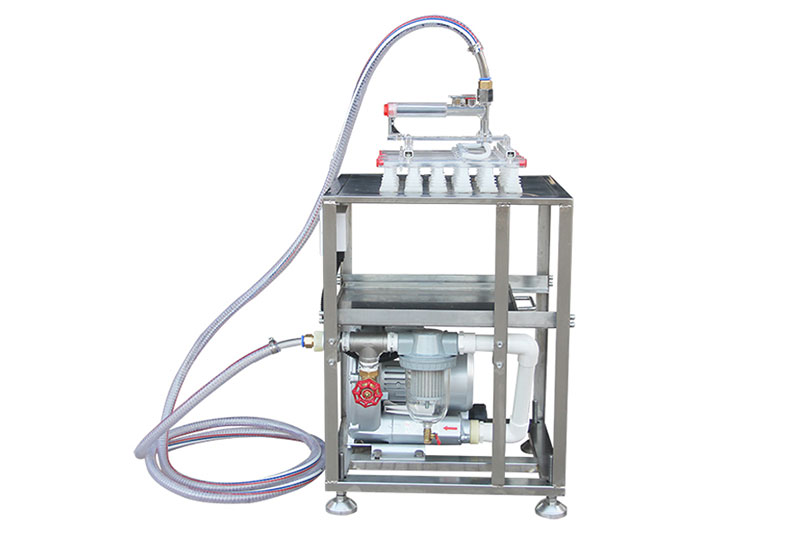

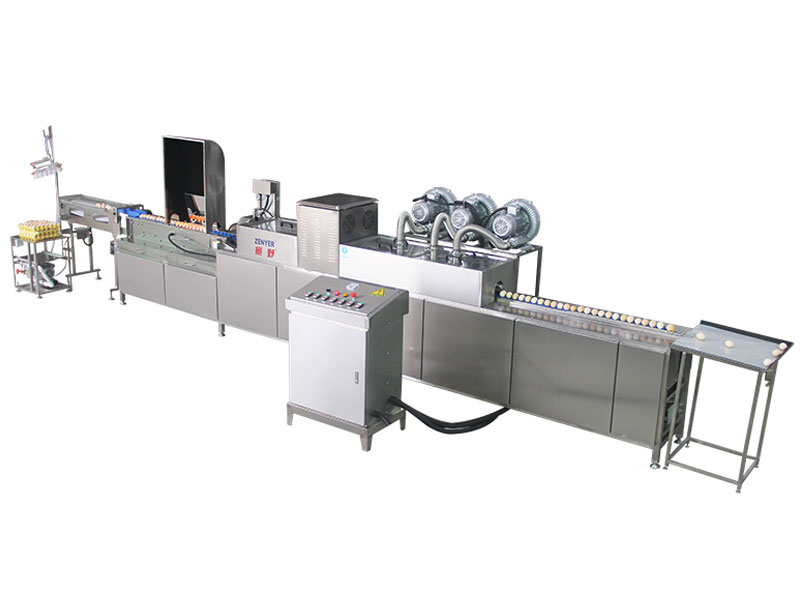

    Eggs are vacuum lifted and loaded onto the 604AS accumulator using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the single row conveyor of 201A egg washer.

    Candling(optional)
    Candling(optional)

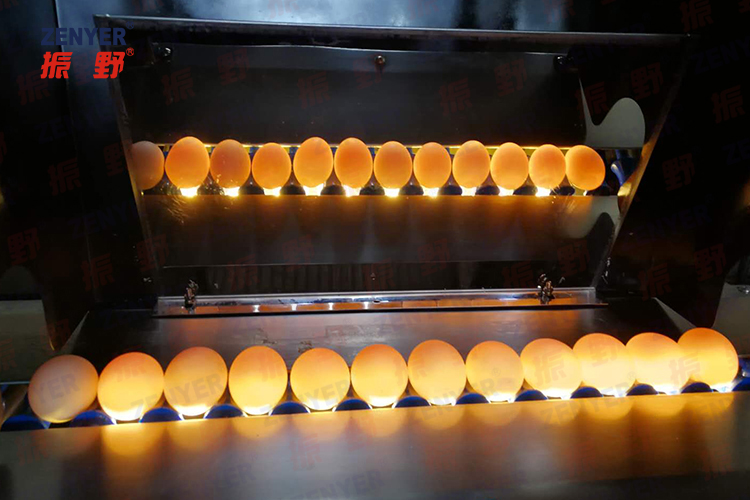

    Eggs will run through LED lights for candling purposes before dropping into the egg washer, meaning workers can easily pick out any unqualified eggs such as leaking or cracked ones.

    Sanitizer sprayer
    Sanitizer sprayer

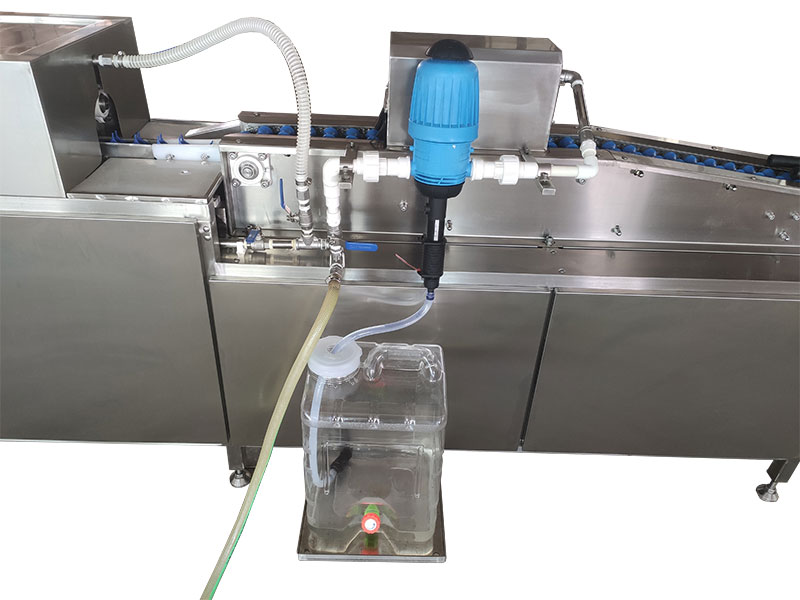

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

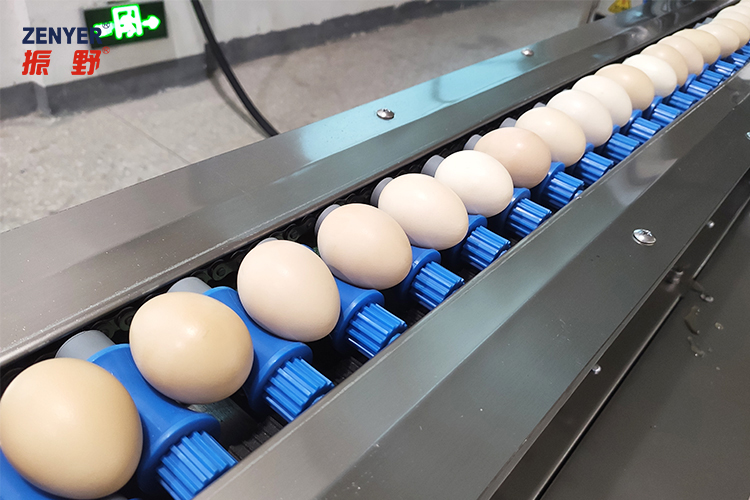

    Eggs are well cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

    Drying
    Drying

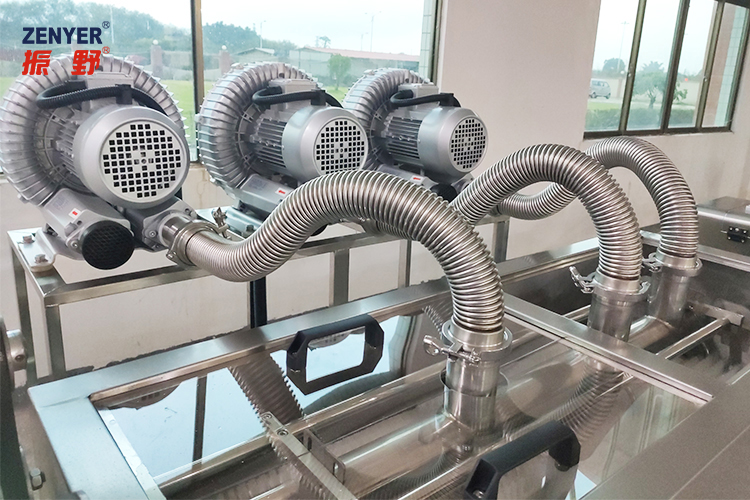

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

    Printing (Option)
    Printing (Option)

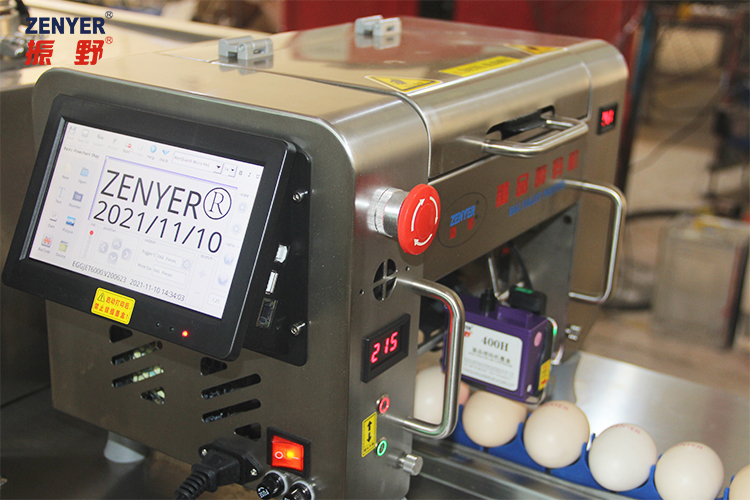

    The ZENYER 401H single-head printing machine could be attached at the end of egg washer, you can print your farm name, logo, date, best before date, etc. on eggs.

    Manual packing lane with UV sterilizing (optional)
    Printing (Option)

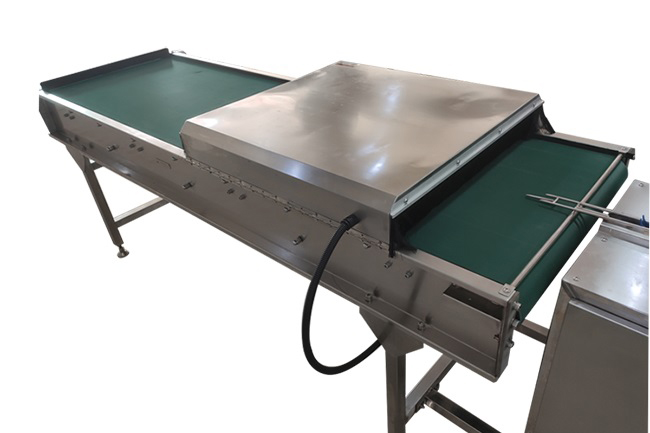

    The UV sterilization unit can be installed on the manual collection conveyor. It takes advantage of the UV disinfection system to sanitize egg shells for maximum food security.

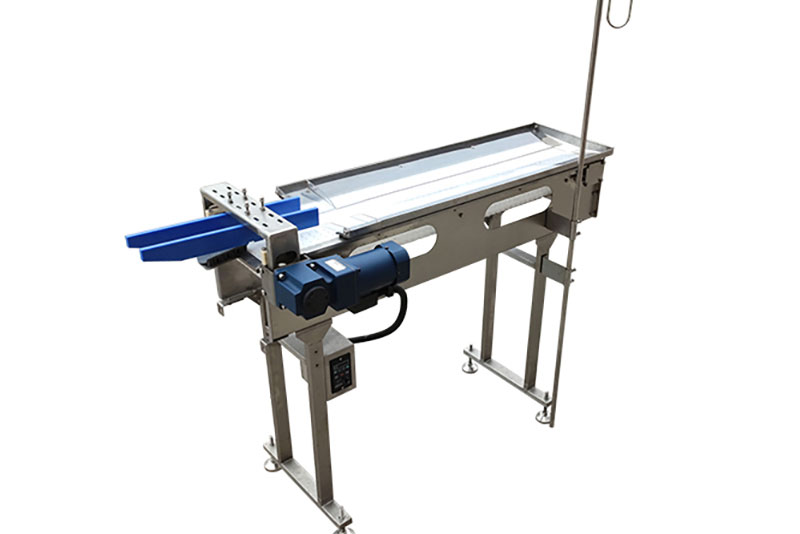

    Washed eggs will roll onto the conveyor (motor drive) and will be placed into trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
