102B Egg Grader (5,400 EGGS/HOUR)

102B  Egg Grader
102B  Egg Grader 102B  Egg Grader 101A Egg Grader 101A Egg Grader

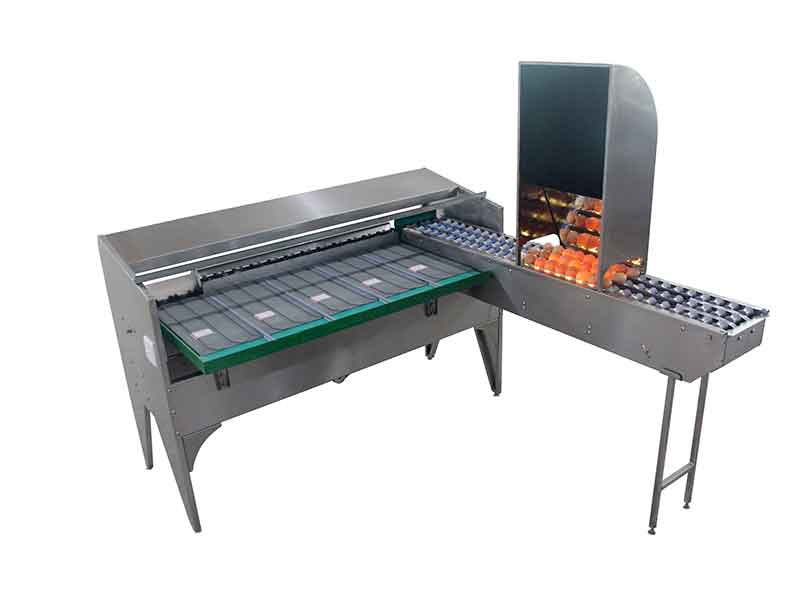

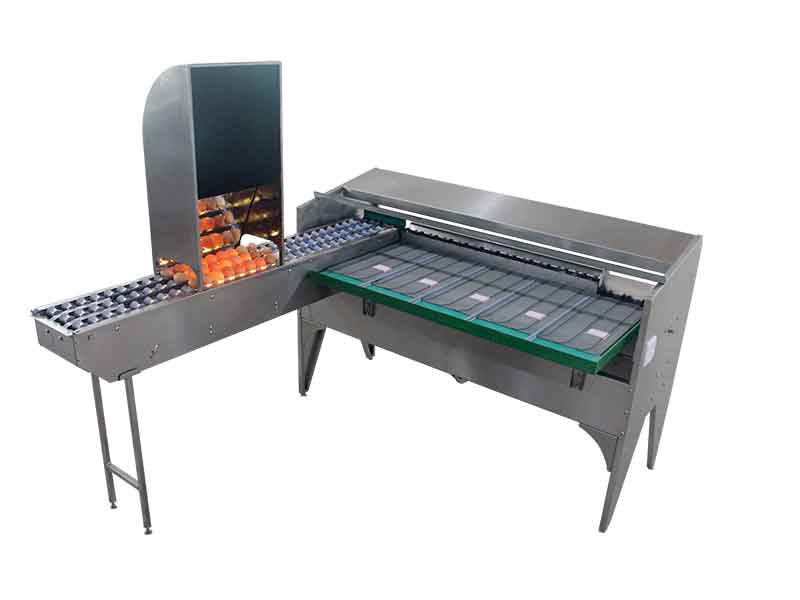

The ZENYER 102B egg grader is made of stainless steel. This machine grades eggs into 5 sizes, with an accuracy of within ±1 gram and has the capacity of 5,400 eggs/hour. It can also be attached to a 201A egg washer to form an egg processing line.

ZENYER provides different egg grader models with egg feeding unit on either left or right side.

Inquiry
Specifications
Commodity Egg grading machine
Product code 102B

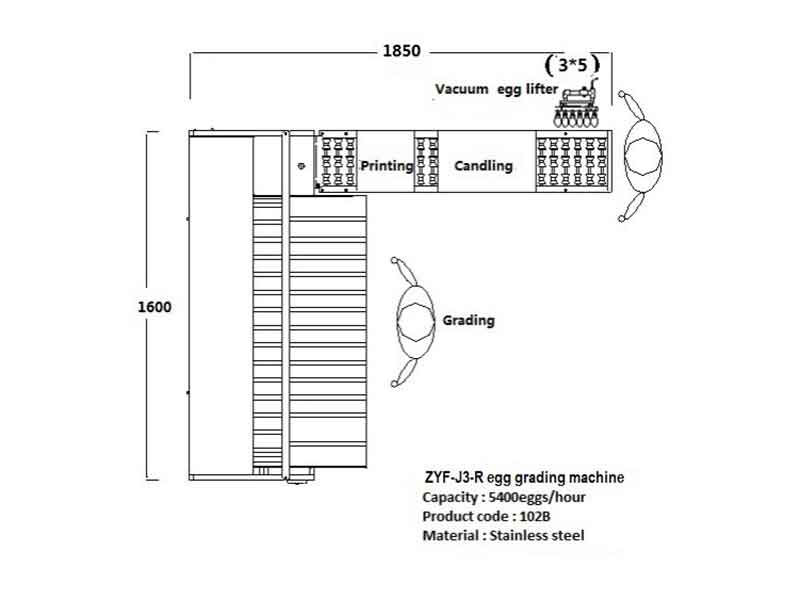

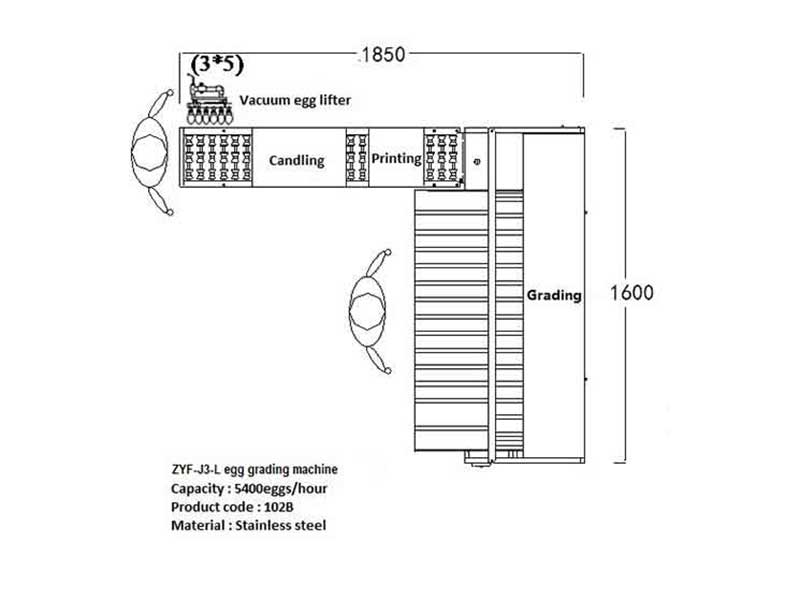

Type ZYF-J3-L(R)
Capacity 5,400 eggs/hour
Material Stainless steel
Precision ±1 gram
Grade* 5
Power* 227W
Voltage* 220V, 50HZ, Single phase
Dimension (L*W*H) 1.85 *1.6 * 1.8 M
Net weight* 220KG
Gross weight* 300KG
Function Egg grading & candling
Operation Flow
  • Egg loading
  • Candling
  • Egg printing (Optional)
  • Grading
  • Manual collection table

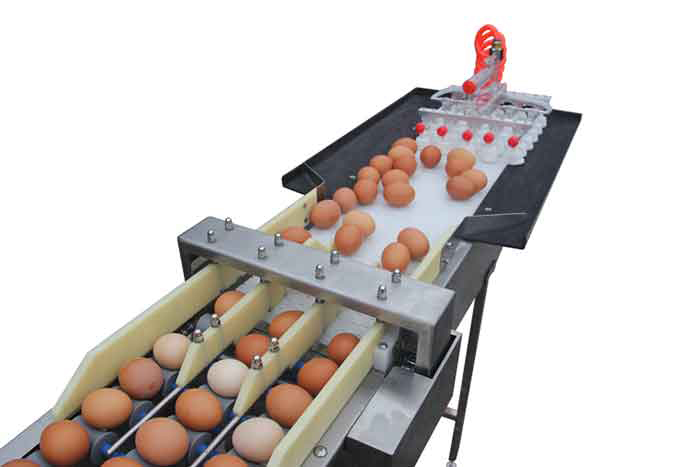

    Egg loading
    • Egg loading
    • Egg loading
    • Egg loading

    -Place eggs on the feeding unit manually.

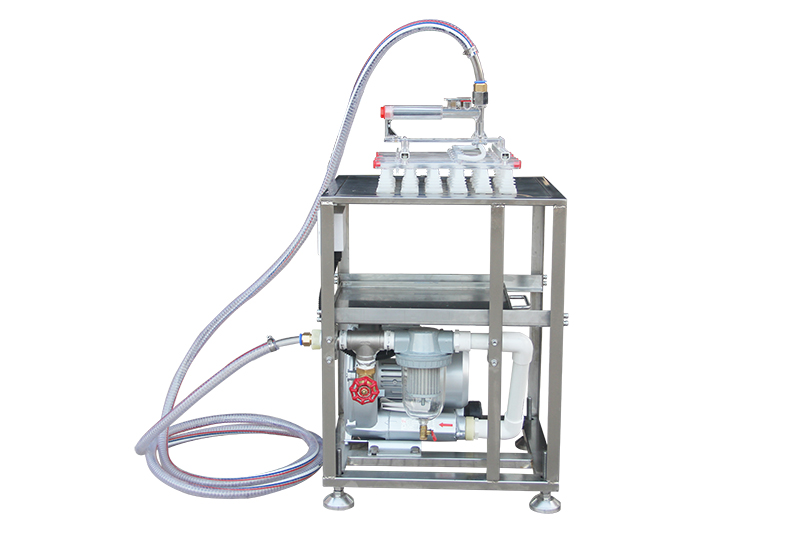

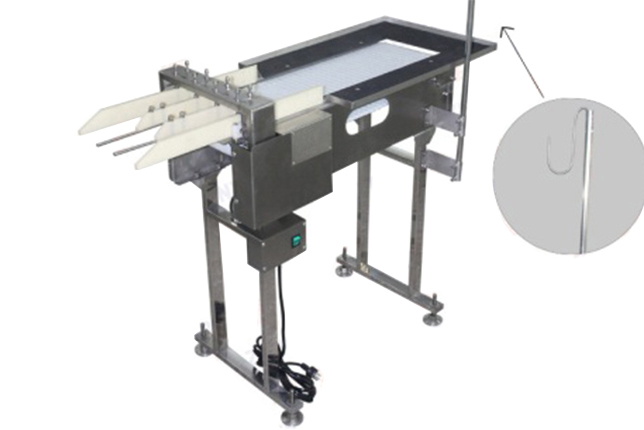

    -Or connect ZENYER 604A accumulator and use 602 vacuum egg lifter to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 3 rows and transferred into the feeding unit.

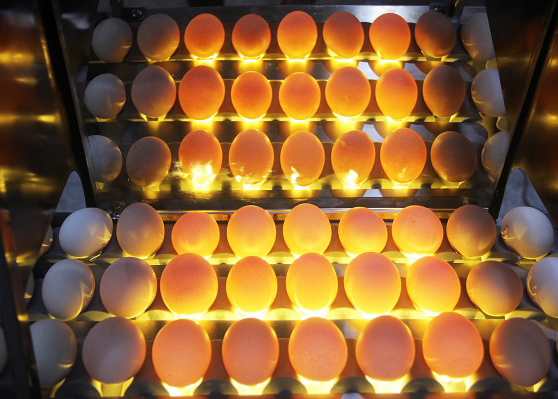

    Candling
    Candling

    Eggs are transported to the candling unit through the roller of feeding unit. You can check for any leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 102B egg grader is also equipped with a stainless-steel candling cover and a mirror for better candling results.

    Egg printing (Optional)
    Egg printing (Optional)

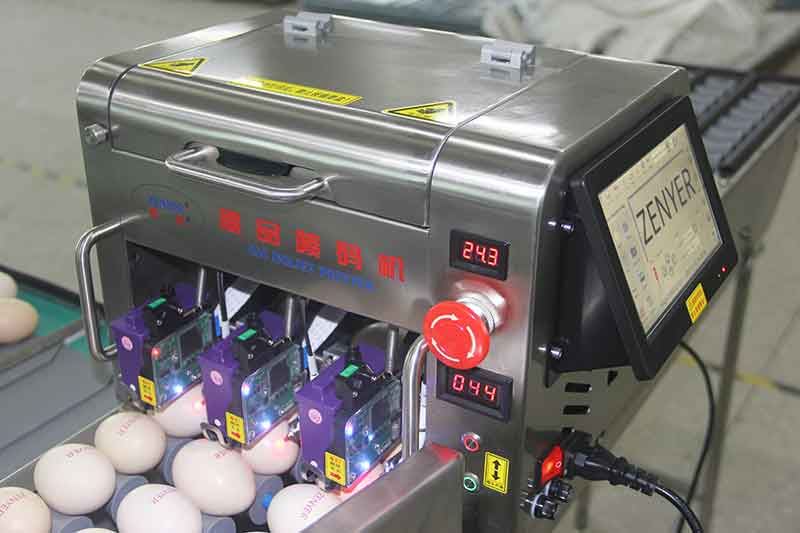

    403H egg printer (3-print head) is an optional attachment to print the company name and logo, date and Julian date, etc. on eggs.

    Grading
    Grading

    Eggs are weighed and graded into 5 grades.

    Manual collection table
    Manual collection table

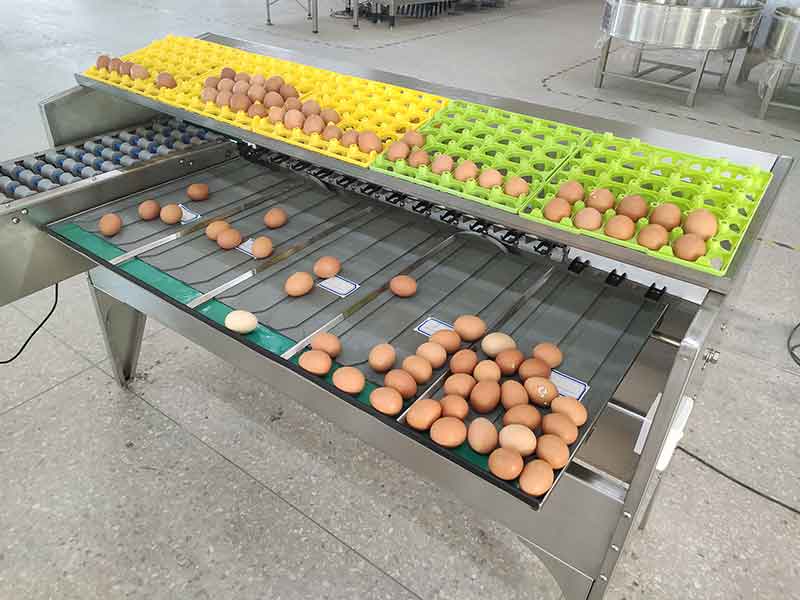

    Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
