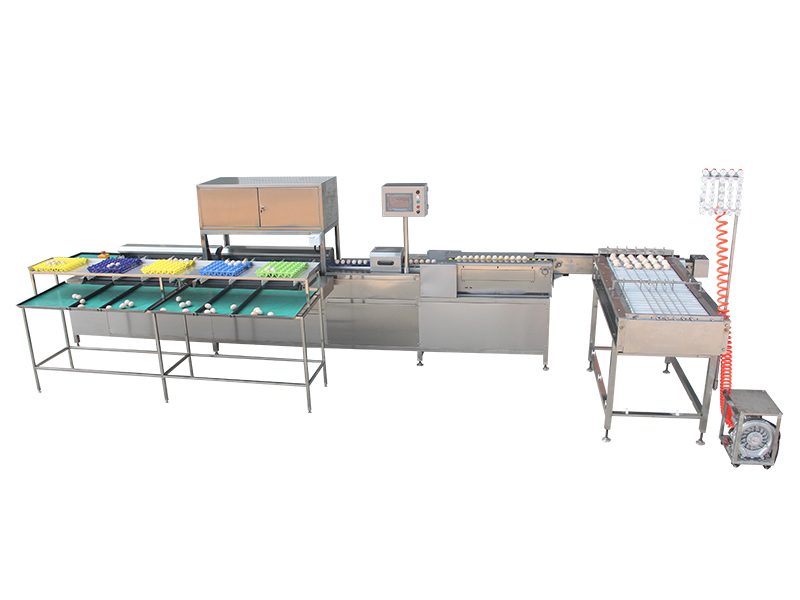

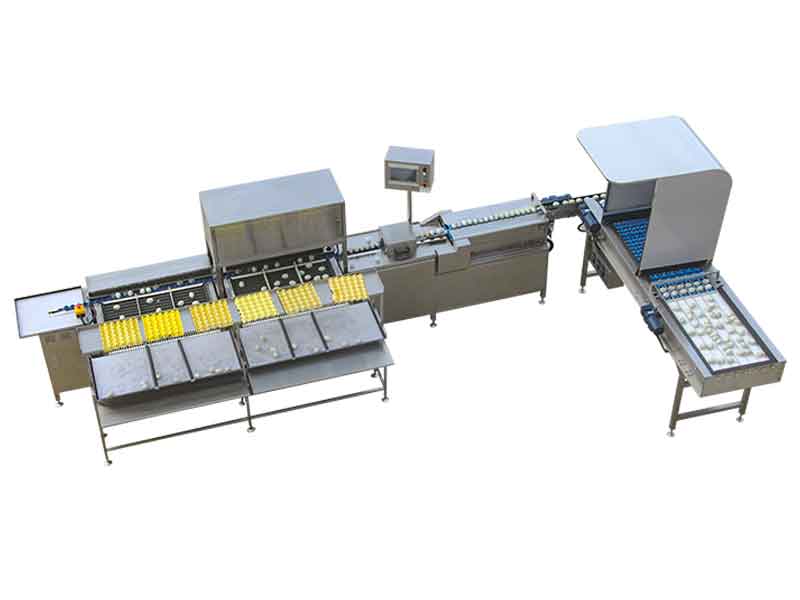

104B Egg Grader (10,000 EGGS/HOUR)

104B type Egg Grader
104B type Egg Grader 104B type Egg Grader 104B type Egg Grader 104B type Egg Grader

The ZENYER 104B egg grader is made of high-quality stainless steel for great durability. This egg grading machine is featured with a digital touchscreen and PLC control system. It sorts eggs into 6 grades. Eggs are weighed by electronic scale with accuracy within ±1 gram and a capacity of 10,000 eggs/hour.

You could also attach a 202A egg washer to form an egg processing line with the same capacity of 10,000 eggs/hour to perform egg cleaning as well.

Inquiry
Specifications
Name Egg grader
Product Code 104B
Model ZYF-DS1-C
Material Stainless steel
Capacity 10,000 eggs/hour
Accuracy ±1 gram
Grade 6
Feeding lines 6
Power 1.1KW
Voltage 220V-240V, single phase, 50HZ OR 380V-415V, three phases, 50HZ

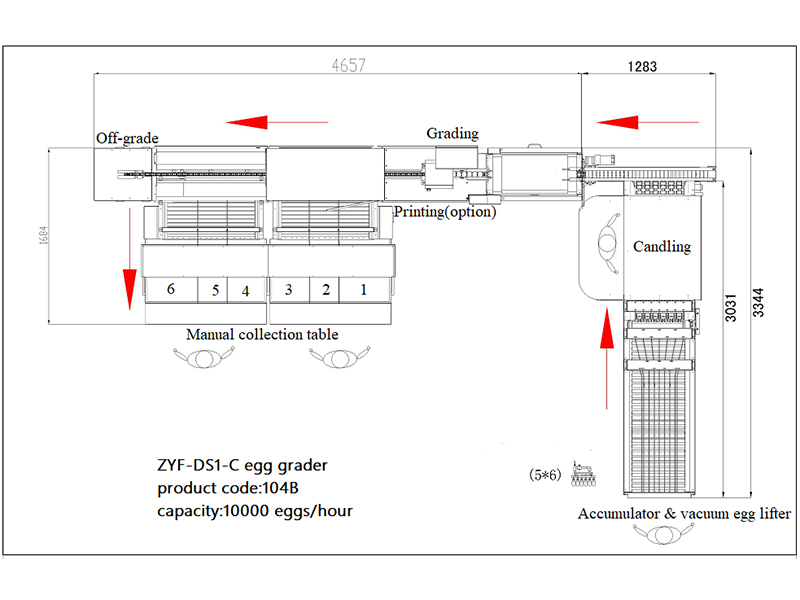

Dimension (L*W*H) 5.94*3.3*2 M
Net weight 550KG
Gross weight 750KG
Function Vacuum egg lifter & Accumulator (includes candling), printing(option), grading & counting, manual collection table
Operation Flow
  • Vacuum egg lifter & accumulator (includes candling)
  • Egg printing (optional)
  • Grading (electronic sensor weighing) & counting
  • Manual collecting

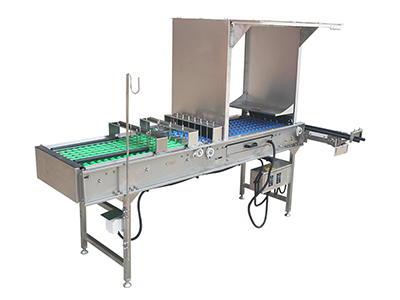

    Vacuum egg lifter & accumulator (includes candling)
    • Vacuum egg lifter & accumulator (includes candling)
    • Vacuum egg lifter & accumulator (includes candling)
    • Vacuum egg lifter & accumulator (includes candling)

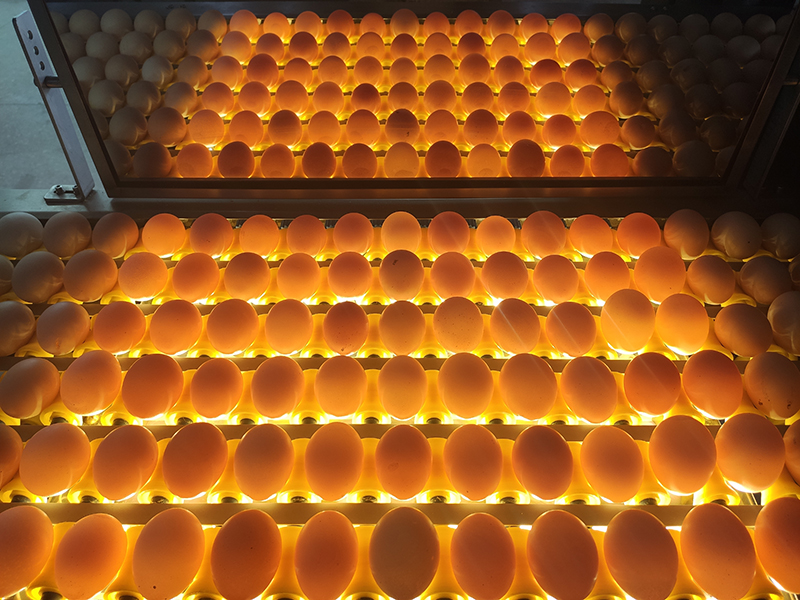

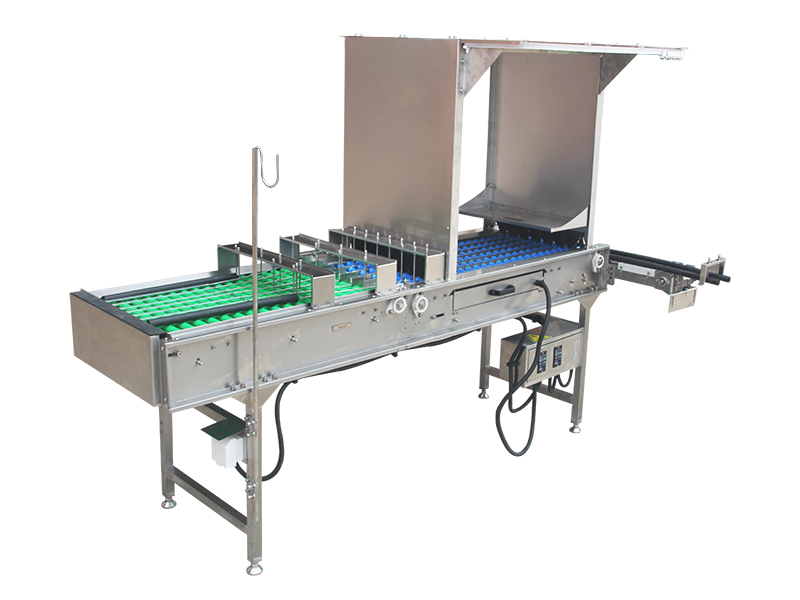

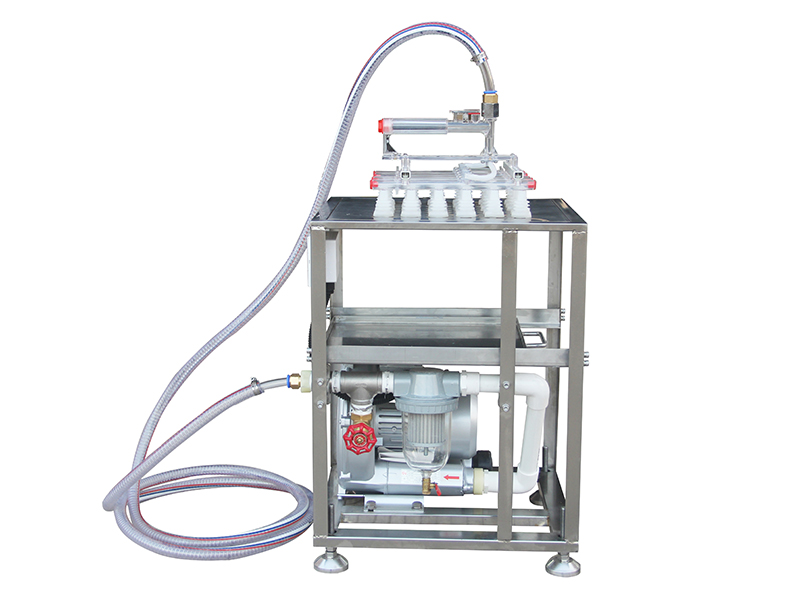

    Eggs are vacuum lifted and loaded onto the 605A accumulator by using the 602 vacuum egg lifter. This egg accumulator features candling to check leaking, dirty or cracked eggs. Then direct 6 lanes of eggs into 1 lane and transport them to the grading system.
    It is also equipped with a stainless-steel candling cover and a mirror for better candling inspection.

    Egg printing (optional)
    Egg printing (optional)

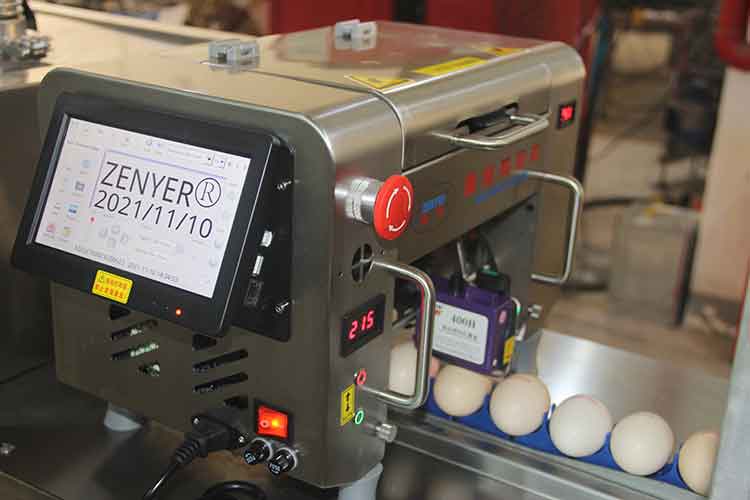

    ZENYER 401H egg printer (single print head) is an optional attachment to print the company name and logo, date and Julian date, etc. on eggs.

    Grading (electronic sensor weighing) & counting
    • Vacuum egg lifter & accumulator (includes candling)
    • Vacuum egg lifter & accumulator (includes candling)

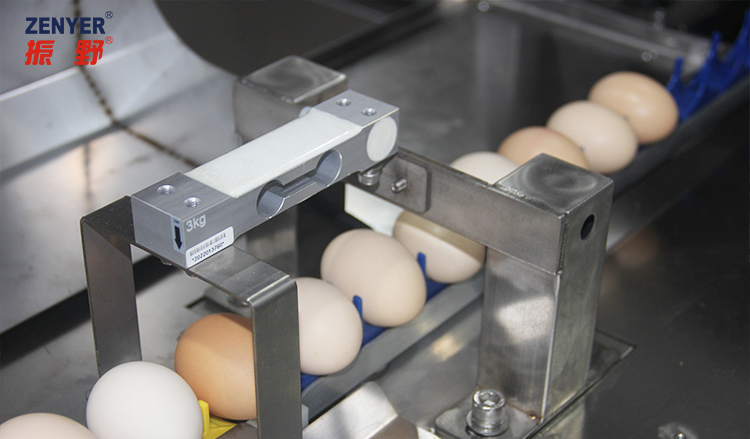

    Eggs are weighed electronically and graded into 6 grades.

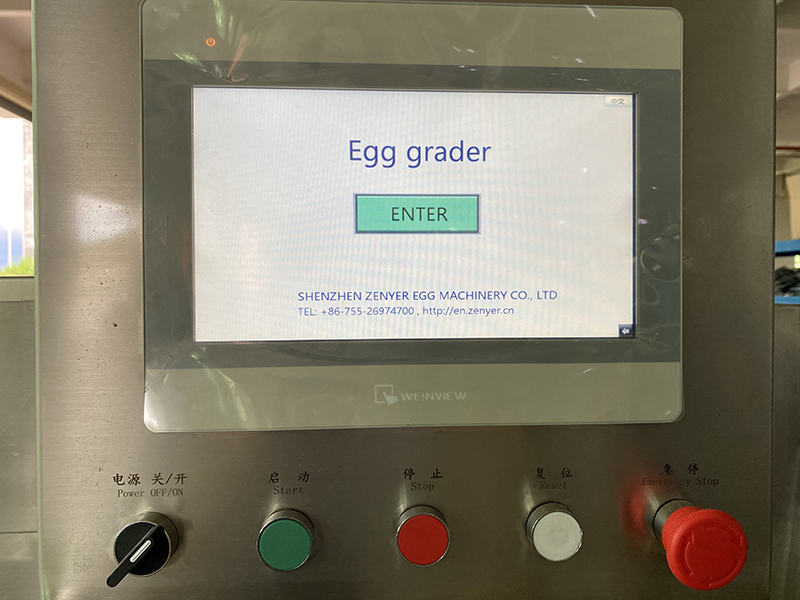

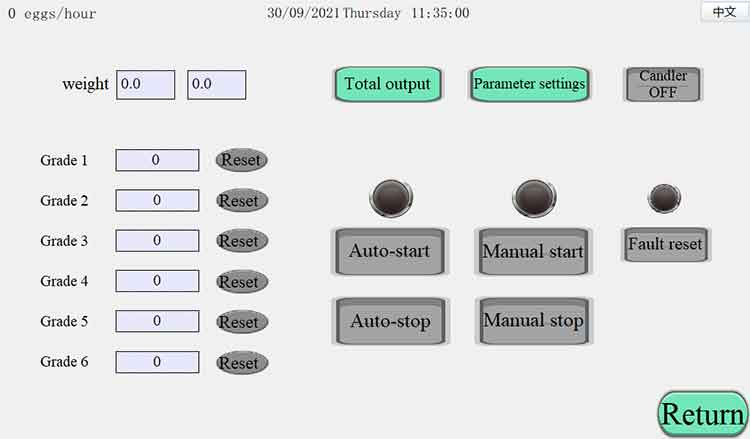

    The 104B egg grader is equipped with a control panel with a color touchscreen and physical buttons as well, you can set the grading specification and calibrate the grading accuracy through the touchscreen. It has a self-diagnosis system, which diagnoses any malfunctions that may occur.
    It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.

    Manual collecting
    Manual collecting

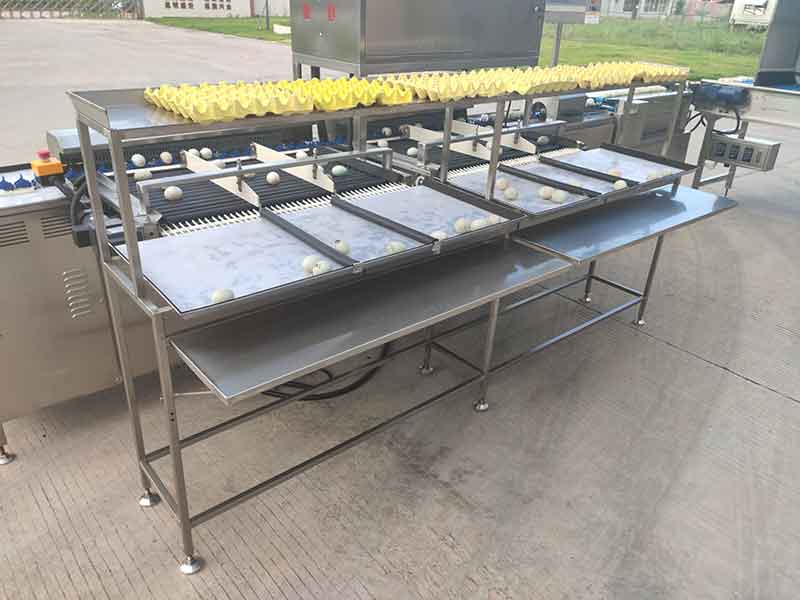

    Manual collection table

    Graded eggs will be dropped onto the sponge rollers, the rollers will transport the eggs to the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
