101A Egg Grader

101A Egg Grader (4,000 EGGS/HOUR)

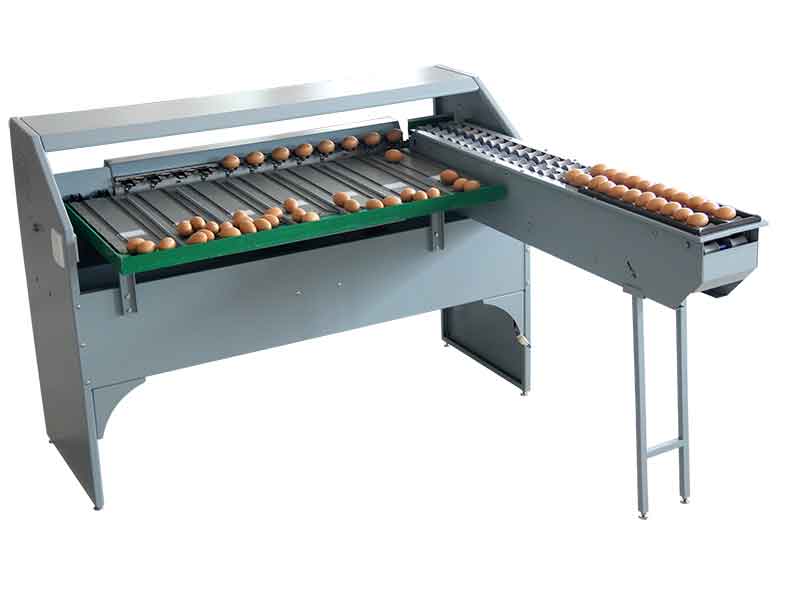

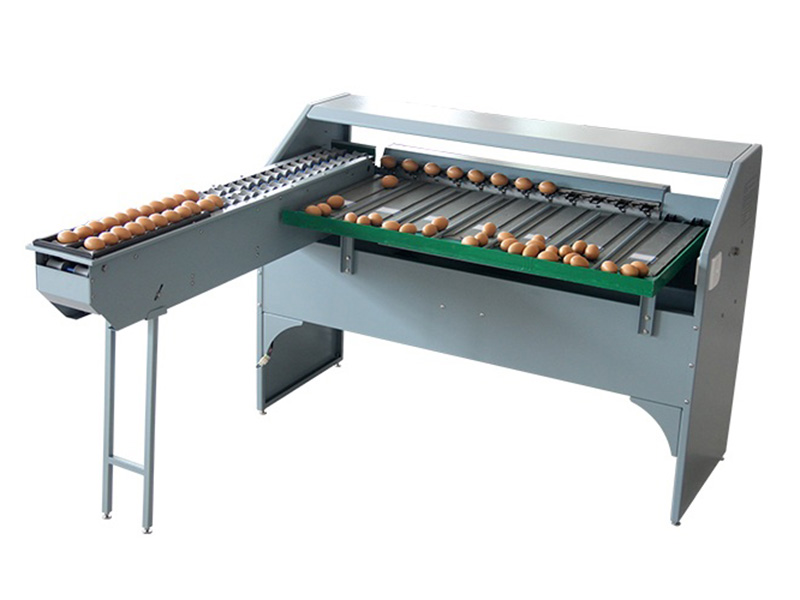

ZENYER 101A egg grader is made of carbon steel with plastic coating process. This machine sorts eggs into 7 grades, with an accuracy of within ±1 gram and has the capacity of 4,000 eggs/hour. It can also be attached to a 200A egg washer to form an egg processing line.

Eggs are placed onto the feeding unit, which then transports them to a mechanical weighing scale that will weigh the eggs into different grades and drop them into the corresponding table. ZENYER provides different egg grader models catering for both left and right loading.

Inquiry

Specifications

Name	Egg Grader
Product Code	101A
Model	ZYF-J2-L(R)
Material	Carbon steel
Capacity	4,000 eggs/hour
Accuracy	±1 gram
Grade*	7
Feeding lines	2
Power*	0.32KW
Voltage*	220V-240V, 50HZ, single phase

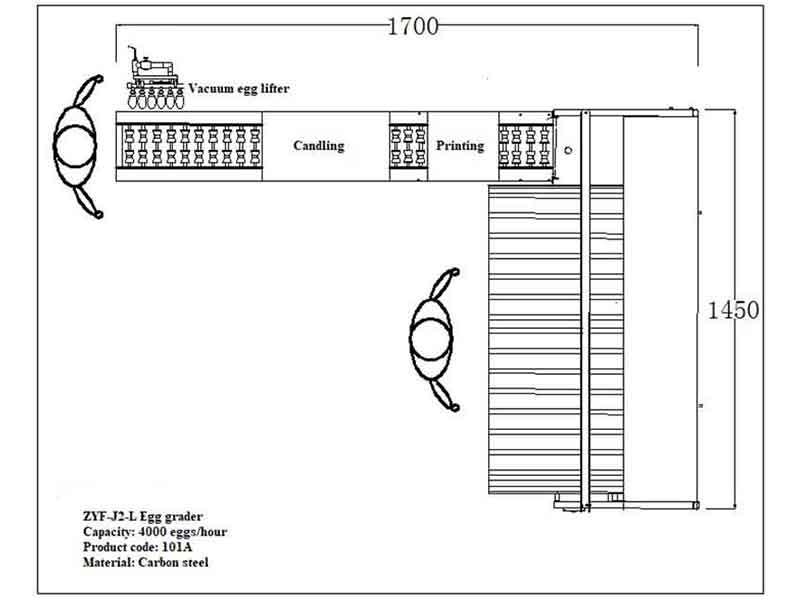

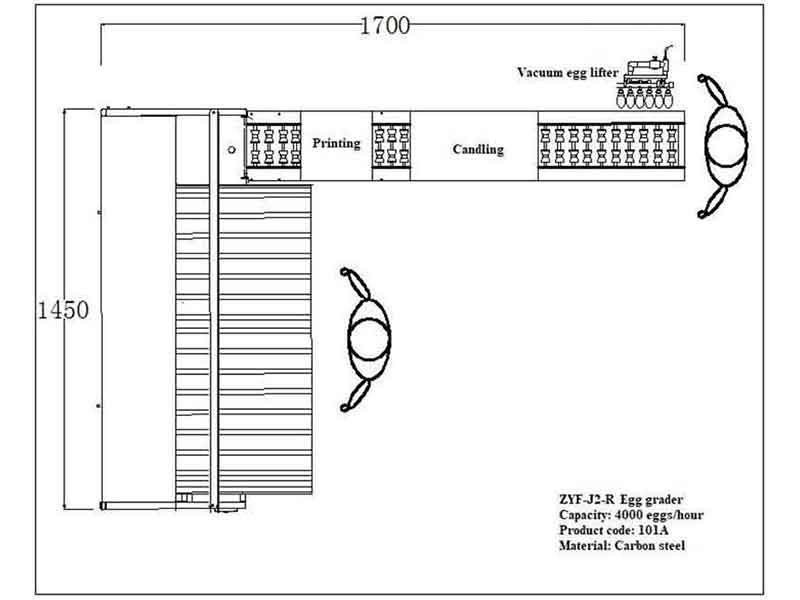

Dimension (LWH)	1.7×1.45×1 M
Net weight*	150KG
Gross weight*	240KG
Function	Egg grading & candling

Operation Flow

Egg loading
Candling
Egg printing (Optional)
Grading
Manual collection table

Egg loading

- Place eggs on the feeding unit manually.

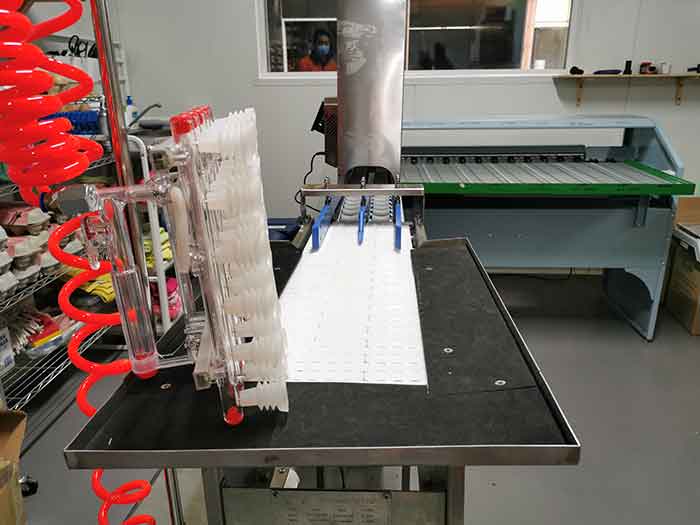

- Or connect 604A accumulator and use 602 vacuum egg lifter to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 2 rows and transferred into the feeding unit of 101A egg grader.

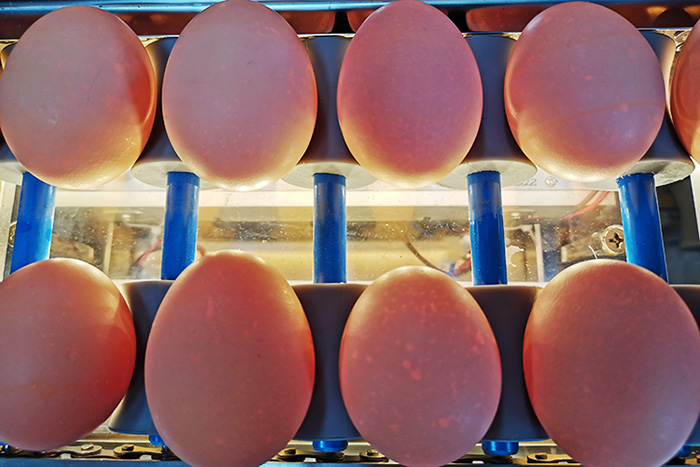

Candling

Eggs are transported to the candling unit through the roller of the feeding unit. You can check for any leaking, dirty, cracked eggs through candling light by eyes, and manually take them out.

Egg printing (Optional)

402H egg printer (2-print head) is an optional attachment to print the farm name, logo, date and Julian date, etc. on eggs.

Grading

Eggs are weighed and graded into 7 grades.

Manual collection table

Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
