102BS Egg Grader

102BS Egg Grader (5,400 EGGS/HOUR)

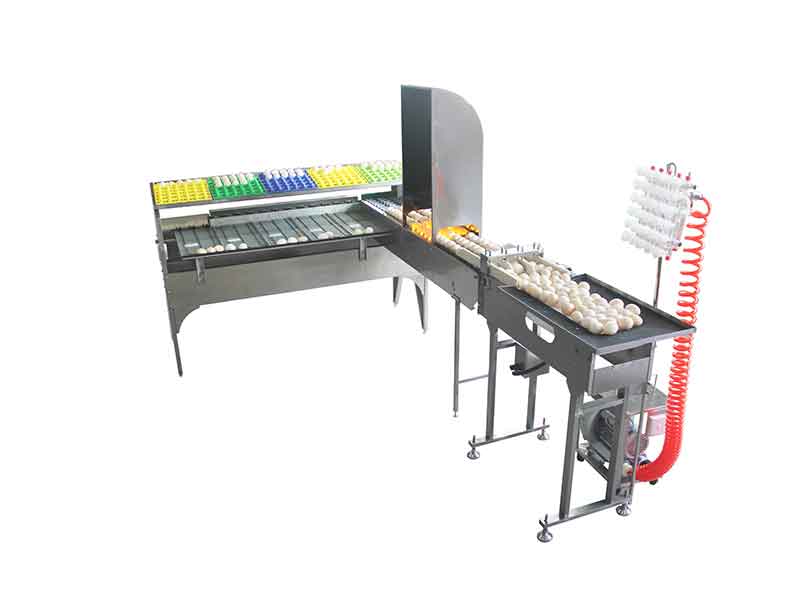

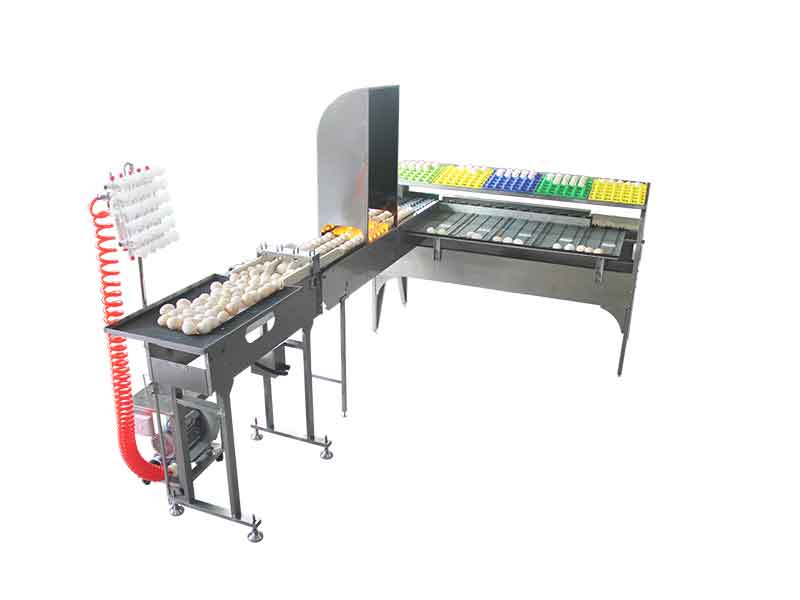

ZENYER 102BS egg grader is a combination of 102B egg grader, 604A accumulator and 602 vacuum egg lifter.

This machine grades eggs into 5 sizes, with an accuracy of within ±1 gram and has the capacity of 5,400 eggs/hour. It can also be attached to a 201A egg washer to form an egg processing line.

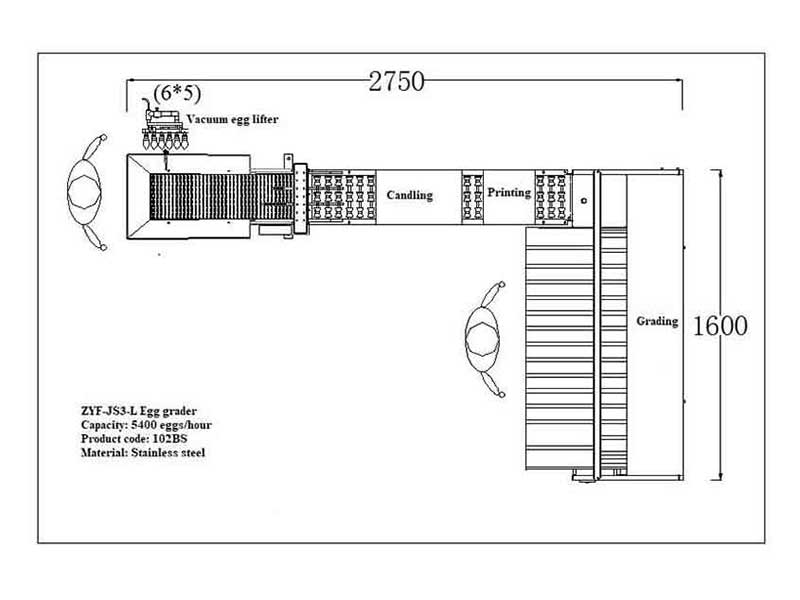

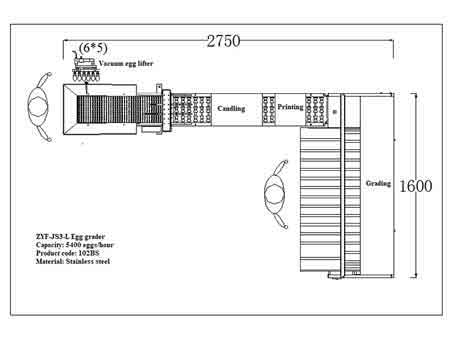

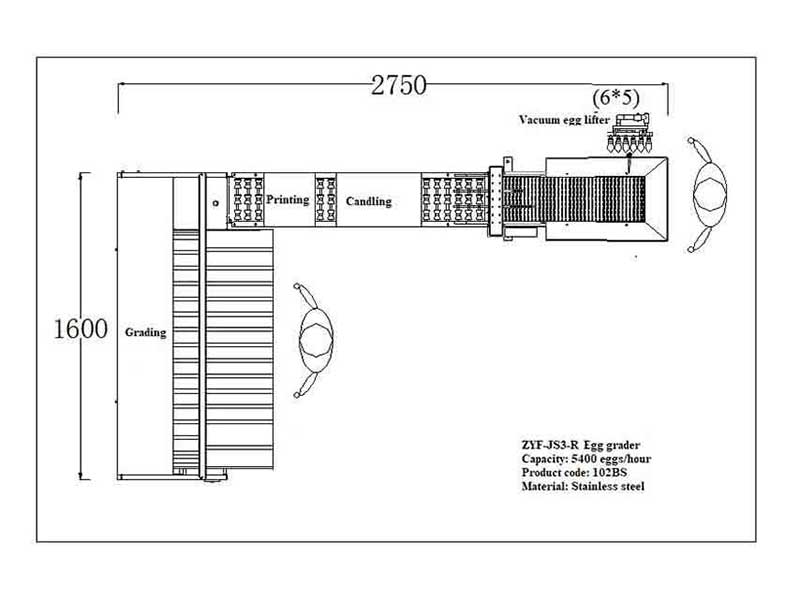

ZENYER provides different egg grader models with egg feeding unit on either left or right hand side.

Inquiry

Specifications

Product name	Egg grader
Product code	102BS
Model	ZYF-JS3-L(R)
Capacity	5,400 eggs/hour
Grading accuracy	±1 gram
Grade*	5
Power*	867W, 50Hz
Voltage*	220V, Single phase
Dimension (L* W* H)	2.751.61.8 M
Net weight*	315 kg
Gross weight*	425 kg
Function	Vacuum loading, egg accumulator, grading & candling and optional egg printer

Egg Processing Procedure

Vacuum egg lifter & accumulator
Candling
Egg printing (Optional)
Grading
Manual collection table

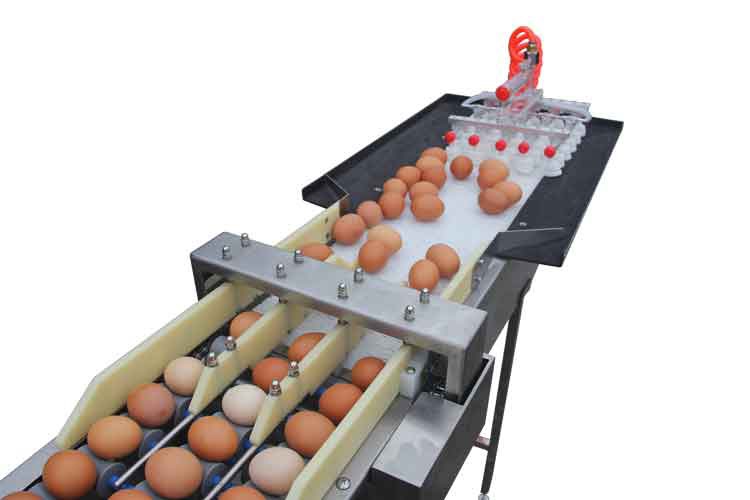

Vacuum egg lifter & accumulator

Eggs are vacuum lifted and loaded onto the 604A accumulator using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into 3 rows and transferred into the feeding unit of 102B egg grader.

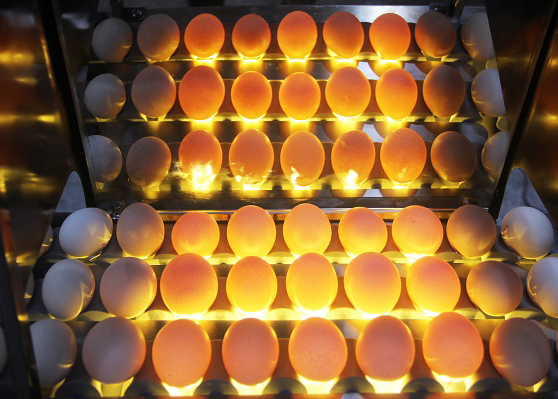

Candling

Eggs are transported to the candling through the roller of feeding unit. You can check for any leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 102B egg grader is also equipped with a stainless-steel candling cover and a mirror for better candling results.

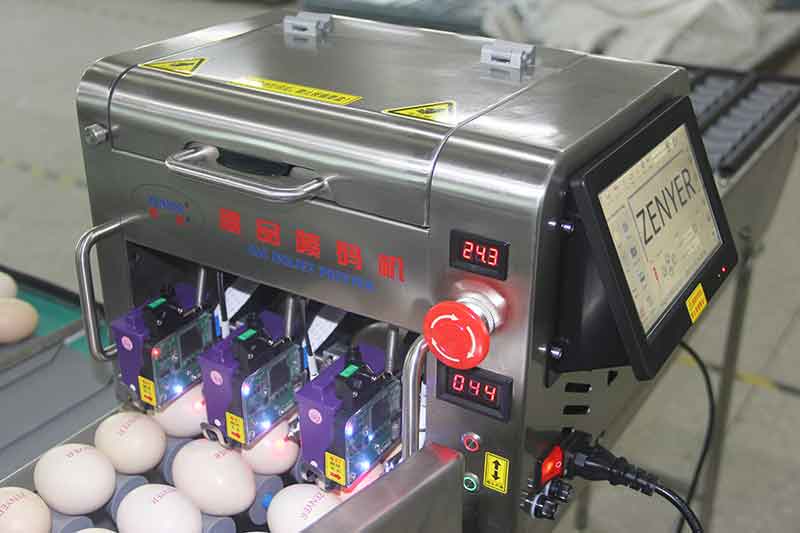

Egg printing (Optional)

ZENYER 403H egg printer (3-print head) is an optional attachment to print the company name and logo, date and Julian date, etc. on eggs.

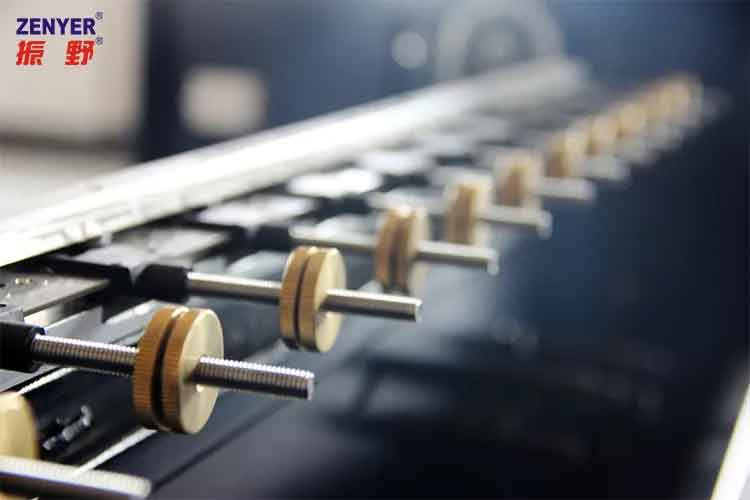

Grading

Eggs are weighed and graded into 5 grades.

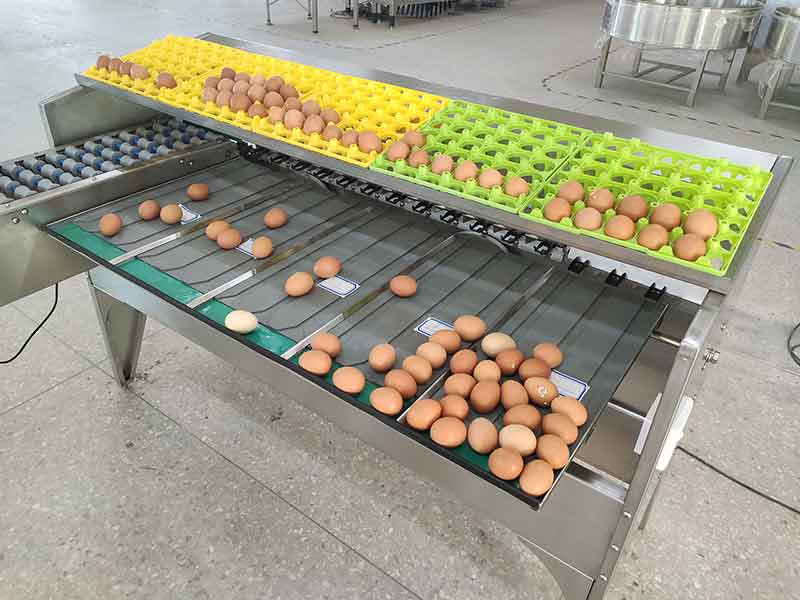

Manual collection table

Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
