101B Egg Grader (4,000 EGGS/HOUR)

101B Egg Grader
101B Egg Grader 101B Egg Grader

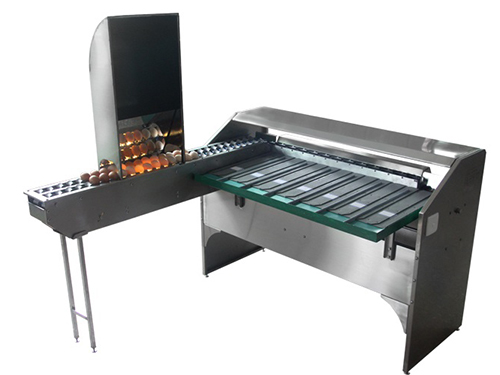

The ZENYER 101B egg grader is made of stainless steel. This egg grading machine sorts eggs into 7 grades, with an accuracy of within ±1 gram and has the capacity of 4,000 eggs/hour. It can also be attached to a 200A egg washer to form an egg processing line.

Eggs are placed onto the feeding unit, which then transports them to a mechanical weighing scale that will weigh the eggs into different grades and drop them into the corresponding table.

Inquiry
Specifications
Name Egg Grader
Product Code 101B
Model ZYF-J2-L
Material Stainless steel
Capacity 4,000 eggs/hour
Accuracy ±1 gram
Grade* 7
Feeding lines 2
Power* 0.218KW
Voltage* 220V-240V,50HZ,single phase

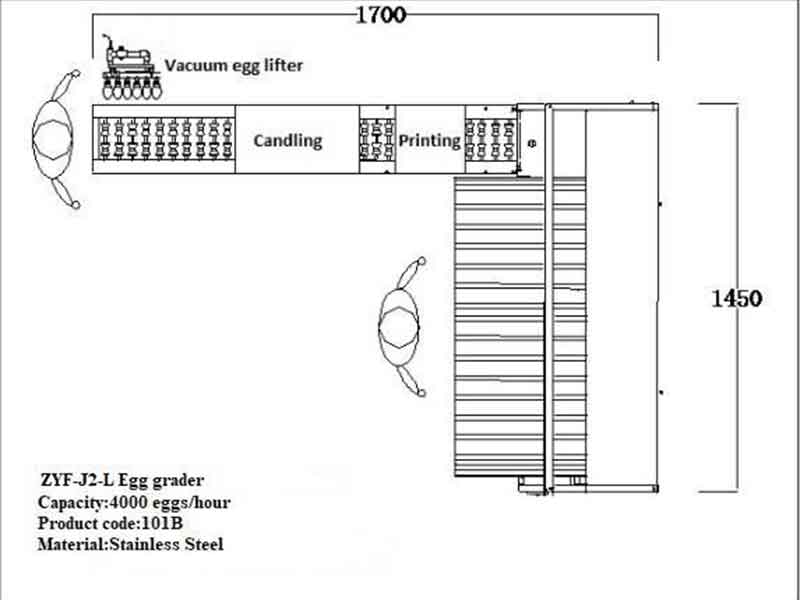

Dimension (L*W*H) 1.7*1.45*1.8 M
Net weight* 180KG
Gross weight* 260KG
Function Egg grading & candling
Operation Flow
  • Egg loading
  • Candling
  • Egg printing (Optional)
  • Grading
  • Manual collection table
    Egg loading
    • Egg loading
    • Egg loading
    • Candling

    - Place eggs on the feeding unit manually.

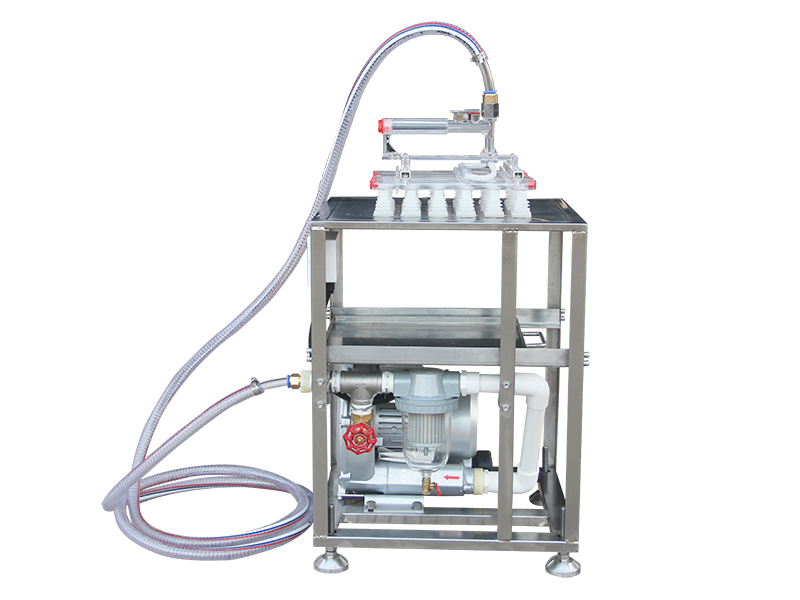

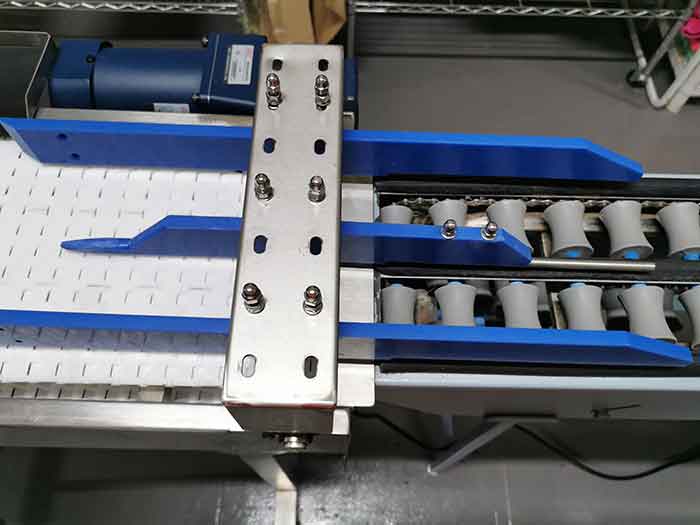

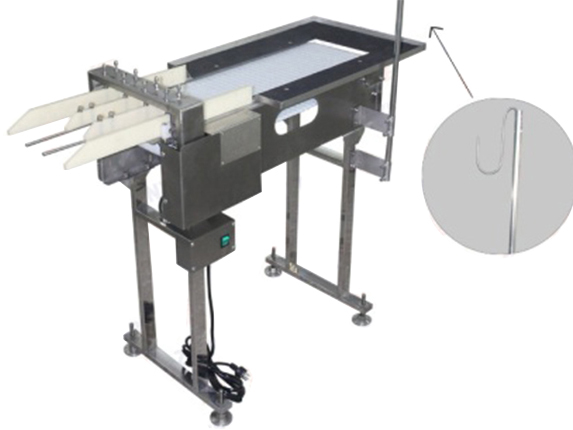

    - Or connect 604A accumulator and use 602 vacuum egg lifter to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 2 rows and transferred into the feeding unit of 101B egg grader.

    Candling
    Candling

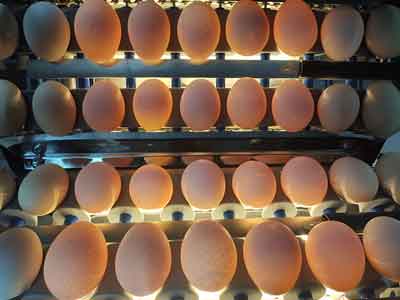

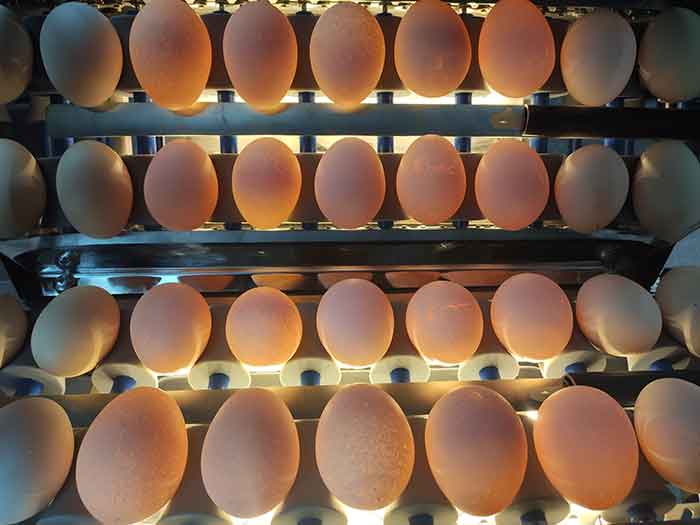

    Eggs are transported to the candling unit through the roller of feeding unit. You can check for any leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 101B egg grader is also equipped with a stainless-steel candling cover and a mirror for better egg inspection.

    Egg printing (Optional)
    Egg printing (Optional)

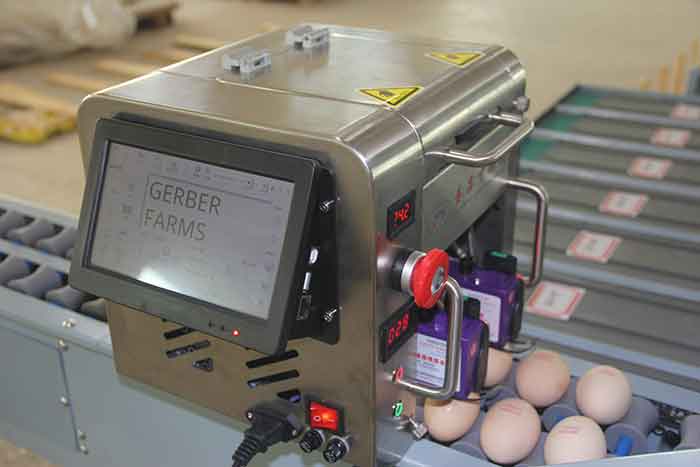

    ZENYER 402H egg printer (2-print head) is an optional attachment to print the farm name, logo, date and Julian date etc. on eggs.

    Grading
    Grading

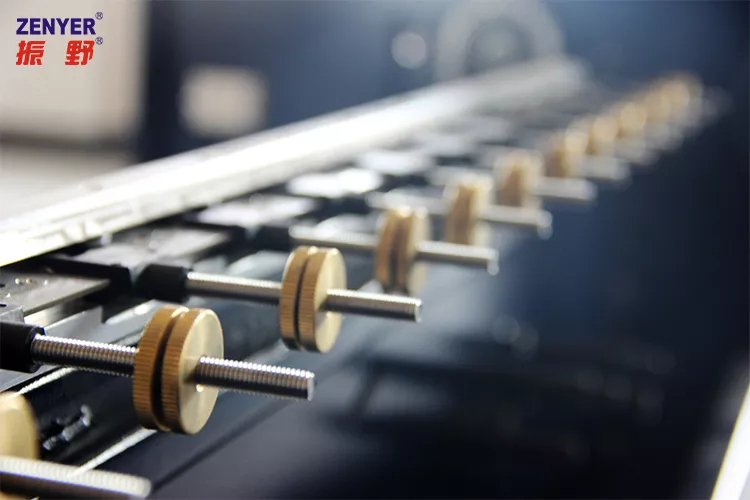

    Eggs are weighed and graded into 7 grades.

    Manual collection table
    Manual collection table

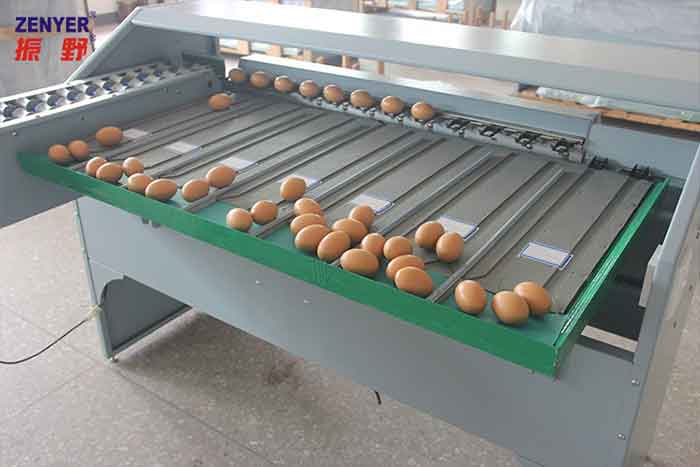

    Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
