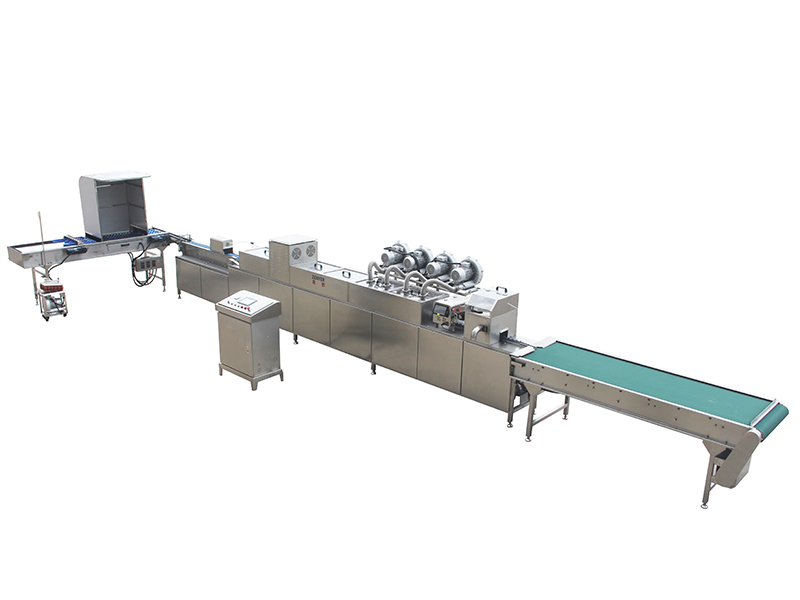

202A Egg Washer (10,000 EGGS/HOUR)

202A Egg Washer
202A Egg Washer 202A Egg Washer 202A Egg Washer 202A Egg Washer

Made of strong stainless steel for great durability and hygiene. The Zenyer 202A is comprised of 202A main machine, 605A accumulator, 602 vacuum egg lifter, and optional manual packing lane.
Eggs are vacuum lifted and loaded onto 605A accumulator using the 602 vacuum egg lifter. 6 rows LED lights are added under the accumulator and workers can pick out any leaking, dirty or cracking eggs through the LED lights. The LED candling booth equips with cover and mirror as well to reinforce the candling result. The accumulator will direct 6 lines of eggs into 1 line and transport them to the single conveyor egg washer.
It can connect with the ZENYER 104A/ 104B egg grader to build the ZENYER 302A/302AS egg processing linewith capacity of 10,000 eggs/hour.

Inquiry
Specifications
Product name Egg cleaning machine
Product code 202A
Model ZYX-JS1-3
Capacity 10,000 eggs/hour
Material Stainless steel
Power* 10.8KW
Voltage* 380V, 50HZ, three phase
Dimension(L×W×H) 7.8*3.9*2.0 M
Net weight* 800KG
Gross weight* 1050KG
Function Vacuum lifter and accumulator loading, candling, sanitizer spraying, brushing, drying, optional egg printer and manual packing lane with UV

Notes

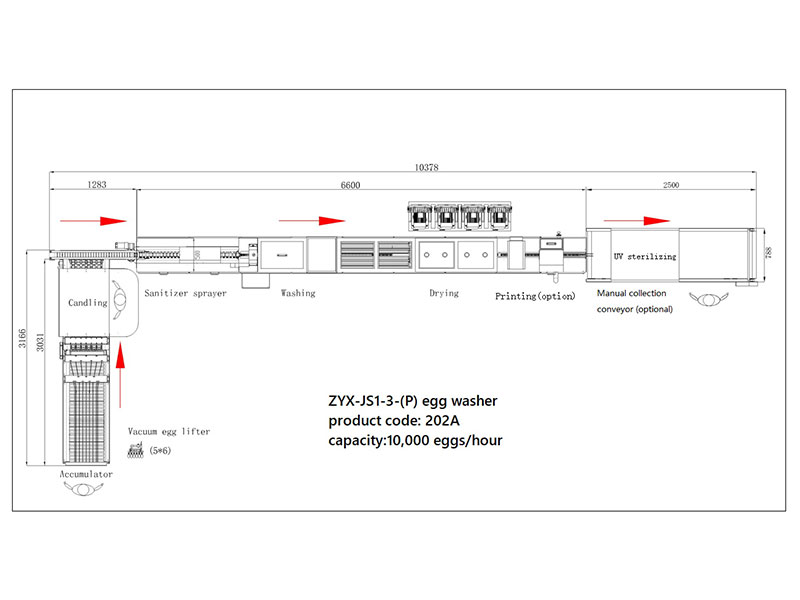

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Vacuum egg lifter & Accumulator
  • Sanitizer sprayer
  • Washing
  • Drying
  • Printing (optional)
  • Manual packing with UV(optional)

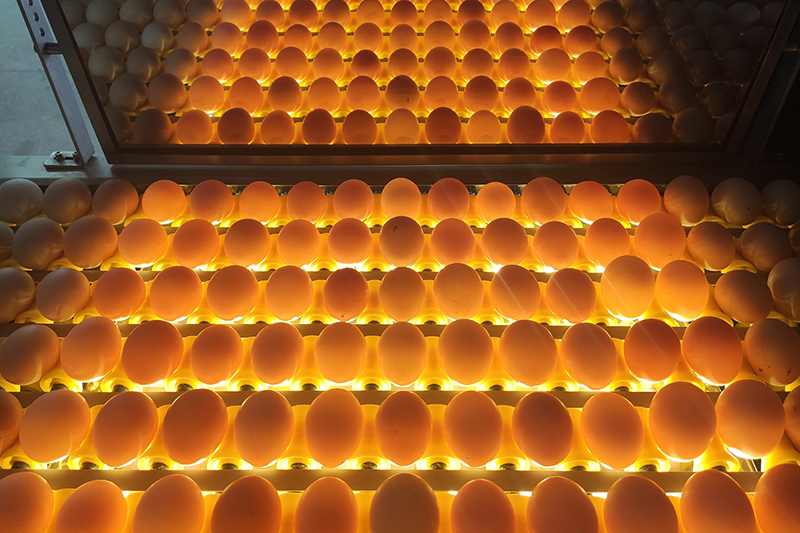

    Vacuum egg lifter & Accumulator (includes Candling)
    • Loading
    • Loading
    • Loading

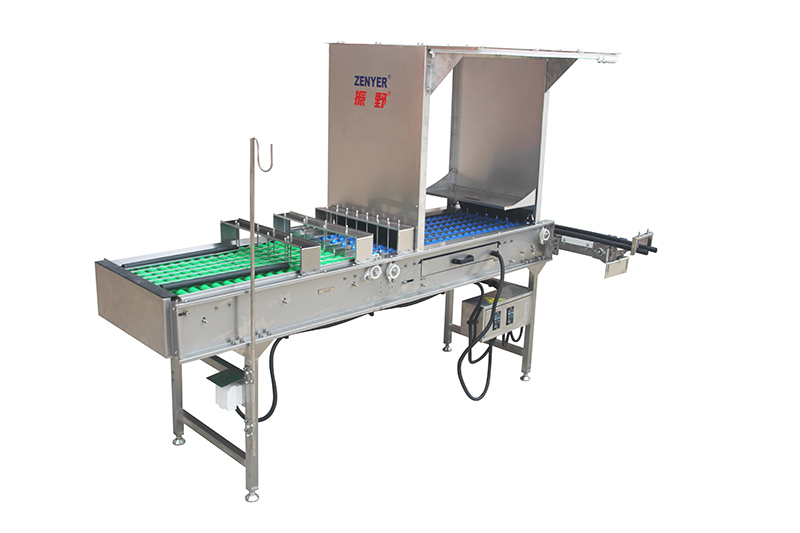

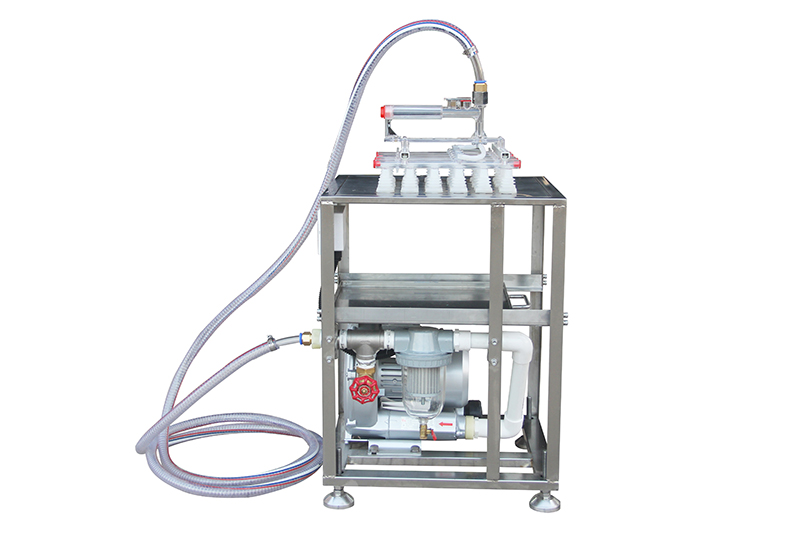

    Eggs are vacuum lifted and loaded onto the 605A accumulator using the ZENYER 602 vacuum egg lifter. 6 rows LED lights are added under the accumulator and workers can pick out any leaking, dirty or cracked eggs through the LED lights. The LED candling booth equips with a cover and mirror as well to reinforce the candling result. ZENYER 605A accumulator will direct 6 lines of eggs into 1 line and transport them to the single conveyor egg washer.

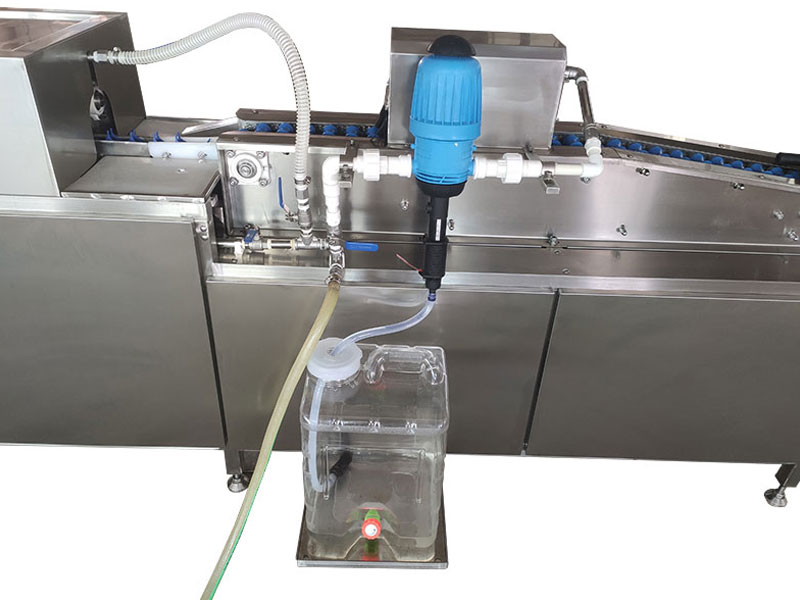

    Sanitizer sprayer
    Sanitizer sprayer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are well cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

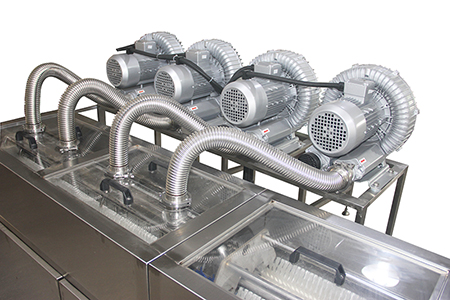

    Drying
    Drying

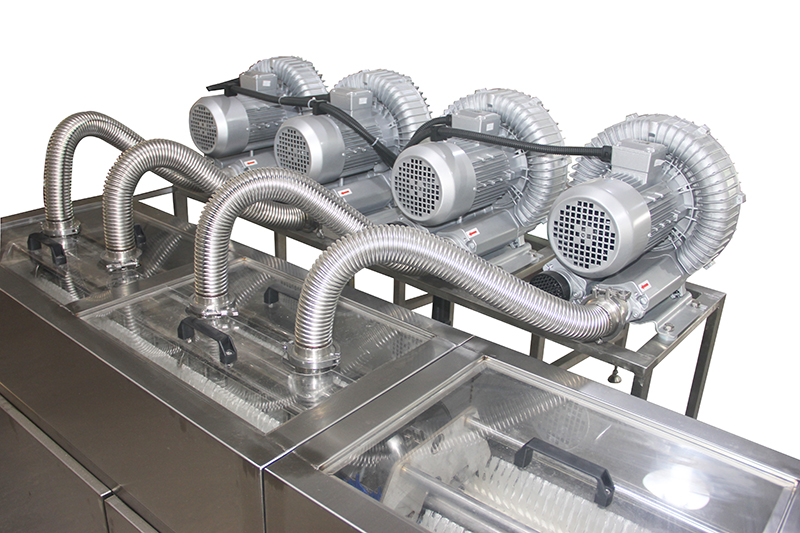

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

    Printing (Option)
    Printing (Option)

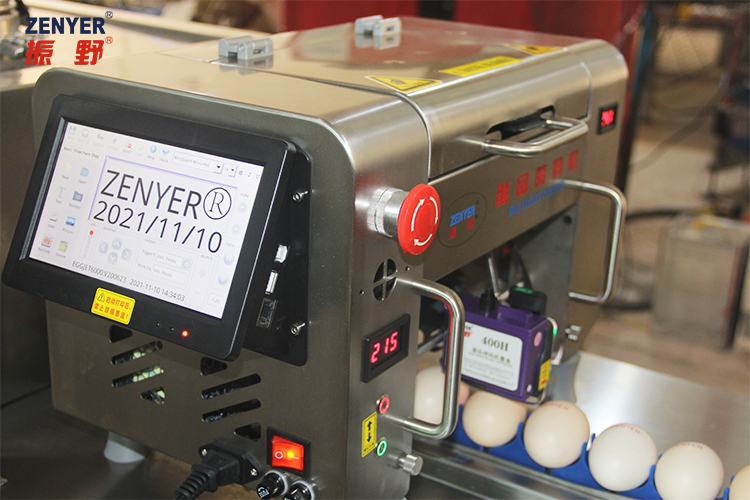

    ZENYER 401H single-head printing machine could be attached at the end of egg cleanser, you can print your farm name, logo, date, best before date, etc. on eggs.

    Manual packing (with UV sterilizing)
    Candling

    Washed eggs will roll onto the conveyor (motor drive) and can be placed into trays manually. It could instead be attached to the ZENYER 104A/ 104B egg grader to create the 302A/ 302AS egg processing line instead.
