302A Egg Processing Line with Cleaning, Grading & Packaging (10,000 EGGS/HOUR)

302A Egg Processing Line with Cleaning Grading Packaging
302A Egg Processing Line with Cleaning Grading Packaging 302A Egg Processing Line with Cleaning Grading Packaging 302A Egg Processing Line with Cleaning Grading Packaging 302A Egg Processing Line with Cleaning Grading Packaging 302A Egg Processing Line with Cleaning Grading Packaging

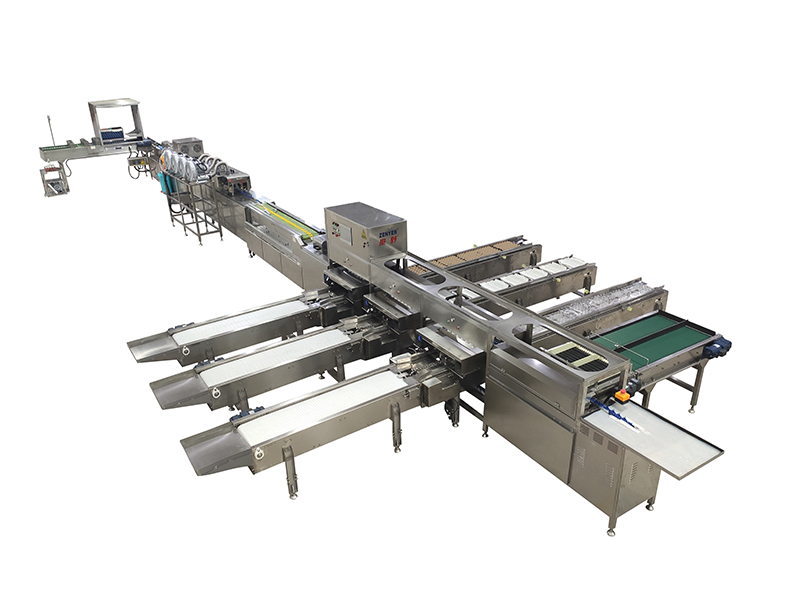

ZENYER 302A egg processing line includes the 602 vacuum egg lifter, 605A egg accumulator table, 202A egg washer and 104A egg grader. This model has a maximum capacity of 10,000 eggs/hour, and is used to carry out egg loading & accumulator & candling booth, automatic sanitizer spraying, washing, drying, auto head turning, grading, counting, auto packer and manual packing lane. Users can also choose to have it equipped with 401H egg printer as well.

This model has a maximum capacity of 10,000 eggs/hour, and is used to carry out egg loading & accumulator & candling booth, automatic sanitizer spraying, washing, drying, auto head turning, grading, counting, auto packer and manual packing lane.

Inquiry
Specifications
Product name Egg Processing Line
Product code 302A
Model ZYL-JS1-D1-3ZP
Capacity 10,000 eggs/hour
Material Stainless steel
Accuracy ±1 gram
Grade* 5
Power* 15.29KW
Voltage* 380V, 50HZ, three phase
Dimension(L×W×H) 15.7*5.9*2.0 M
Net weight* 2200KG
Gross weight* 3100KG
Function Accumulator & candling, sanitizing, egg washing, drying, grading, counting, auto packers, manual packing lane, optional vacuum egg lifter and egg printer

Notes

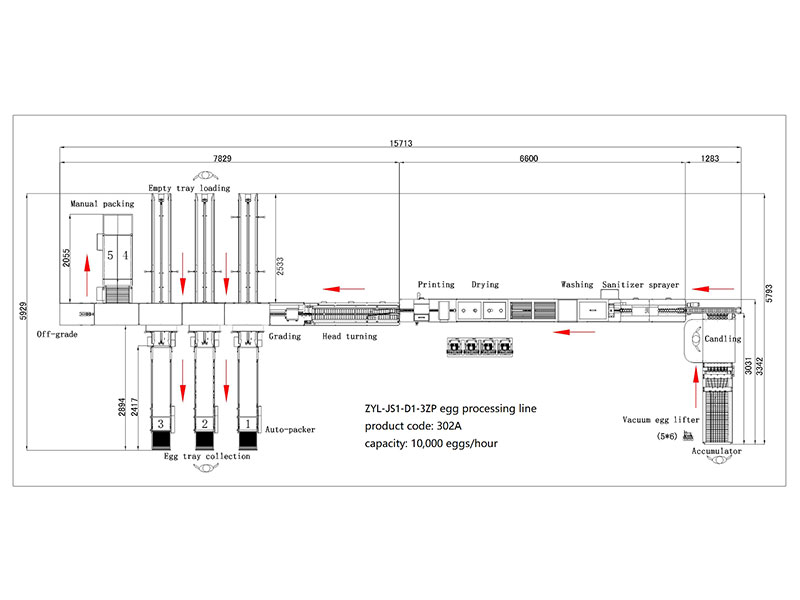

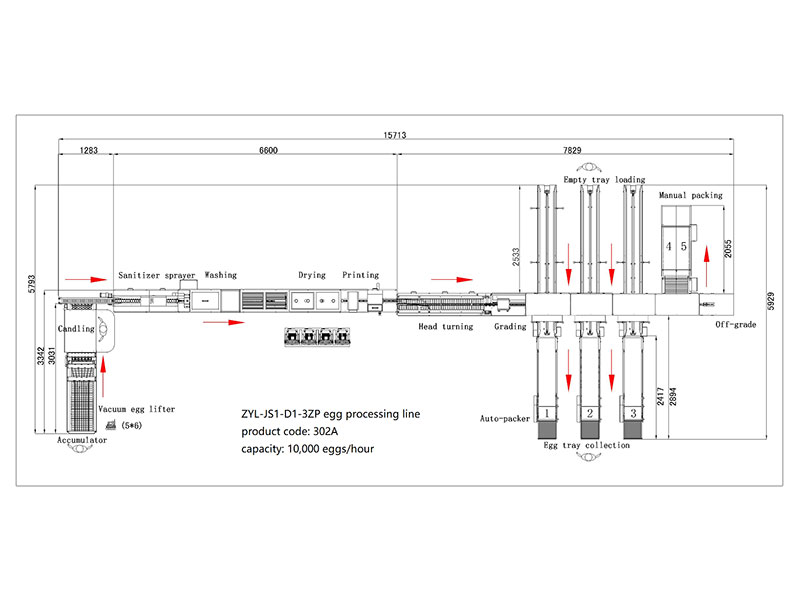

* Grade, power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

OperationFlow
  • Vacuum lifter loading & Accumulator(includes Candling)
  • Sanitizer
  • Washing
  • Drying
  • Single-head printing(Option)
  • Grading (electronic sensor weighing)
  • Automatic packing lane
  • Manual packing
  • Off-grade table

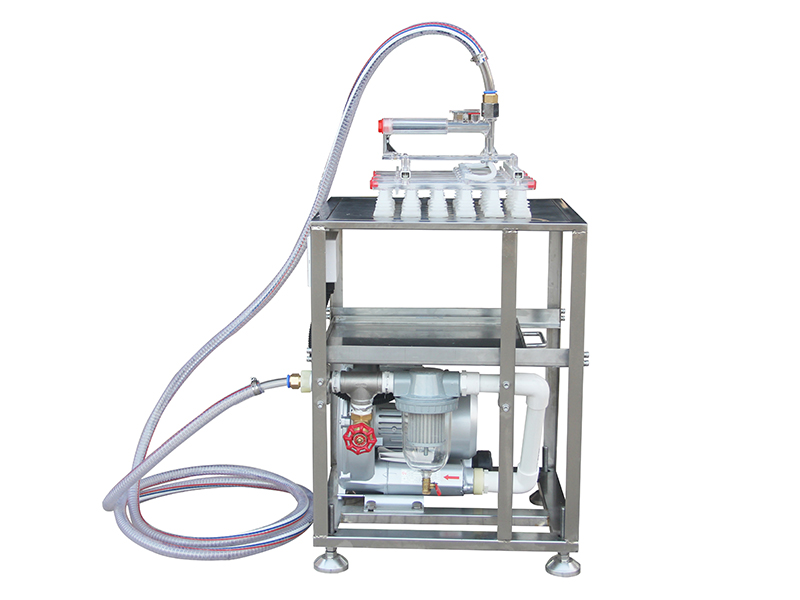

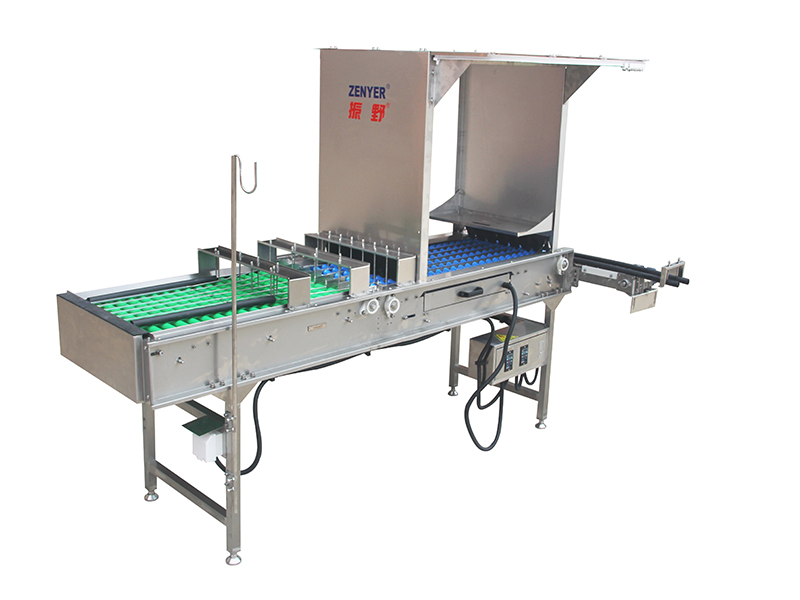

    Vacuum egg lifter & Accumulator (includes Candling)
    • Loading
    • Loading
    • Loading

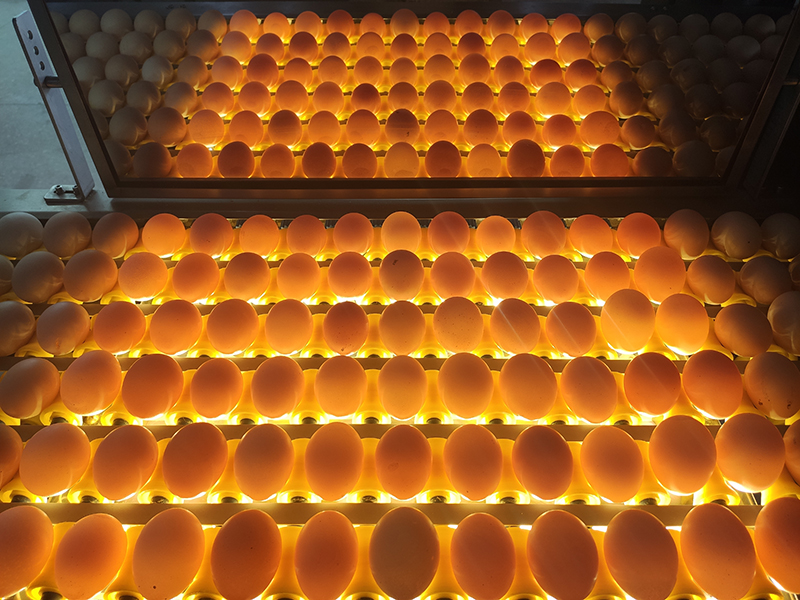

    Eggs are vacuum lifted and loaded onto 605A egg accumulator table using the ZENYER 602 vacuum egg lifter & loader. 6 rows of LED lights are added under the accumulator and workers can pick out any leaking, dirty or cracking eggs through the LED lights. The LED candling booth is equipped with a cover and mirror as well to reinforce the candling result. ZENYER 605A accumulator will direct 6 lines of eggs into 1 line and transport them to the single conveyor egg washer nicely with no cracking.

    Sanitizer sprayer
    Sanitizer sprayer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are fully cleaned using two brush sets and a warm water spray (The machine doesn’t come with a water heater, customer provides it). The brush modules are flexible, and adjustments can be made to the brush distance, position, and speed.

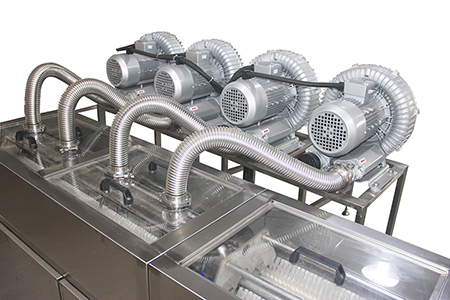

    Drying
    Drying

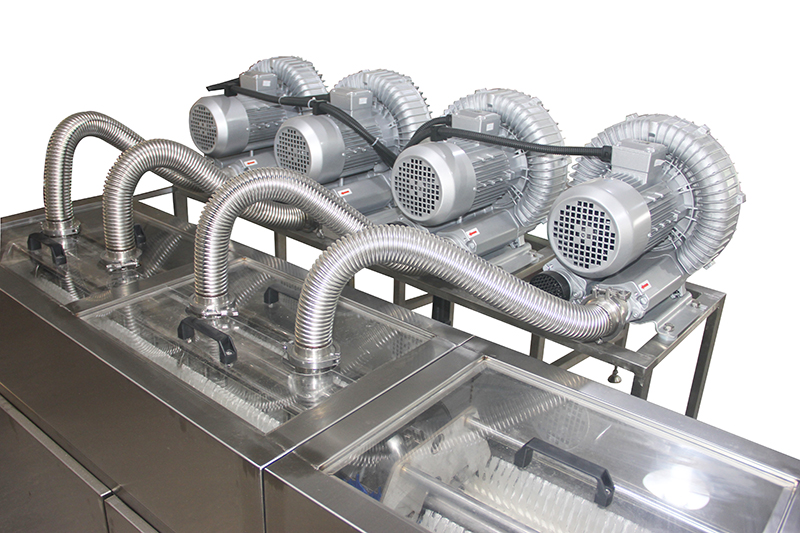

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

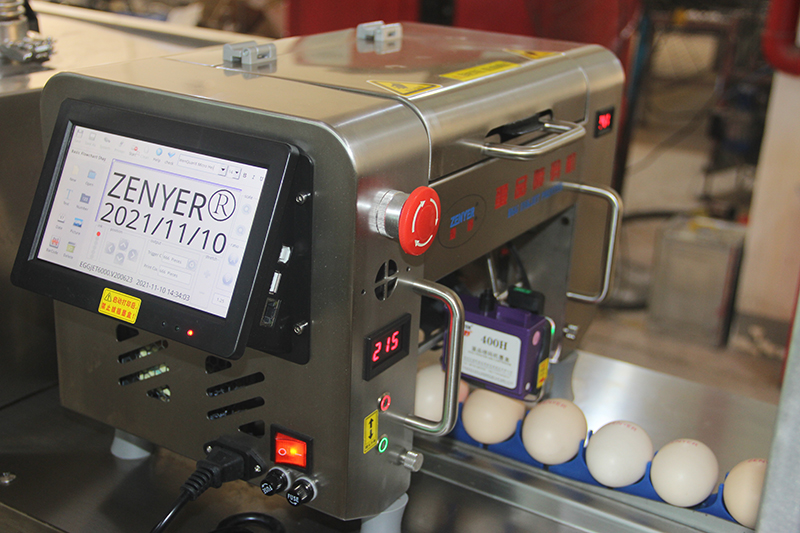

    Printing (option)
    Printing (option)

    ZENYER 401H single-head printing machine can be attached at the end of the egg cleanser, allowing users to print the farm name, logo, date, best before date, and other information onto the egg.

    Auto head turning
    Auto head turning

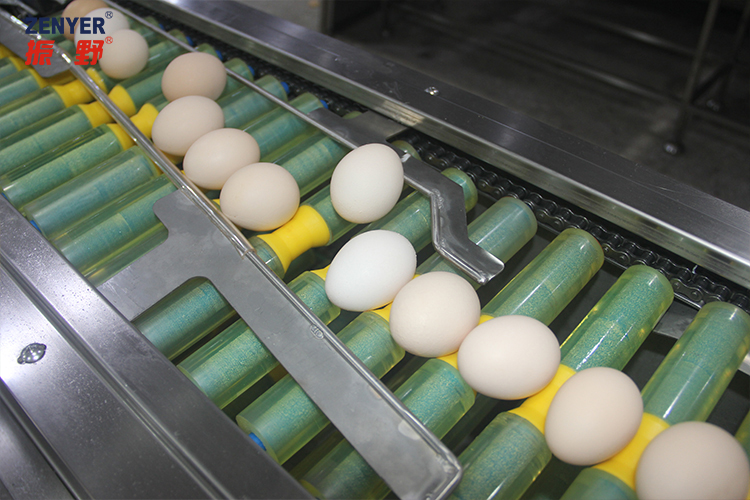

    Simple design makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.

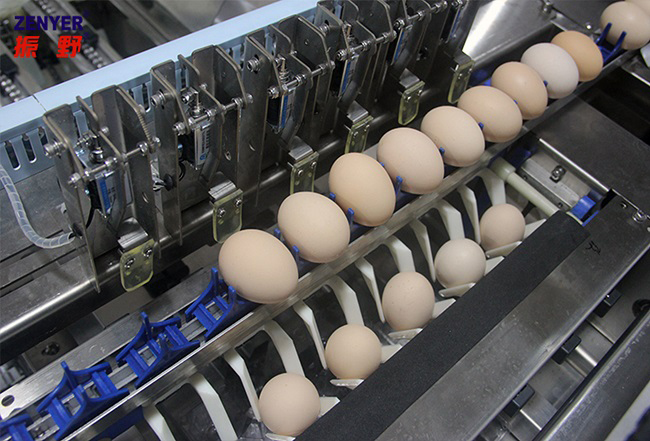

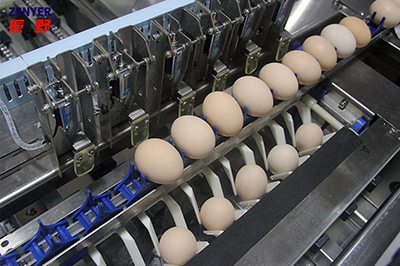

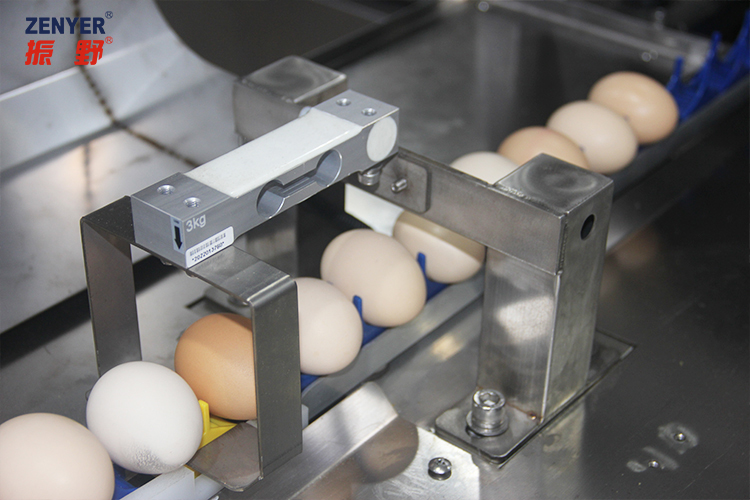

    Grading (electronic sensor weighing)
    • Grading
    • Grading

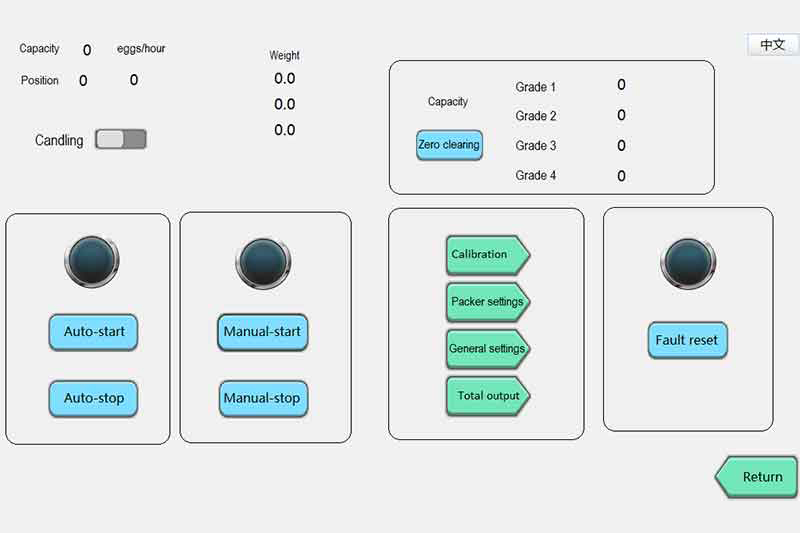

    The egg grader is equipped with a control panel with a color touchscreen and physical buttons as well, you can set the grading specification and calibrate the grading accuracy through the touchscreen. It has a self-diagnosis system, which diagnoses any malfunctions that may occur.
    It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.

    Configuration
    Auto packer 4 3 2 1
    Manual collection conveyor 0 1 2 3
    Grades (Max.) 4 5 6 7

    Eggs are weighed electronically and can be graded into 4~7 grades, how many grades depend on the configuration of the auto packer and the manual collection conveyor you choose (see the table above).
    This model of egg grader has 4 stations, each auto packer can pack one size of egg cartons/trays, each manual packing lane can pack two sizes of egg cartons/trays at most, you can set auto packer or manual packing lane at any station.

    Automatic packing lane
    • Grading
    • Grading
    • Grading

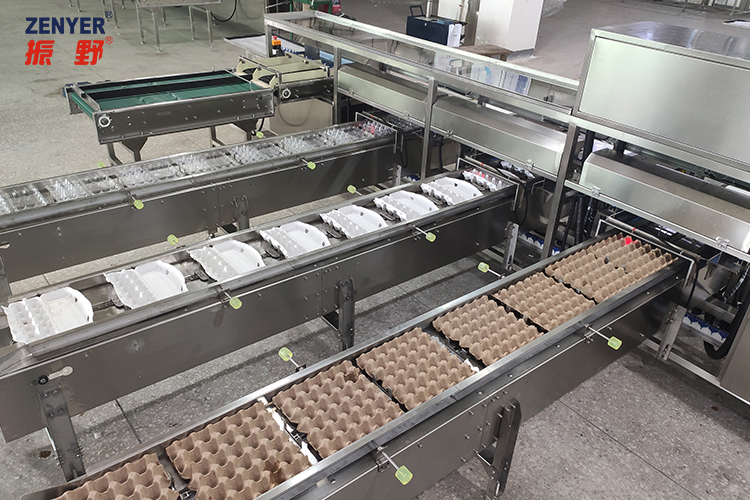

    Automatic packing lane includes a single dropset and manual egg tray stocker. Empty trays must be manually placed in the egg tray stocker, allowing the stocker to send the empty trays to where the eggs will drop from. The single dropset unit drops the eggs down into 6, 10, 12, 15, 18, 20, 24 egg cartons and 30-egg trays automatically.

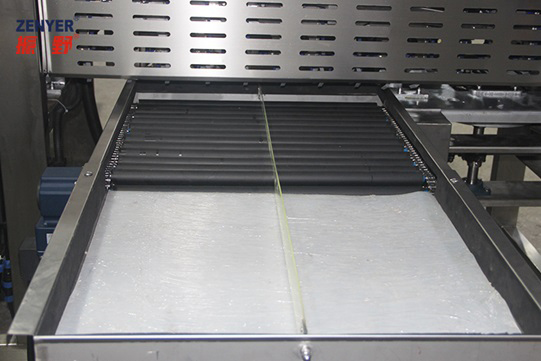

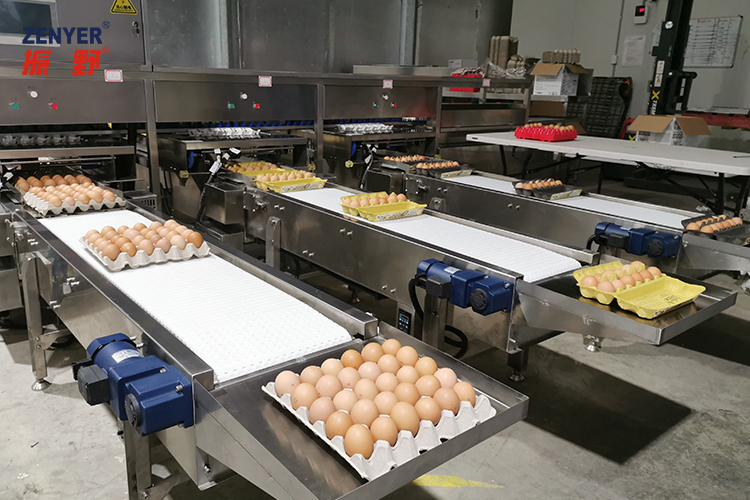

    Manual packing
    Manual packing

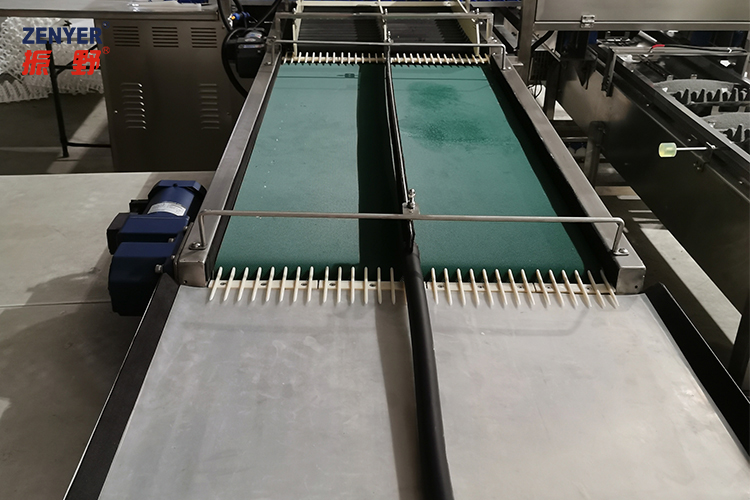

    The graded eggs will fall onto the conveyor and be packed into egg trays manually. The conveyor can be split by a bar for 2 different sizes of eggs if needed.

    Off-grade table
    Off-grade table

    Oversized or undersized eggs will be placed onto the off-grade table where you can collect the eggs and pack them into egg trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
