300C Egg Processing Line with Cleaning Grading Separating

300C Egg Processing Line with Cleaning, Separating (10,000 EGGS/HOUR)

300C Egg Processing Line with Cleaning Grading Separating

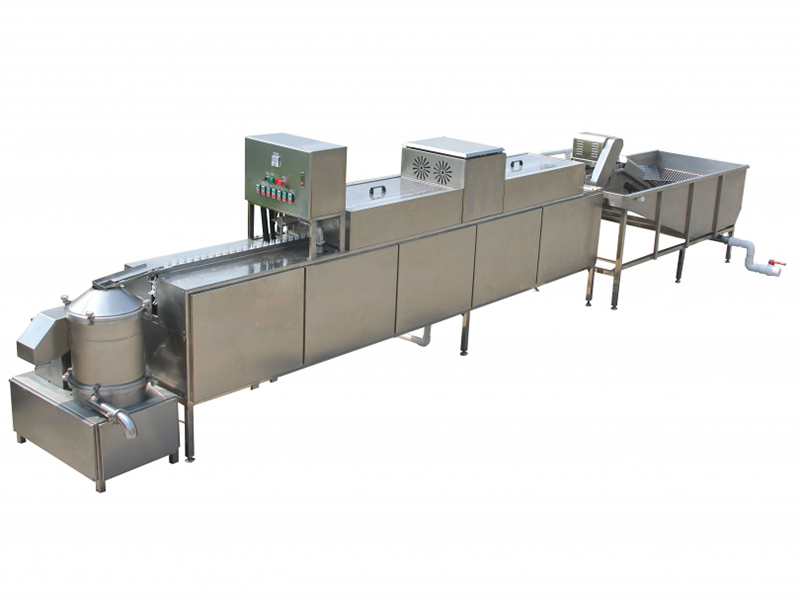

ZENYER 300C liquid egg processing line is comprised of the 202B egg washer and 500 egg centrifuge. Suitable for pre-washing before separating chicken eggs. Made of strong stainless steel for great durability and hygiene and meets all safety and food processing requirements for companies that use egg liquids, such as bakeries, cake factories, dessert factories, and other food processing industries.

Inquiry

Specifications

Product name	Egg washing & centrifuge line
Product code	300C
Model	ZYL-DS1-PS
Capacity	10,000 eggs/hour
Material	Stainless steel
Power*	10.2 KW
Voltage*	380V, 50HZ, three-phase
Dimension(L×W×H)	8.81.12 M
Function	Water bath loading, washing, drying, centrifuge (separating egg liquids from eggshells) and optional sanitizer spraying & candling

* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

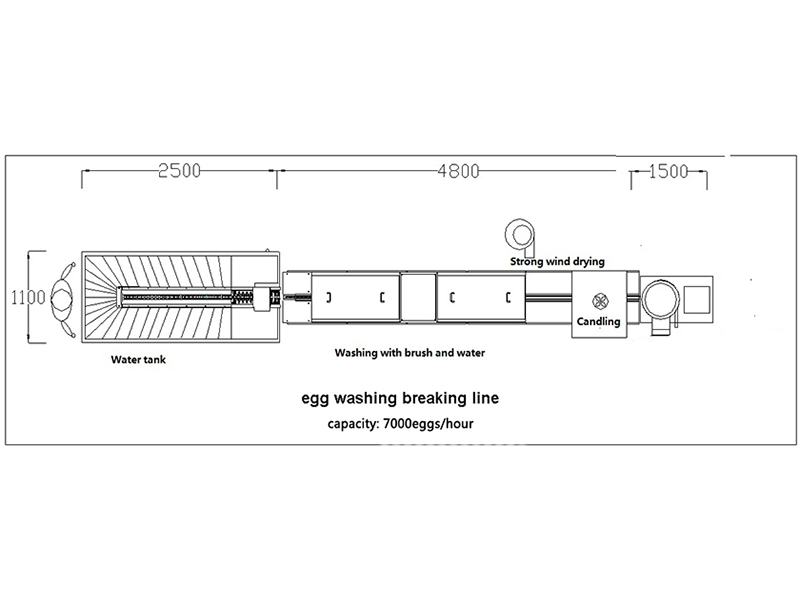

Operation Flow

Water bath loading
Sanitizer spraying (optional)
Washing
Drying
Candling(Option)
Centrifugal mechanism separating

Water bath loading

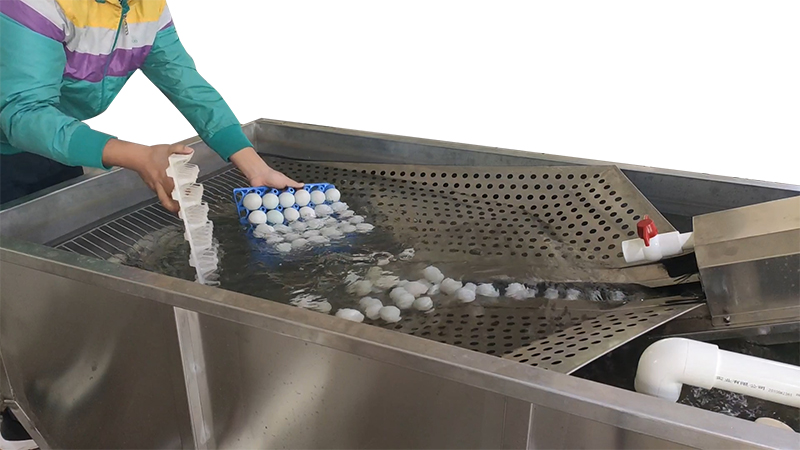

Pour the entire box or tray of eggs into the bath, and the eggs will then be conveyed to the washer entrance.

Sanitizer spraying (optional)

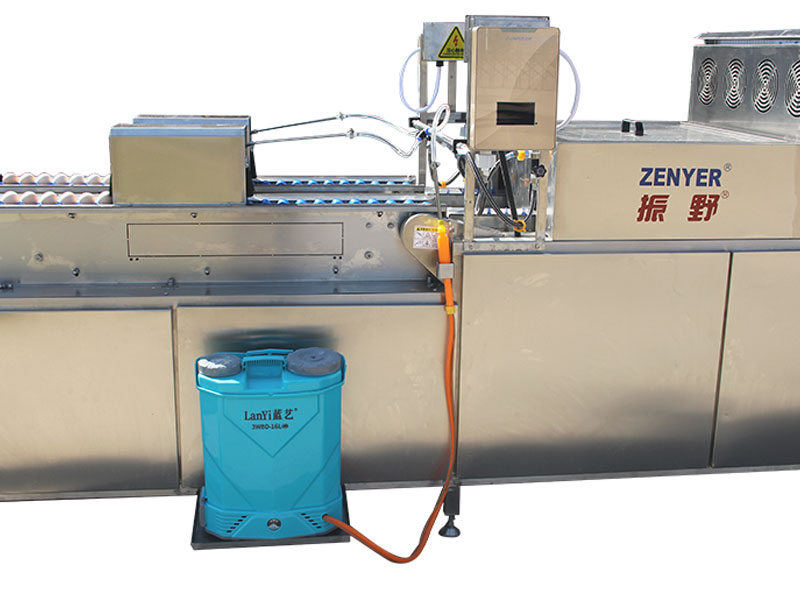

The sanitizer sprayer is installed in the front of egg washer, which sprays sanitizer or detergent (customer provides chemicals) onto eggs automatically for food security purpose.

Washing

Before washing
After washing

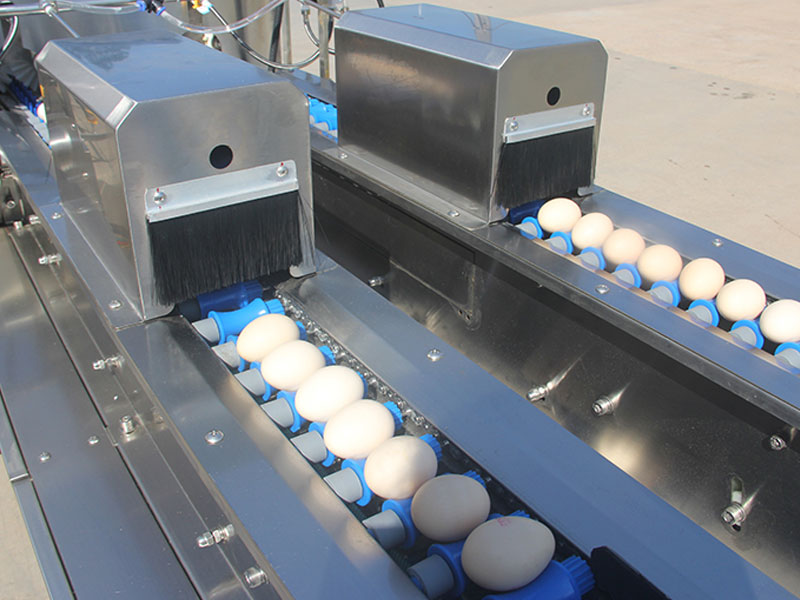

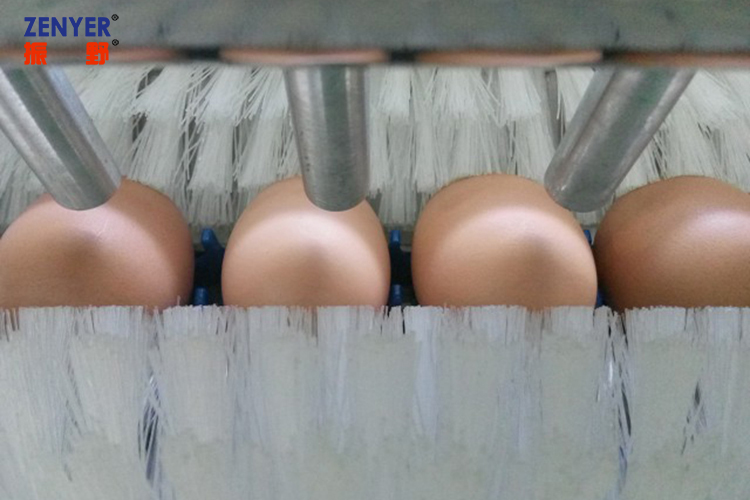

Eggs are fully cleaned using two sets of brushes with a warm water spray. Brush modules are flexible and adjustable in terms of brush distance, position, and speed.

Drying

Eggs are perfectly dried using a strong air pressure.

Candling (Option)

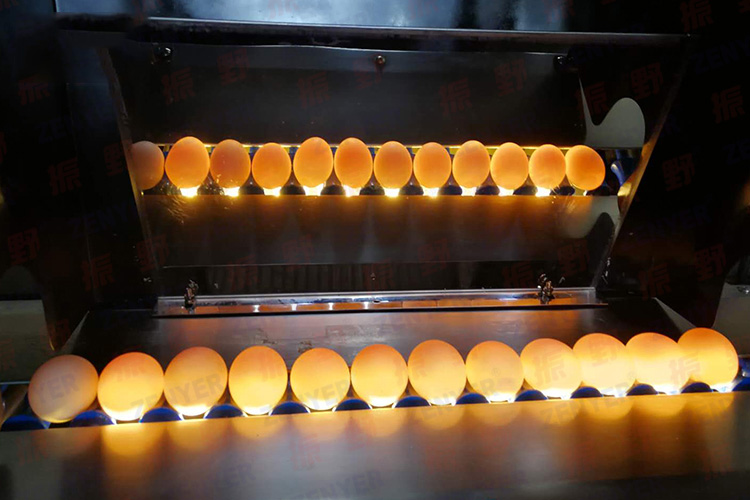

Eggs will run through LED lights for a candling purpose, allowing users to easily remove any unqualified eggs, such as those that leak or are cracked.

Separating

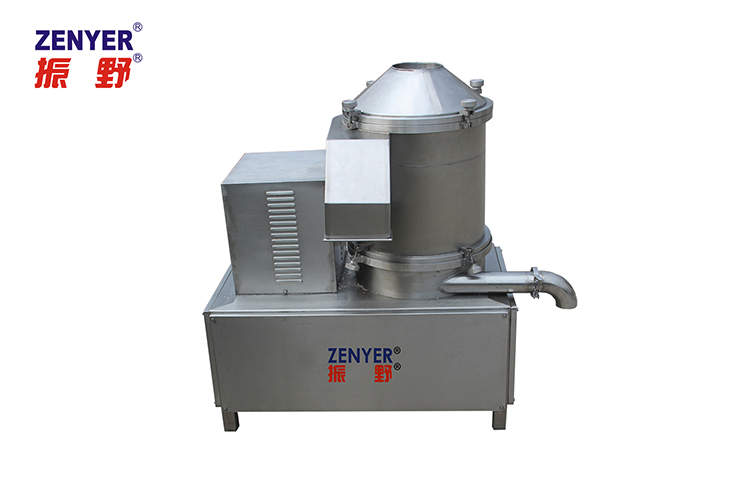

ZENYER 500 egg centrifuge is made using a specially designed centrifugal mechanism operation system. Once the eggs are poured into the separator, the centrifugal mechanism will separate the shells and liquids through a high speed spinning process.

After separation is finished, whole egg liquids will flow out from the round tube and eggshells will be pushed out from the square exit.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
