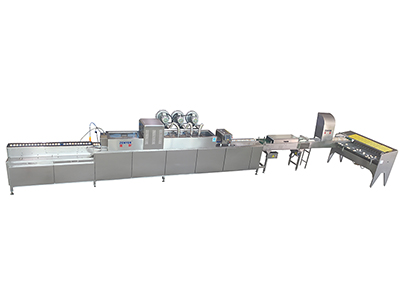

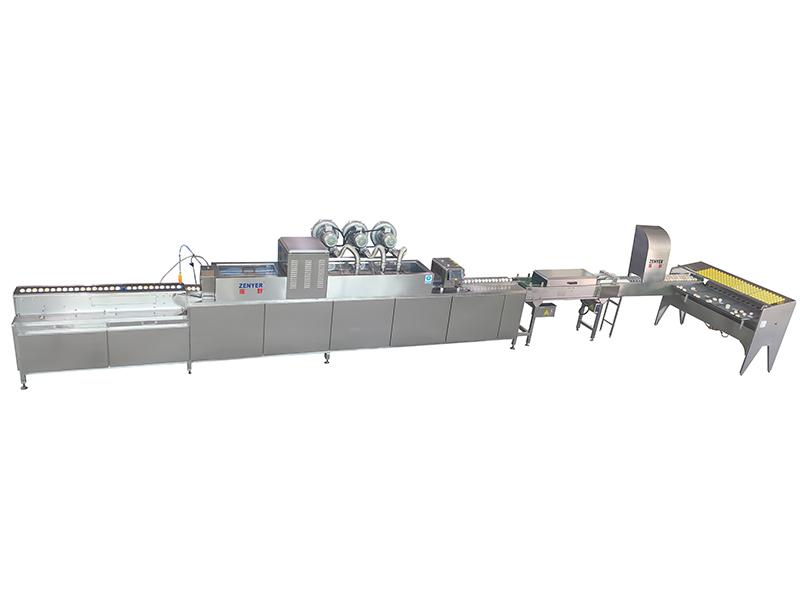

301A Egg Processing Line with Cleaning & Grading (5,000 EGGS/HOUR)

301A Egg Processing Line with Cleaning Grading
301A Egg Processing Line with Cleaning Grading 301A Egg Processing Line with Cleaning Grading 301A Egg Processing Line with Cleaning Grading 301A Egg Processing Line with Cleaning Grading 301A Egg Processing Line with Cleaning Grading

ZENYER 301A egg processing line includes the 201A egg washer, 604B Belt Conveyor and102B egg grader and optional 602 vacuum egg lifter and 604AS accumulator. This model has a maximum capacity of 5,000 eggs/hour, and is used to carry out egg loading & accumulator, automatic sanitizer spraying, washing, drying, UV sterilizing, candling and grading. Users can also choose to have it equipped with 401H egg printer as well.

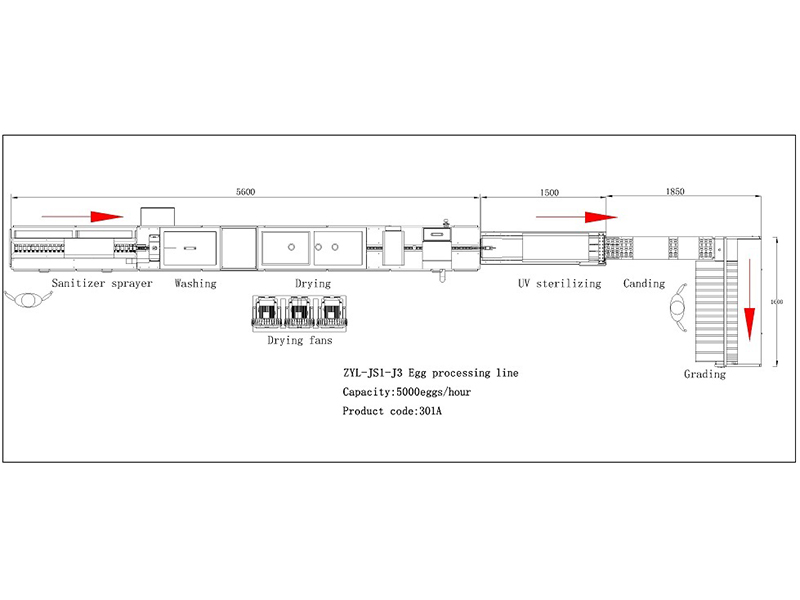

The full processing equipment line can be placed in a straight line, or at left and right angular installations.

Inquiry
Specifications
Product name Egg Processing Line
Product code 301A
Model ZYL-JS1-J3
Capacity 5,000 eggs/hour
Material Stainless steel
Power* 9.2KW
Voltage* 220V, 50HZ, single phase 380V, 50HZ, three phase
Dimension(L×W×H) 9.0 *2.3*1.8 M
Net weight* 900KG
Gross weight* 1250KG
Function Manual loading, sanitizing, egg washing, drying, UV, candler, grading, optional accumulator, vacuum egg lifter and egg printer

Notes

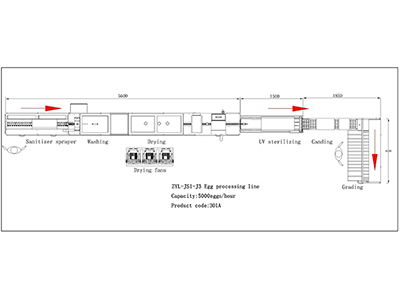

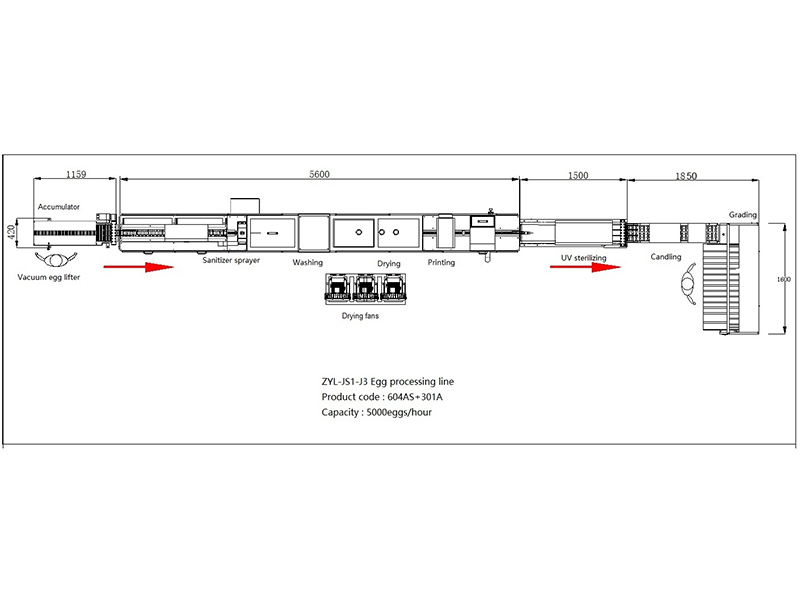

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Manual loading
  • Vacuum egg lifter & accumulator (optional)
  • Sanitizer
  • Washing
  • Drying
  • Printing (optional)
  • Belt conveyor (UV sterilizing)
  • Candling
  • Grading

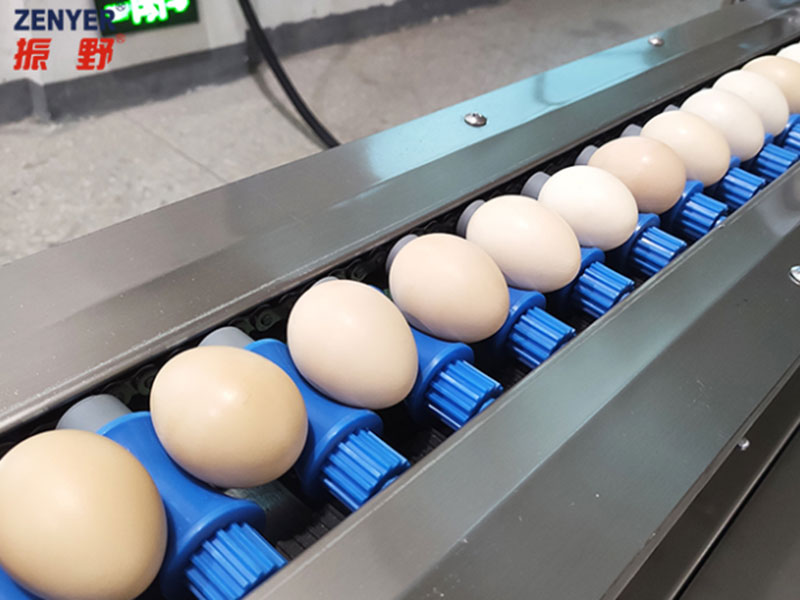

    Manual loading
    Manual loading

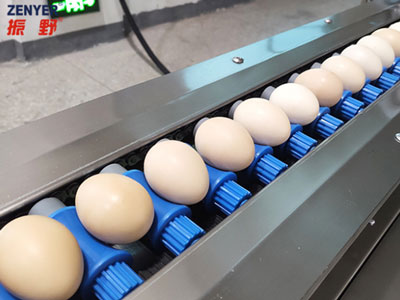

    Place eggs one by one on the single row feeding roller of egg washer by hands, the eggs can be adjusted orderly on the roller and then enter into egg washing system smoothly.

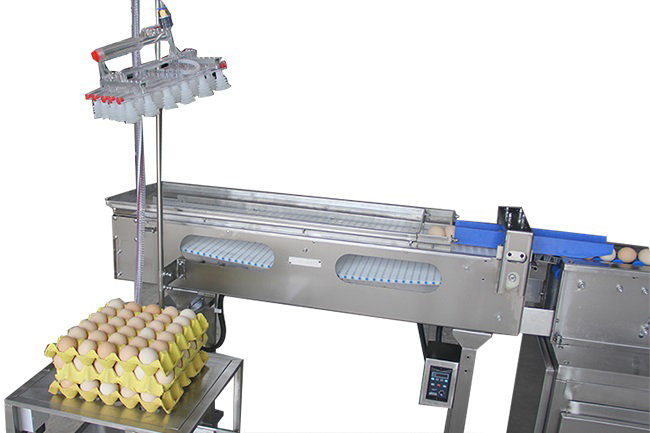

    Vacuum egg lifter & accumulator (optional)
    Vacuum egg lifter & accumulator (optional)

    Alternatively, the whole tray can be vacuum lifted onto the 604AS accumulator by using the ZENYER 602 vacuum egg lifter. This method is significantly faster and more efficient.

    Sanitizer sprayer
    Sanitizer sprayer

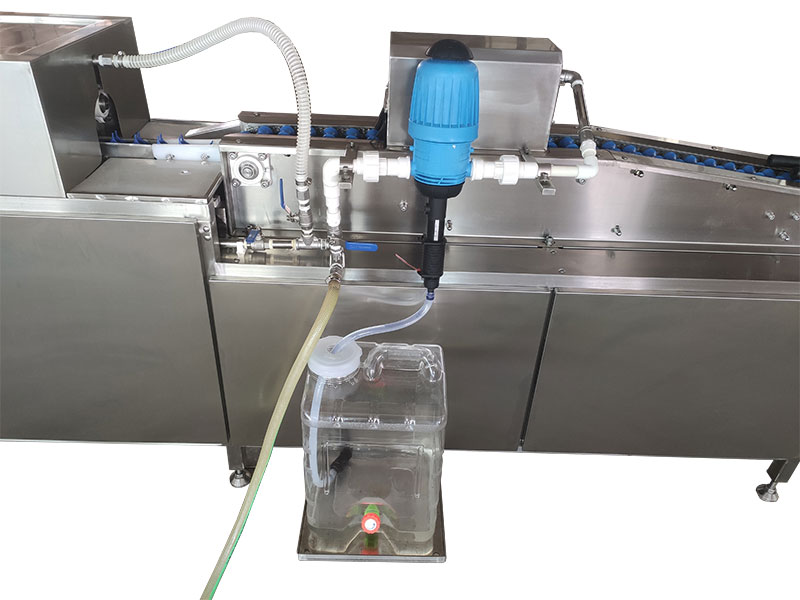

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are fully cleaned using brushes and a warm water spray (The machine doesn’t come with a water heater, customer provides it). The brush modules are flexible, and adjustments can be made to the brush distance, position, and speed.

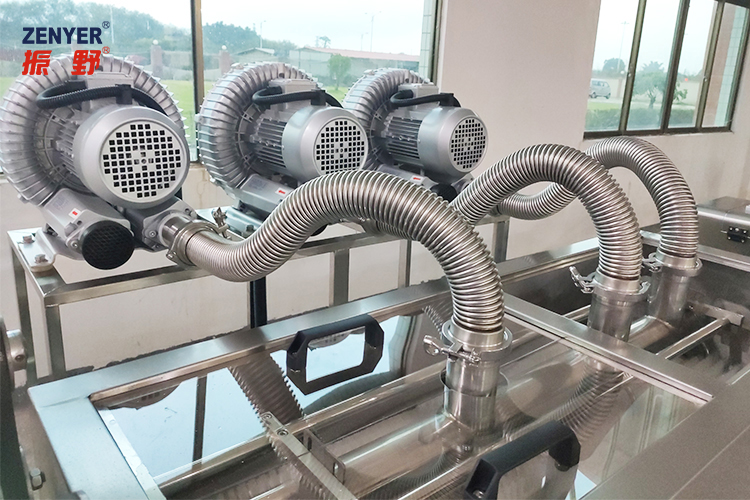

    Drying
    Drying

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

    Printing (option)
    Printing (option)

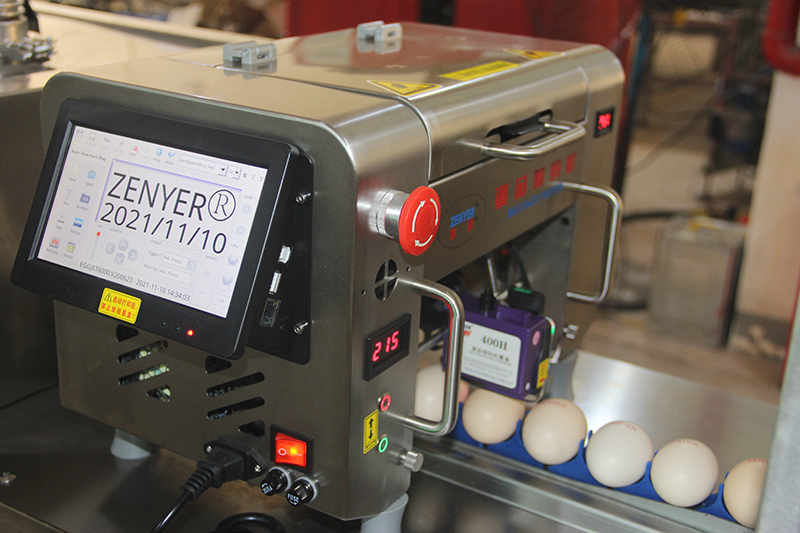

    ZENYER 401H single-head printing machine can be attached to the end of the egg washer, allowing users to print the farm name, logo, date, best before date, and other information.

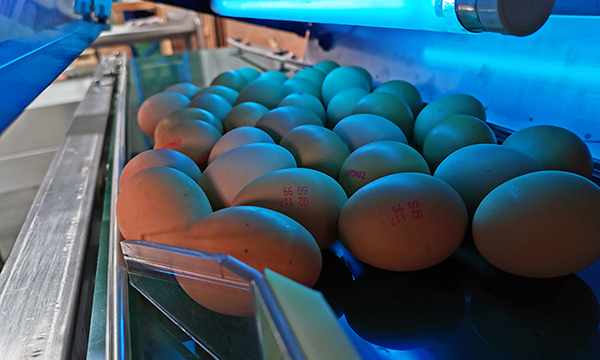

    Belt conveyor & UV sterilizing
    Belt conveyor & UV sterilizing

    Through the 604B belt conveyor, eggs coming from the 201A egg washer are divided into 3 lines and transferred into the 102B egg grader.
    In addition to having accumulator and bridging functions, the 604B belt conveyor features UV sterilizing. It takes advantage of the 604B UV sterilization system to sanitize egg shells for maximum food security.

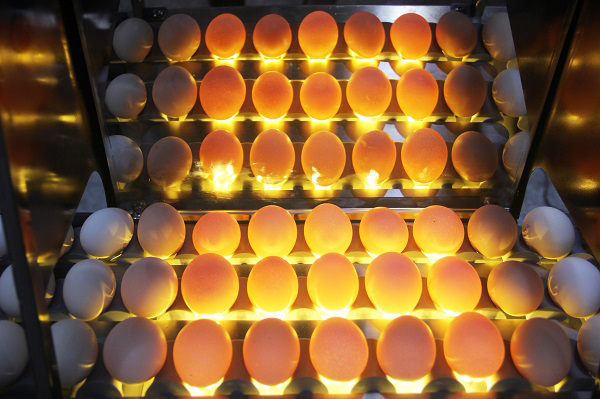

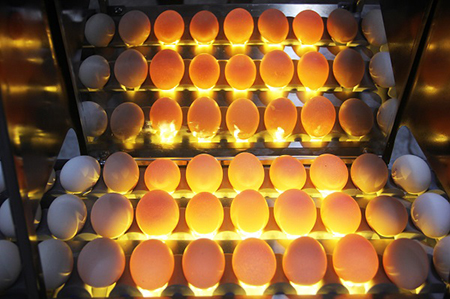

    Candling
    Candling

    Eggs will run through LED lights on a belt conveyor to the egg grader for a candeling application, allowing users to pick out any unqualified eggs, such as those with leaks or cracks.

    Grading
    Grading

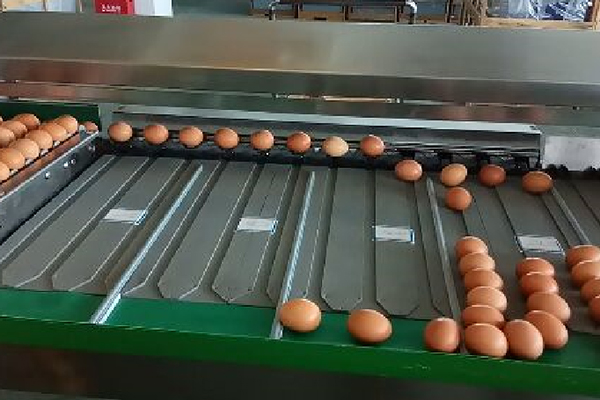

    Eggs are mechanically weighed using a leverage principle to ensure a precision sorting, at a maximum of 5 grades and a precision within ±1 gram.
