300A Egg Processing Line with Cleaning & Grading (3,000 EGGS/HOUR)

300A  Egg Processing  Line with Cleaning & Grading
300A  Egg Processing  Line with Cleaning & Grading 300A  Egg Processing  Line with Cleaning & Grading 300A  Egg Processing  Line with Cleaning & Grading 300A  Egg Processing  Line with Cleaning & Grading 300A  Egg Processing  Line with Cleaning & Grading 300A  Egg Processing  Line with Cleaning & Grading

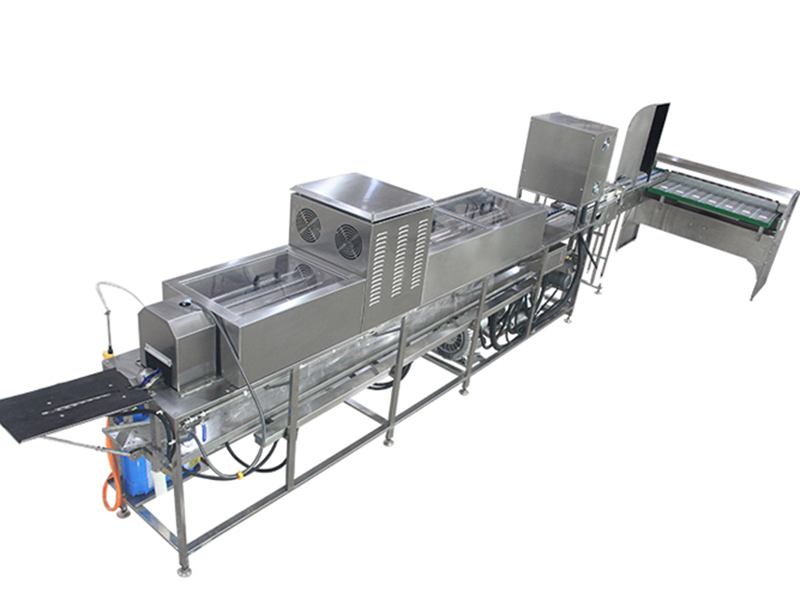

ZENYER 300A egg processing line is comprised of the 200A egg washer, 604B Belt Conveyor and 101B egg grader. This model has a maximum capacity of 3,000 eggs/hour, and will carry out candling, sanitizer spraying, brush washing and drying, UV sterilizing, candling, grading, and optional printing, all at a high production efficiency.

The machine body is made of stainless steel, which allows for a better durability and corrosion resistance. The full processing line can be installed either in a straight line, or at a right angle.

Inquiry
Specifications
Product name Egg Processing Line
Product code 300A
Model ZYL-J1-J2
Capacity 3,000 eggs/hour
Material Stainless steel
Power* 6.3 KW
Voltage* 220V, 50HZ, single phase OR 380V, 50HZ, three phase
Dimension(L×W×H) 7.3 *1.57*1.6 M
Net weight* 800KG
Gross weight* 1150KG
Function Ramp loading & candling, sanitizing, washing, drying, accumulator, candling, grading, and optional another accumulator & vacuum egg lifter for loading, egg printer for egg printing, and UV sterilizing

Notes

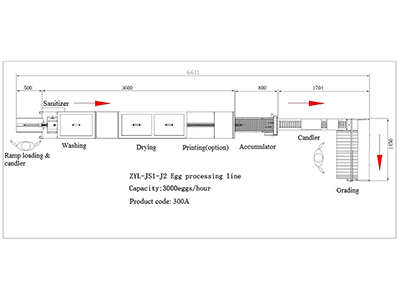

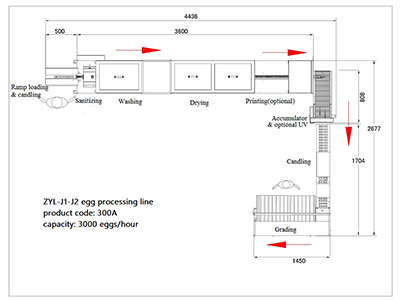

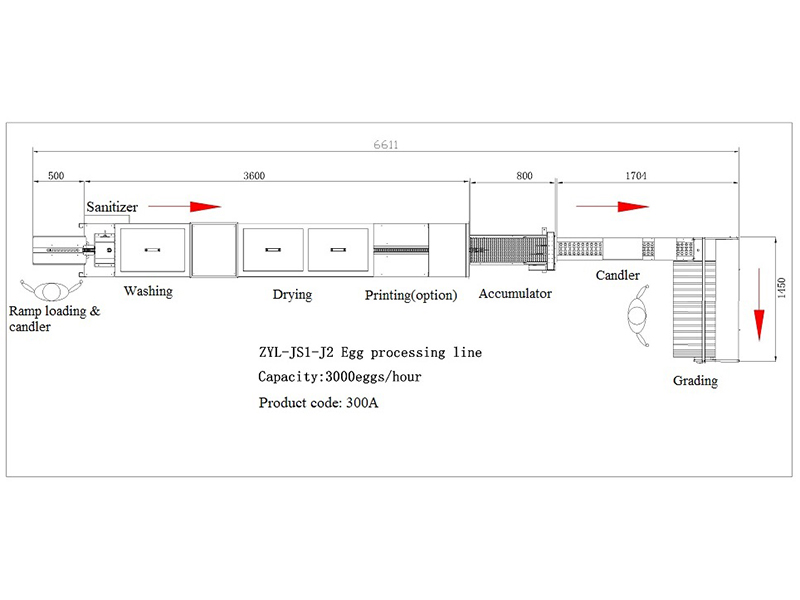

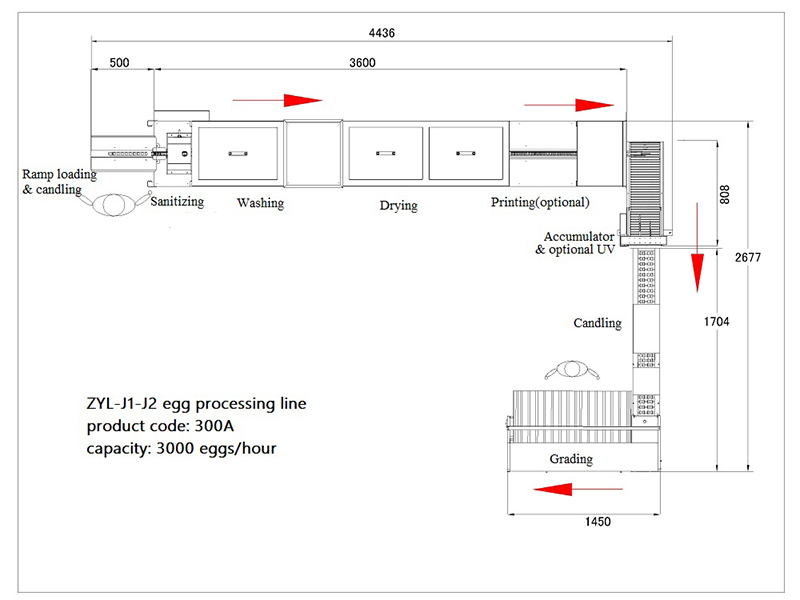

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Ramp loading & canding
  • Vacuum egg lifter & accumulator (optional)
  • Sanitizer sprayer
  • Washing
  • Drying
  • Printing(Option)
  • Accumulator (optional UV sterilizing)
  • Candling
  • Grading ( mechanical weighing)

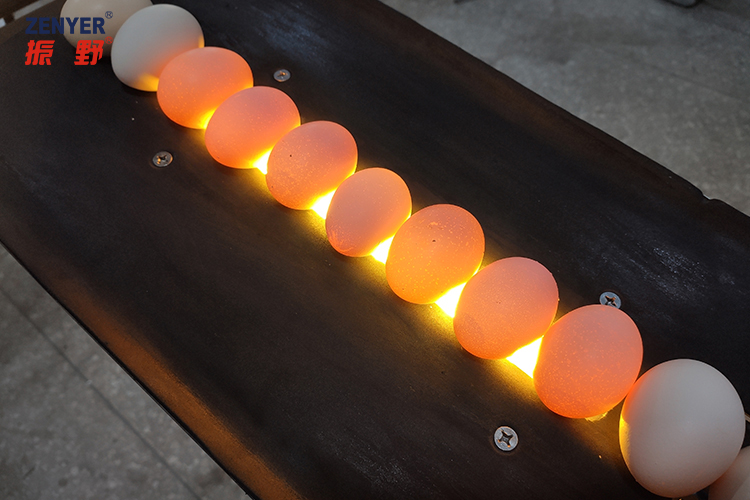

    Ramp loading & canding
    Ramp loading & canding

    Workers place the eggs on the loading ramp, where they can check for any broken eggs through the LED light detector of the loading ramp, preventing broken eggs from entering the washing machine.

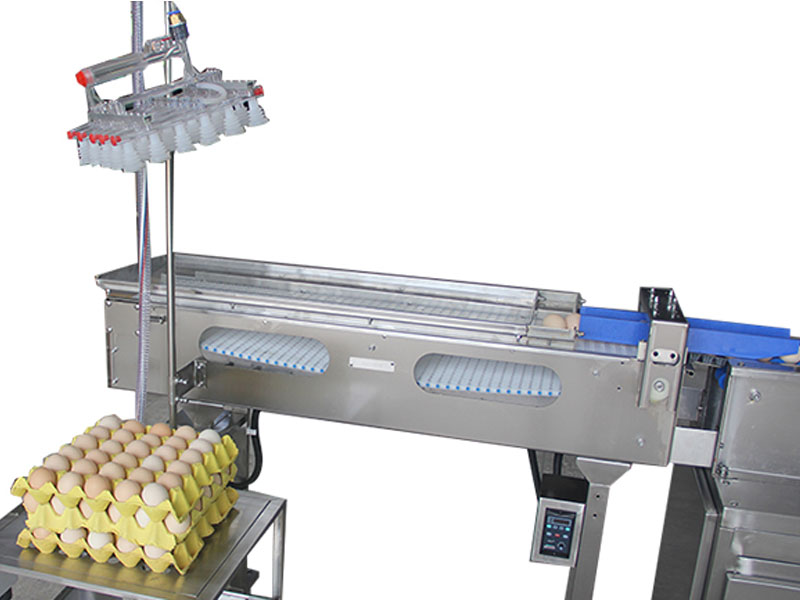

    Vacuum egg lifter & accumulator (optional)
    Vacuum egg lifter & accumulator (optional)

    Eggs are vacuum lifted and loaded onto the accumulator (with the single roller conveyor) using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the feeding unit of 200A egg washer.
    Only half the regular labour is needed if you have this option.

    Sanitizer sprayer
    Sanitizer sprayer

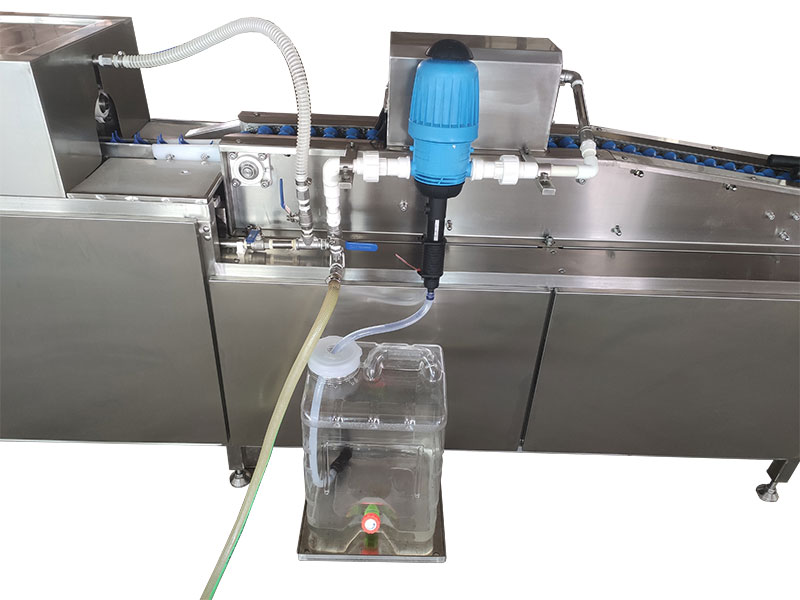

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are fully cleaned using brushes and a warm water spray (The machine doesn’t come with a water heater, customer provides it). The brush modules are flexible, with adjustments capable of being made to the brush distance, position, and speed.

    Drying
    Drying

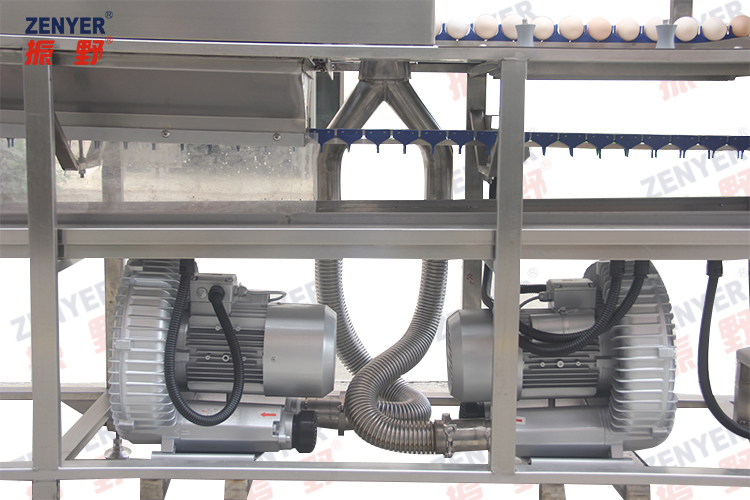

    Eggs are perfectly dried using a dry brush and a strong air pressure.

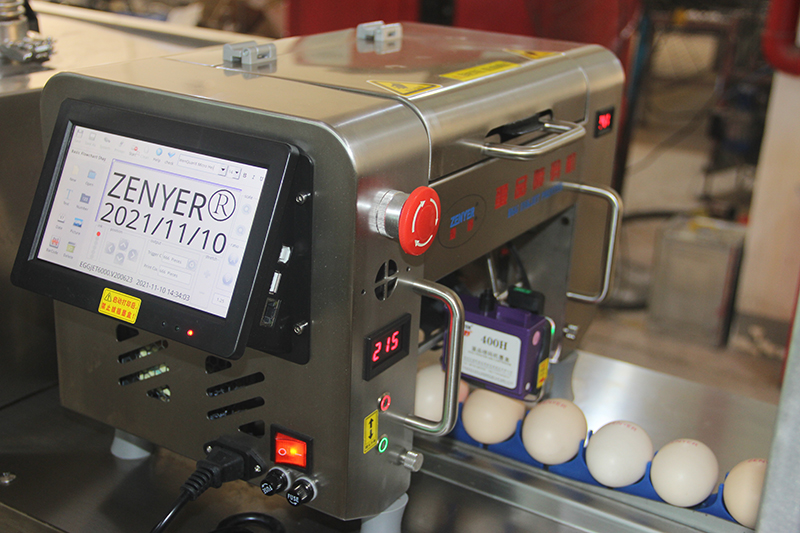

    Printing (option)
    Printing (option)

    ZENYER 401H single-head printing machine can be attached to the end of the egg washer, allowing users to print their farm name, logo, date, best before date and other information.

    Accumulator (optional UV sterilizing)
    Accumulator (optional UV sterilizing)

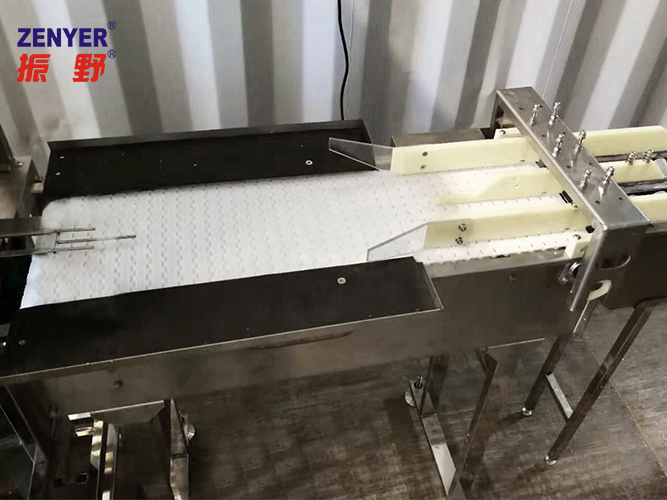

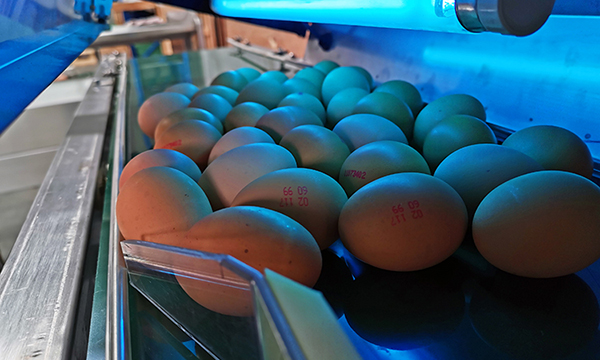

    Through the 604A accumulator, eggs are divided into 2 lines and transferred into the feeding roller of the grader automatically. And you can choose to have an optional UV sterilizing device which can be installed on the accumulator.

    Candling
    Candling

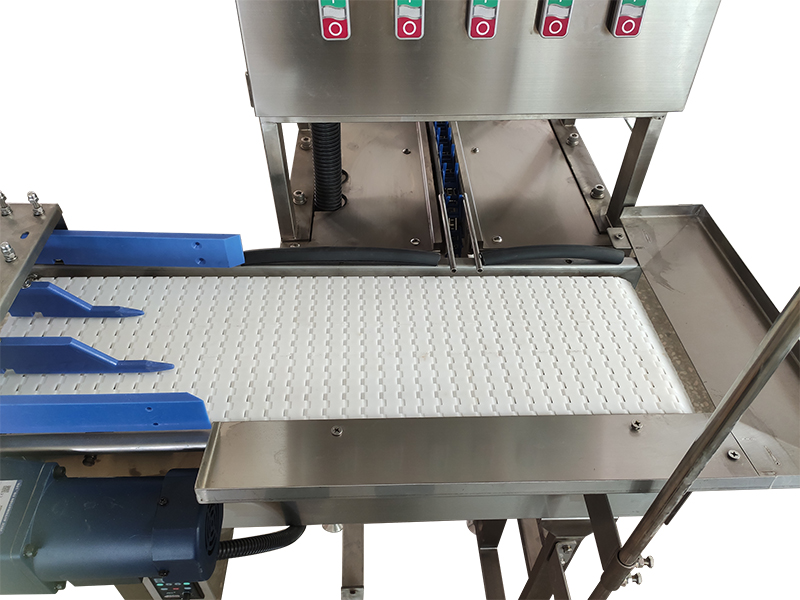

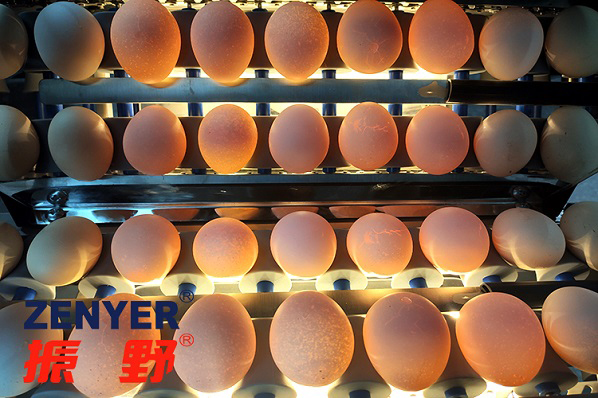

    Eggs will run through LED lights for a candling purpose on the belt conveyor, allowing employees to easily remove any unqualified eggs that leak or are cracked.

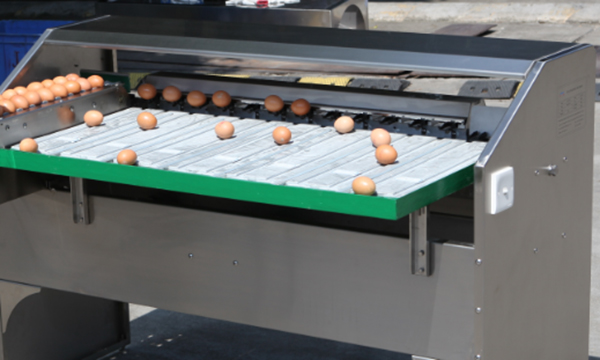

    Grading
    Grading

    Eggs are mechanically weighed using a leverage principle to ensure a precision sorting, with a maximum of 7 grades and a precision within ±1 gram.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
