302AS Egg Processing Line with Cleaning & Grading (10,000 EGGS/HOUR)

302AS Egg Processing Line with Cleaning Grading
302AS Egg Processing Line with Cleaning Grading 302AS Egg Processing Line with Cleaning Grading 302AS Egg Processing Line with Cleaning Grading 302AS Egg Processing Line with Cleaning Grading

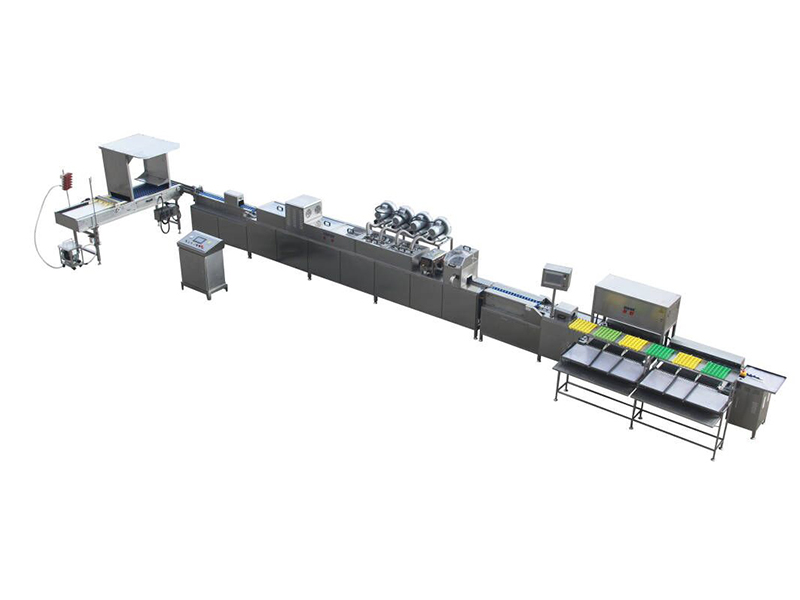

ZENYER 302AS egg processing line includes the 602 vacuum egg lifter, 605A egg accumulator table, 202A egg washer and 104B egg grader. This model has a maximum capacity of 10,000 eggs/hour, and is used to carry out egg loading & accumulator & candling booth, automatic sanitizer spraying, washing, drying, grading and manual packing. Users can also choose to have it equipped with 401H egg printer as well.

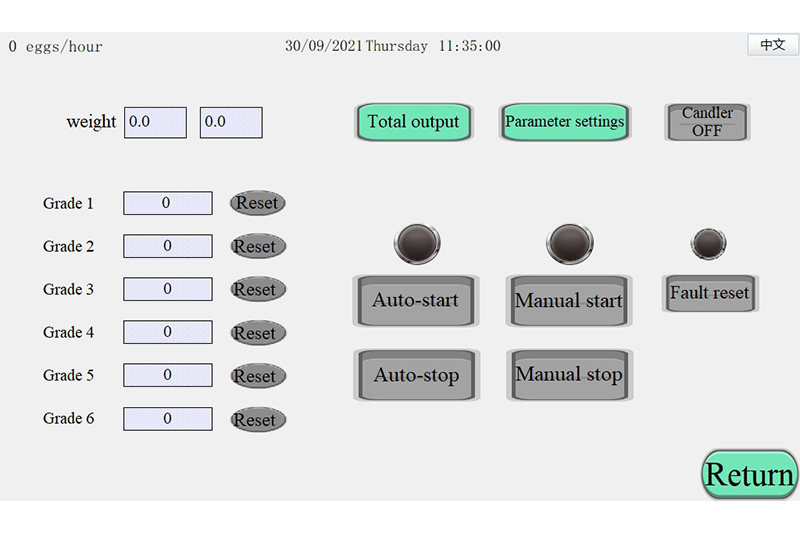

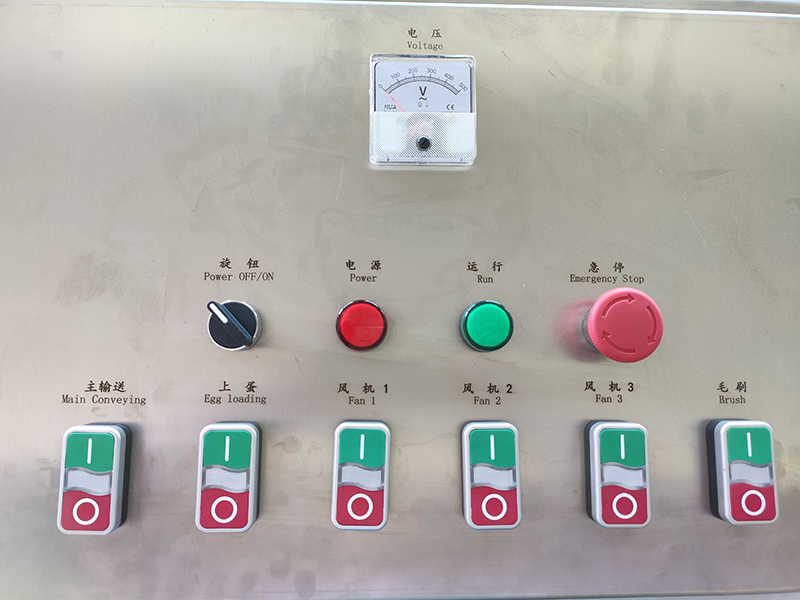

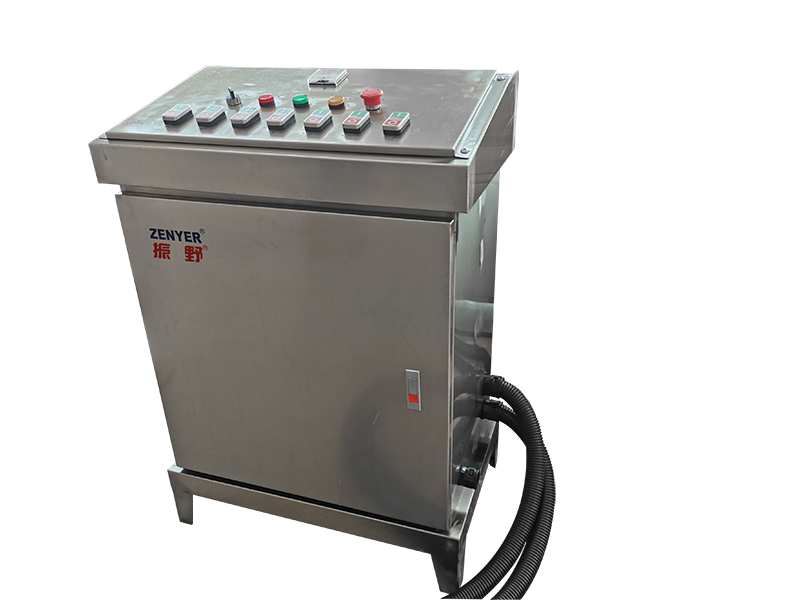

This processing equipment line is fully PLC system controlled, and is equipped with an individual control panel that is used to set the grading levels, calibrate the accuracy, accumulate quantities, and alarm and diagnose any malfunctions that may occur.

Inquiry
Specifications
Product name Egg Processing Line
Product code 302AS
Model ZYL-JS1-D1-C
Capacity 10,000 eggs/hour
Material Stainless steel
Accuracy ±1 gram
Grade* 6
Power* 12KW
Voltage* 380V, 50HZ, three phase
Dimension(L×W×H) 12.5*3.3*2.0 M
Net weight* 1200KG
Gross weight* 1700KG
Function Accumulator, candling, sanitizing, egg washing, drying, grading & counting, manual collection table and optional vacuum egg lifter and egg printer

Notes

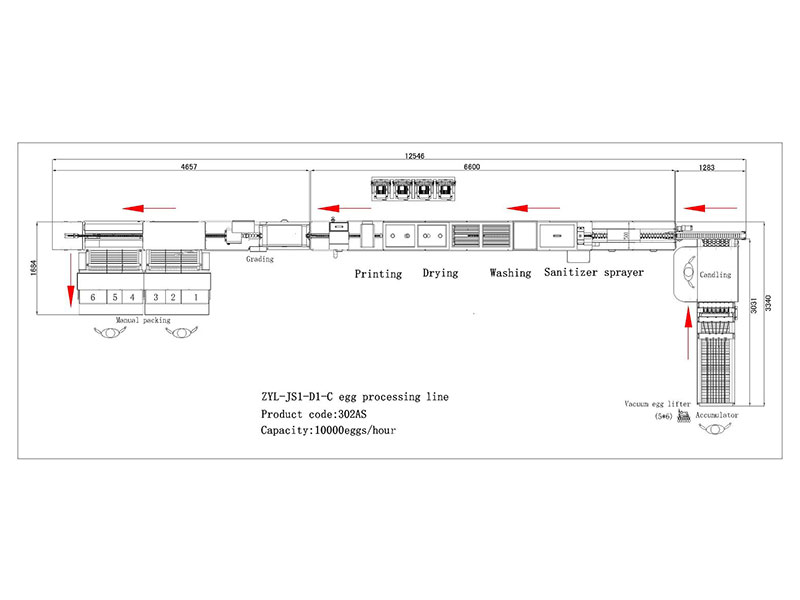

* Grade, power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Vacuum egg lifter & Accumulator (includes Candling)
  • Sanitizer
  • Washing
  • Drying
  • Single-head printing(Option)
  • Grading (electronic weighing)
  • Manual collecting
    Vacuum egg lifter & Accumulator (includes Candling)
    • Loading
    • Loading
    • Loading

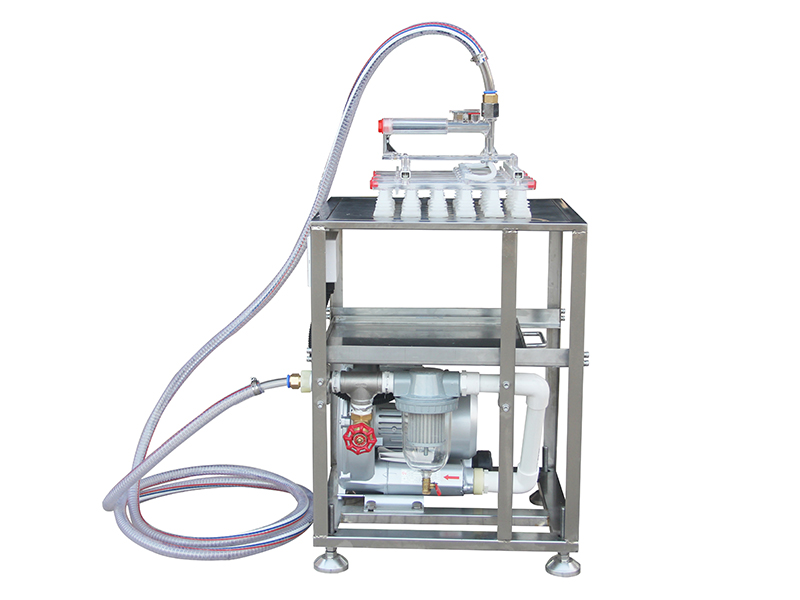

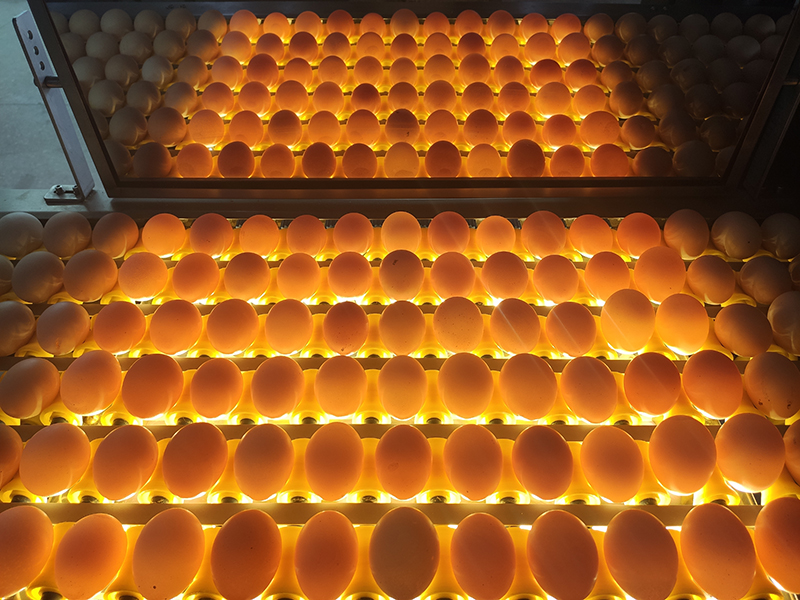

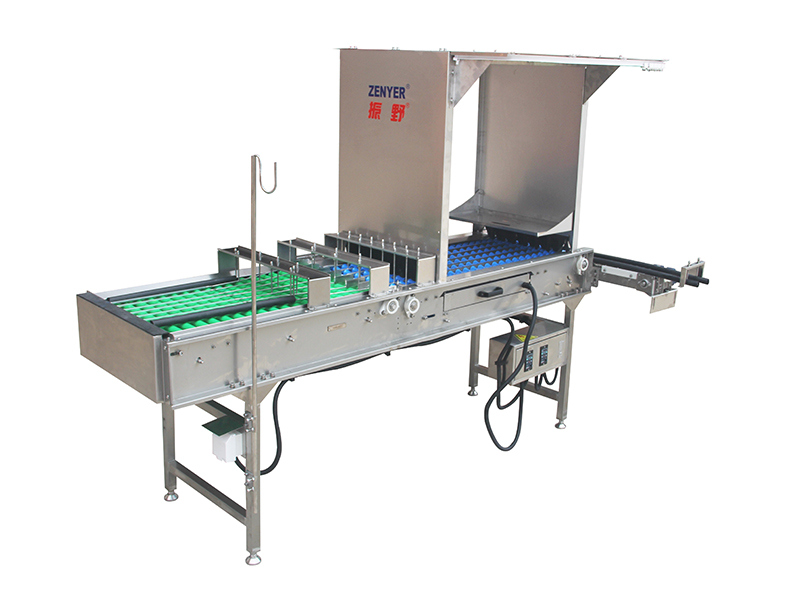

    Eggs are vacuum lifted and loaded onto 605A accumulator using the ZENYER 602 vacuum egg lifter. 6 rows LED lights are added under the accumulator and workers can pick out any leaking, dirty or cracking eggs through the LED lights. The LED candling booth is equipped with a cover and mirror as well to reinforce the candling result. ZENYER 605A accumulator will direct 6 lines of eggs into 1 line and transport them to the single conveyor egg washer.

    Sanitizer sprayer
    Sanitizer sprayer

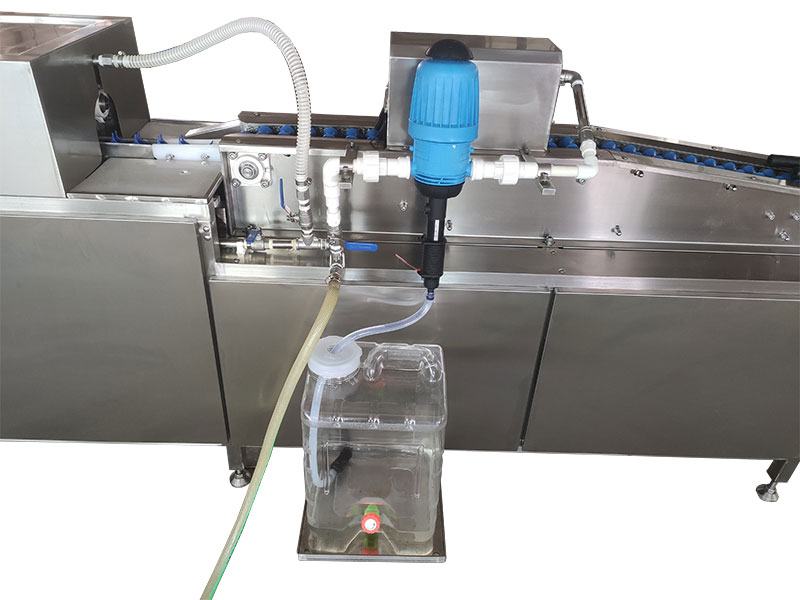

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are fully cleaned using two sets of brushes with a warm water spray (The machine doesn’t come with a water heater, customer provides it). Brush modules are flexible and adjustments can be made to the brush distance, position, and speed.

    Drying
    Drying

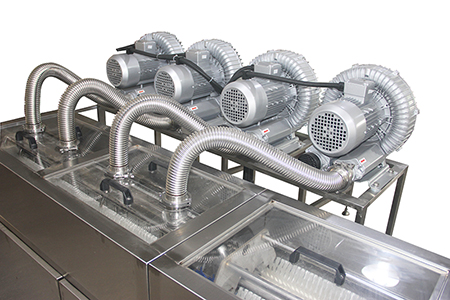

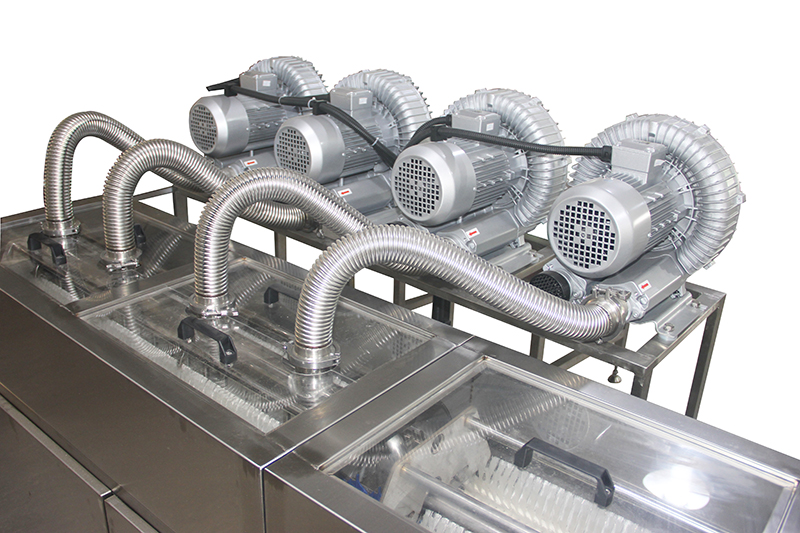

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

    Printing (option)
    Printing (option)

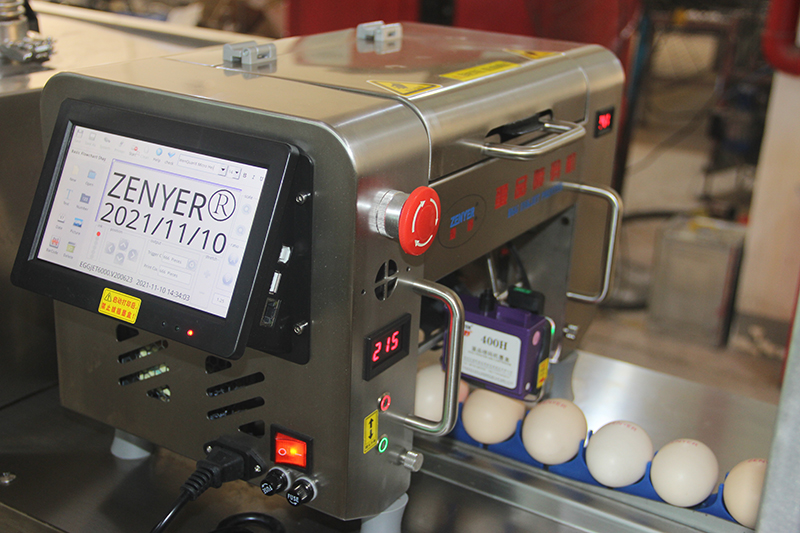

    ZENYER 401H single-head printing machine can be attached to the end of the egg washer, allowing users to print the farm name, logo, date, best before date, and any other necessary information onto the egg.

    Grading
    • Grading
    • Grading
    • Grading
    • Grading

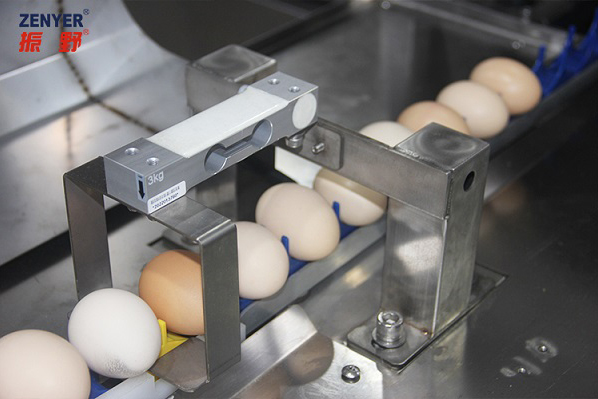

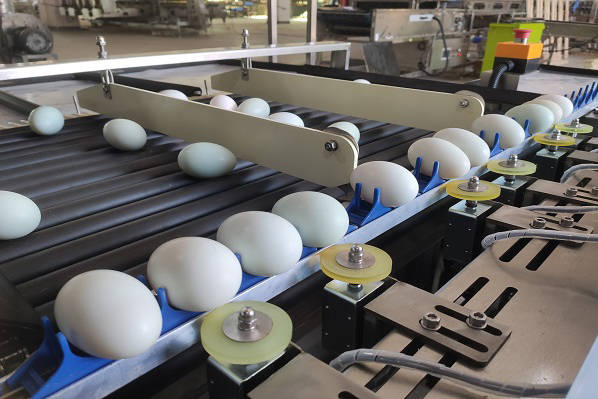

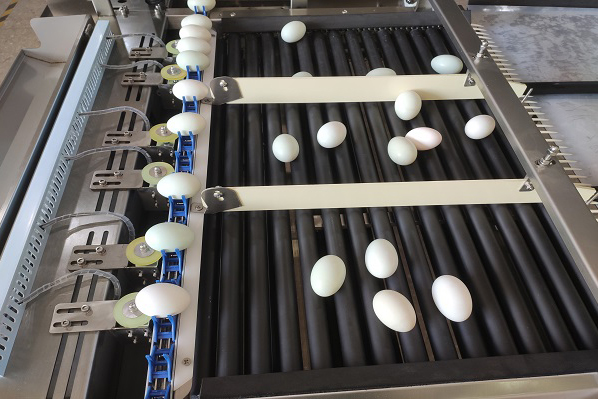

    The PLC system controlled electronic weighing system grades eggs based on weight with a maximum of 6 grades.

    Manual collecting
    Manual collection

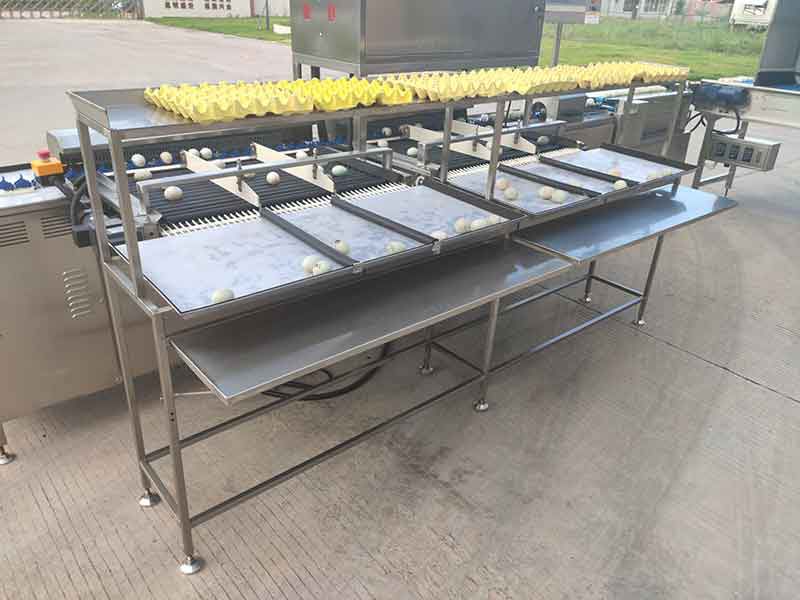

    Manual collection table

    Processed eggs are manually placed onto the trays.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
