203B Egg Washer (20,000 EGGS/HOUR)

203B  Egg Washer
203B  Egg Washer 203B  Egg Washer 203B  Egg Washer 203B  Egg Washer

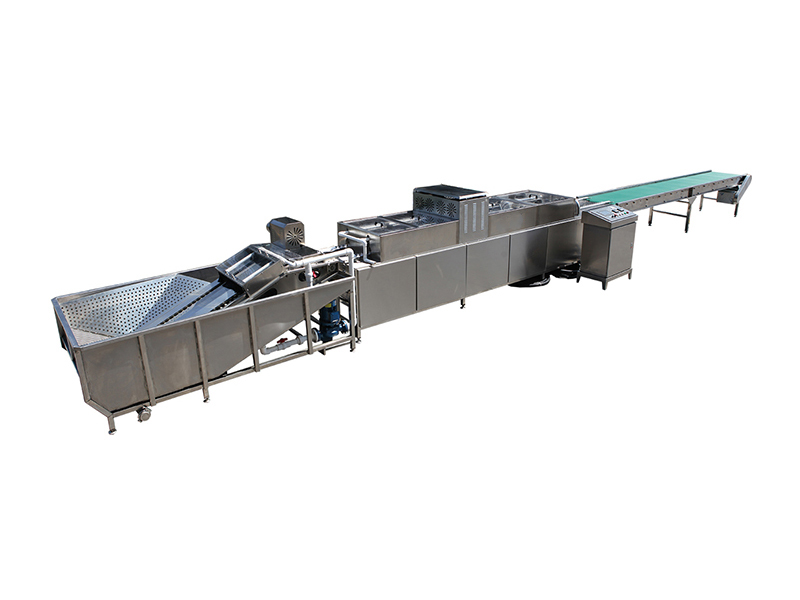

The ZENYER 203B egg washer includes double water bath loading lines, candling, brushing, and drying. It is suitable for cleaning and drying duck eggs and preserved eggs. This model has a flexible operation speed with a maximum capacity of 20,000 eggs/hour. You can also combine the equipment with an egg grader or egg separator to make complete assembly line for higher production efficiency.

Inquiry
Specifications
Product name Egg cleaning machine
Product code 203B
Model ZYX-YS2-3
Capacity 20,000 eggs/hour
Material Stainless steel
Power* 21.568KW
Voltage* 380V, 50HZ, three phase
Dimension(L×W×H) 7.3*1.7*1.1 M
Net weight* 600KG
Gross weight* 850KG
Function Water bath with double line loading, washing, drying, candling and optional manual packing lane

Notes

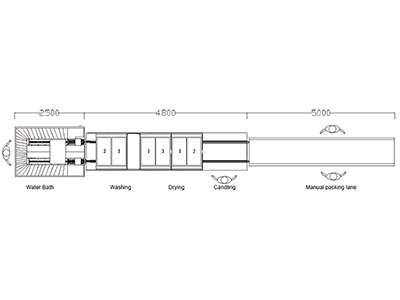

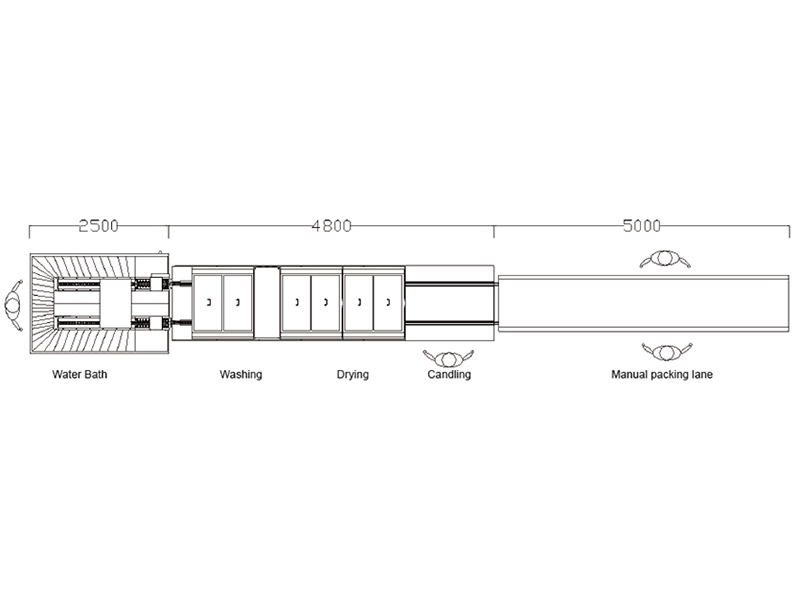

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Water bath loading
  • Washing
  • Drying
  • Candling
  • Manual collection conveyor (option)

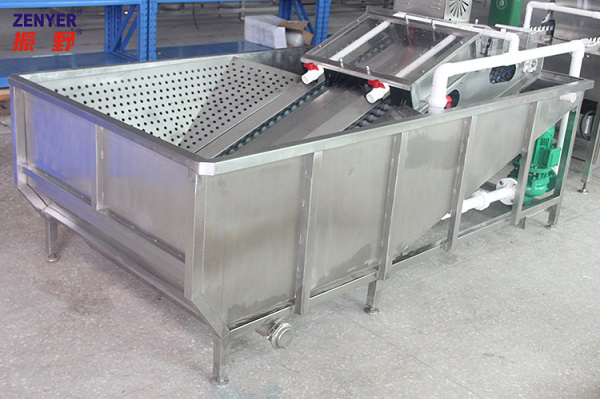

    Water bath loading
    Water bath loading

    Pour the whole tray or box off eggs into the water bath, and eggs will be transported into the washer entrance in double lines following the conveyor. This loading method not only saves time, but also minimizes egg cracking by using buoyancy. Plus, eggs are easier to wash after running through water bath.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are well cleaned by brushes with warm water spraying. Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

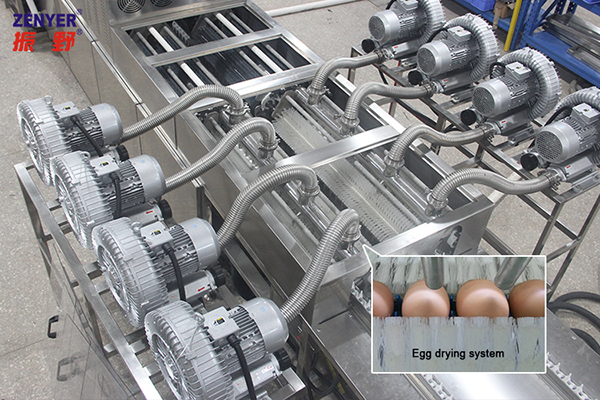

    Drying
    Drying

    Eggs are perfectly dried by drying brush and strong air generated by drying fans.

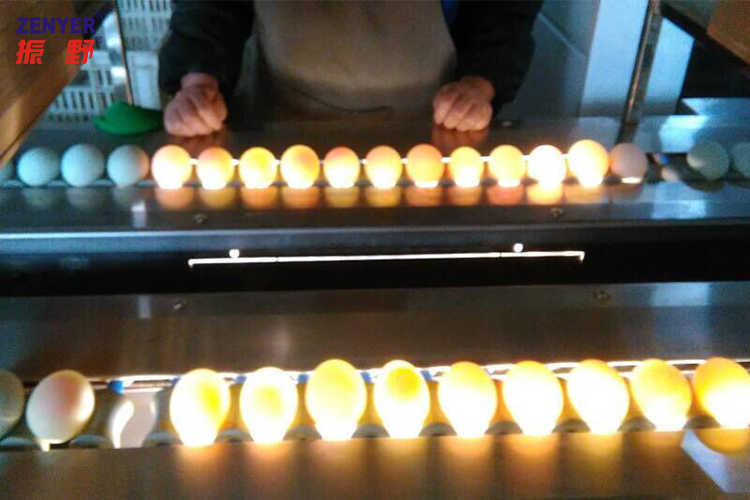

    Candling
    Candling

    Eggs will run through LED lights for candling purposes, workers can easily pick out any unqualified eggs such as leaking or cracked ones.

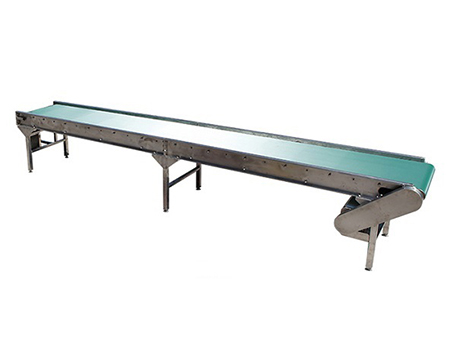

    Manual collection conveyor (option)
    Candling

    Washed eggs will roll onto collection table and can be placed into trays or packed up manually or could be attached with ZENYER egg graders or separators directly.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
