200AS Egg Washer (2,000 EGGS/HOUR)

200AS Egg Washer
200AS Egg Washer 200AS Egg Washer 200AS Egg Washer 200AS Egg Washer

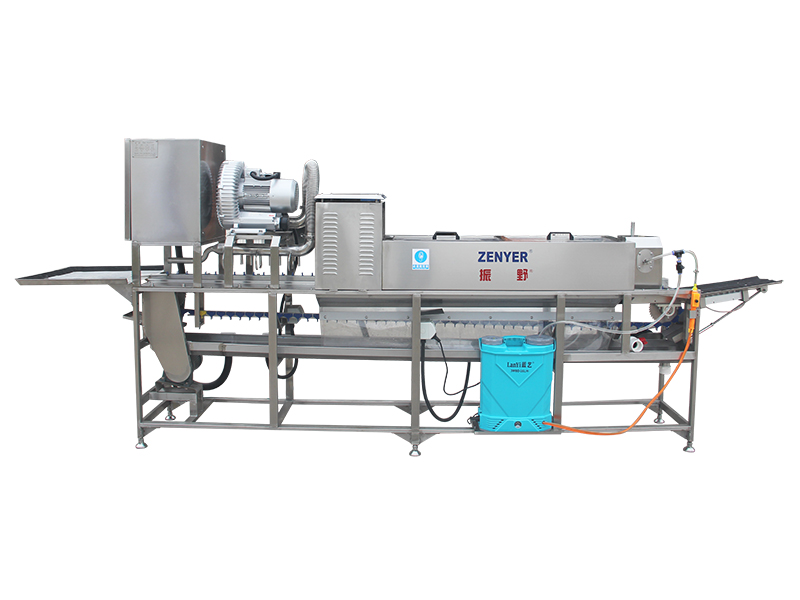

The ZENYER 200AS egg washer is made of strong stainless steel for optimal durability and hygiene. This egg cleanser processes 2000 eggs an hour and satisfies egg cleaning requirements for small-sized cage-free farms.

The 200AS egg washer has a compact structure and occupies minimal space.

Inquiry
Specifications
Product name Egg cleaning machine
Product code 200AS
Model ZYX-J1-1
Capacity 2,000 eggs/hour
Material Stainless steel
Power* 3.9 KW
Voltage* 220V, 50HZ, single phase
Dimension(L×W×H) 3.9*0.5*1.55 M
Net weight* 250KG
Gross weight* 350KG
Function Ramp loading, candler, sanitizer sprayer, washing, drying fan, manual collection table, optional accumulator and vacuum egg lifter

Notes

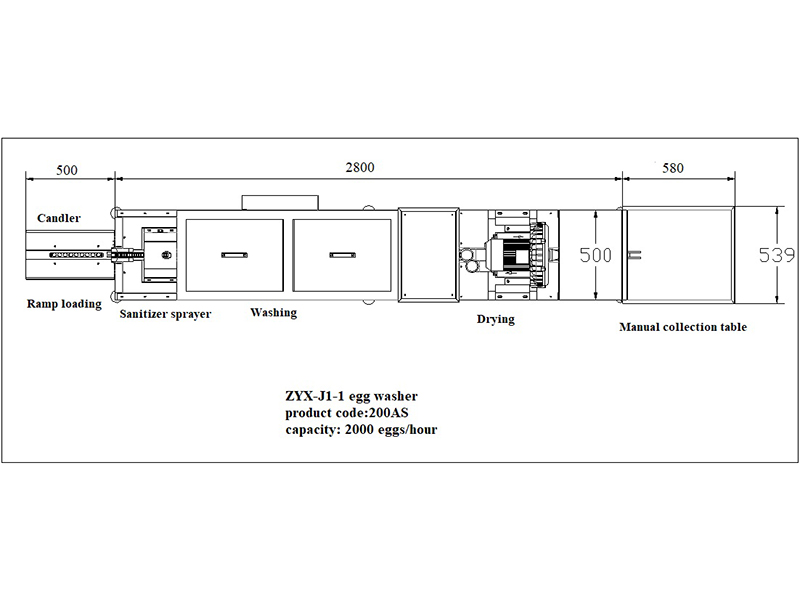

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Manual loading & candling
  • Vacuum egg lifter & accumulator (optional)
  • Sanitizer sprayer
  • Washing
  • Drying
  • Manual collection
    Manual loading & candling
    Manual loading & candling

    Workers place eggs on the loading ramp.
    Eggs will run through LED lights for candling purpose before dropping into the egg washer, where workers can easily pick out any unqualified eggs such as leaking or cracking ones.

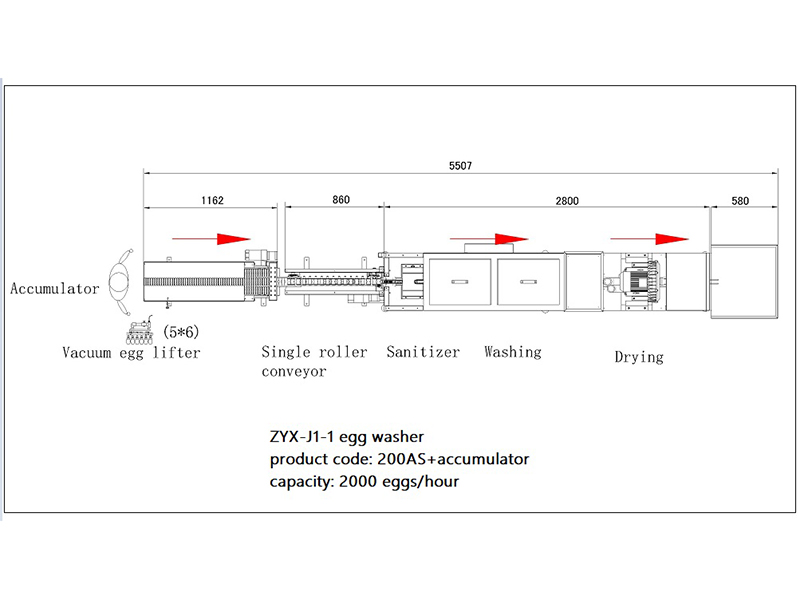

    Vacuum egg lifter & accumulator (optional)
    • Washing
    • Washing

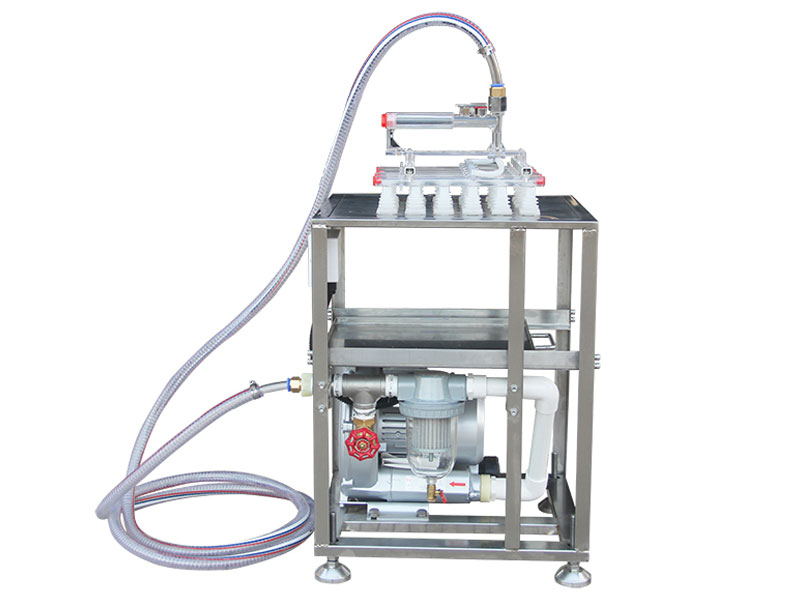

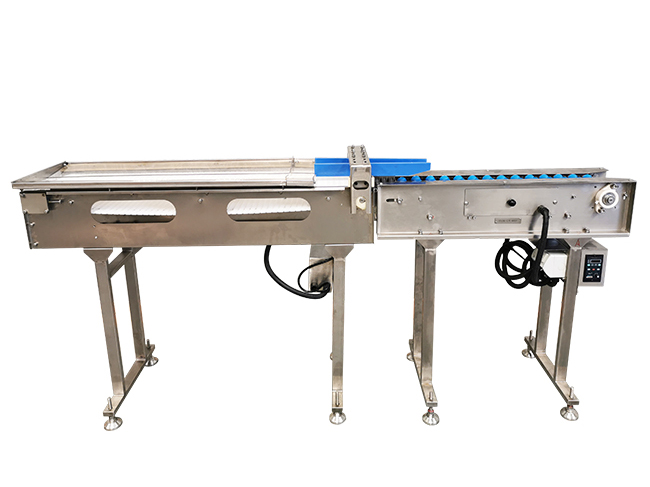

    Eggs are vacuum lifted and loaded onto the accumulator (with the single roller conveyor) using the 602 vacuum egg lifter. Through the accumulator, the eggs are separated into one row and transferred into the feeding unit of 200AS egg washer.

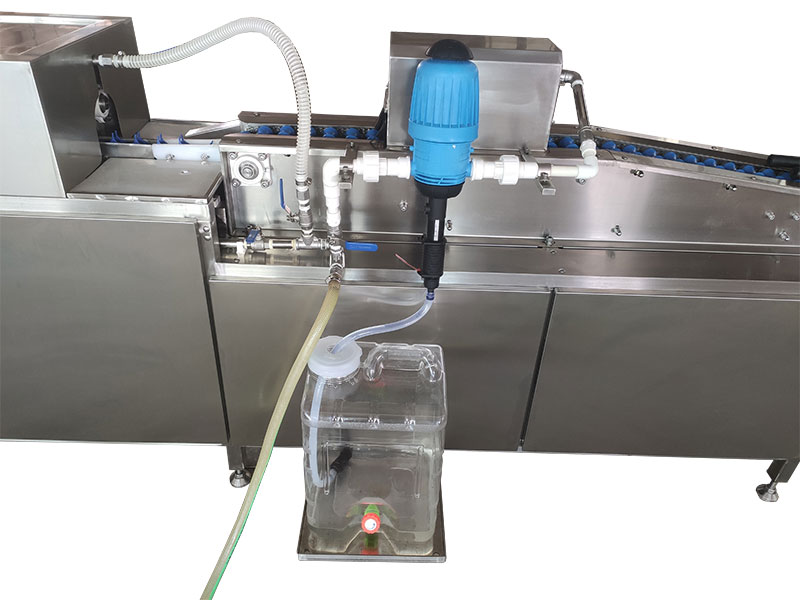

    Sanitizer sprayer
    Sanitizer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    Eggs are effectively cleaned by brushes with warm water spraying (the machine doesn’t come with a water heater, customer provides it). Brush modules are flexible and adjustments could be made on brush distance, position and speed.

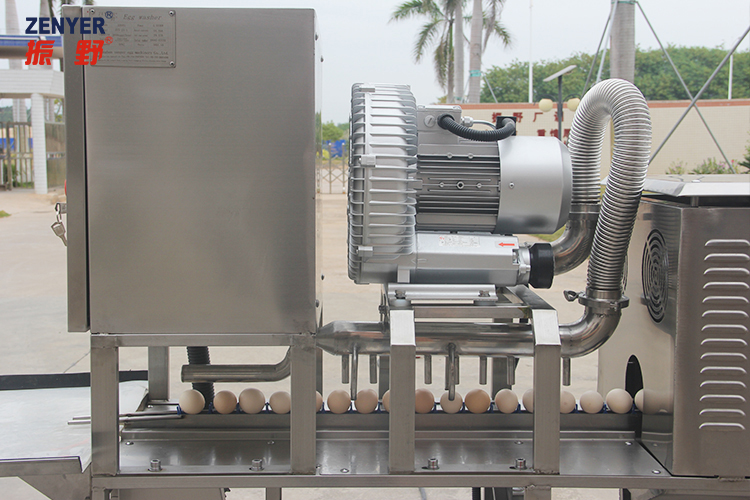

    Drying
    Fan

    The eggs will be dried by the drying fan system.

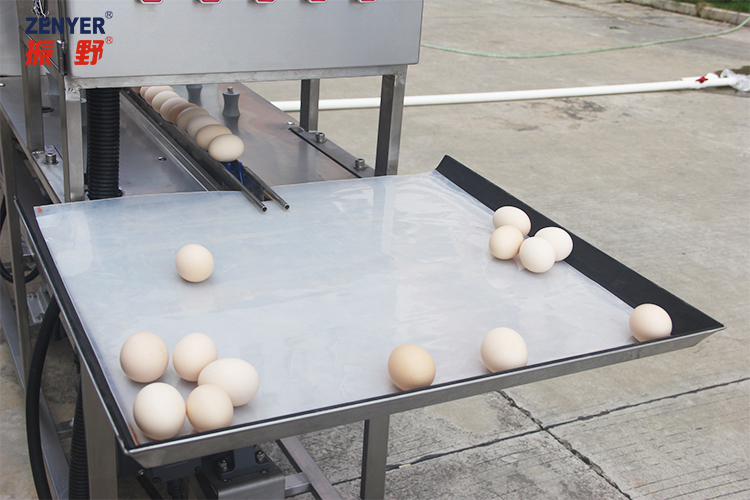

    Manual collecting
    Manual collecting

    Washed eggs will roll onto collection table and can be placed into trays manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
