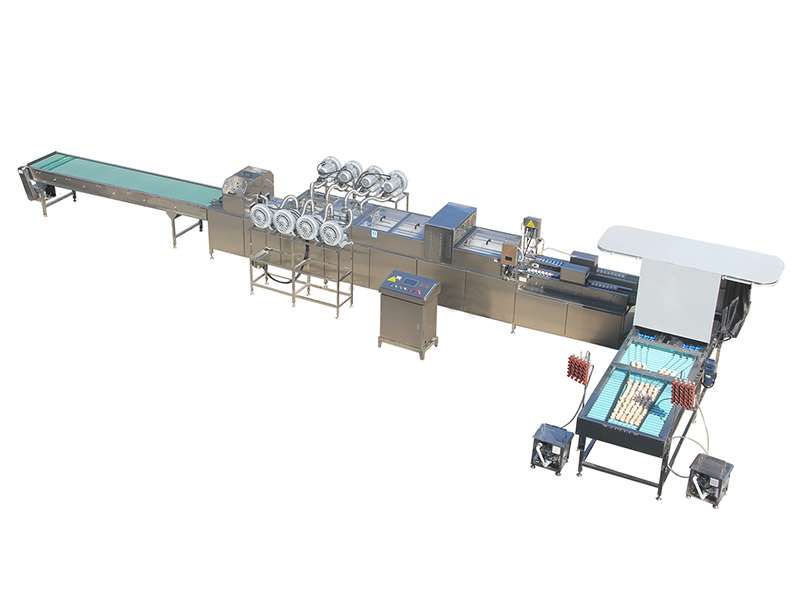

203A Egg Washer (20,000 EGGS/HOUR)

203A Egg Washer
203A Egg Washer 203A Egg Washer 203A Egg Washer 203A Egg Washer

ZENYER 203A egg washer is made of high-quality stainless steel for great durability, corrosion resistance and hygiene. The 203A egg washing machine is comprised of the 203A main machine, an accumulator, and an optional manual collection conveyor. It has an adjustable capacity and can reach maximum capacity of 20,000 eggs/hour.

The egg washer can combine with the ZENYER 107 egg grader to form the ZENYER 303A egg processing line with a capacity of 20,000 eggs/hour

Inquiry
Specifications
Product name Egg cleaning machine
Product code 203A
Model ZYX-JS2-3
Capacity 20,000 eggs/hour
Main material Stainless steel
Power* 22.59kW
Voltage* 380V, 50HZ, 3-phase
Dimension (L*W*H) 13.1*5.0*2.0 M
Net weight* 850KG
Gross weight* 1150KG
Function Accumulator & candling, sanitizing sprayer, brush washing & drying, (printing for option), manual collection conveyor (or attach with an egg grader)

Notes

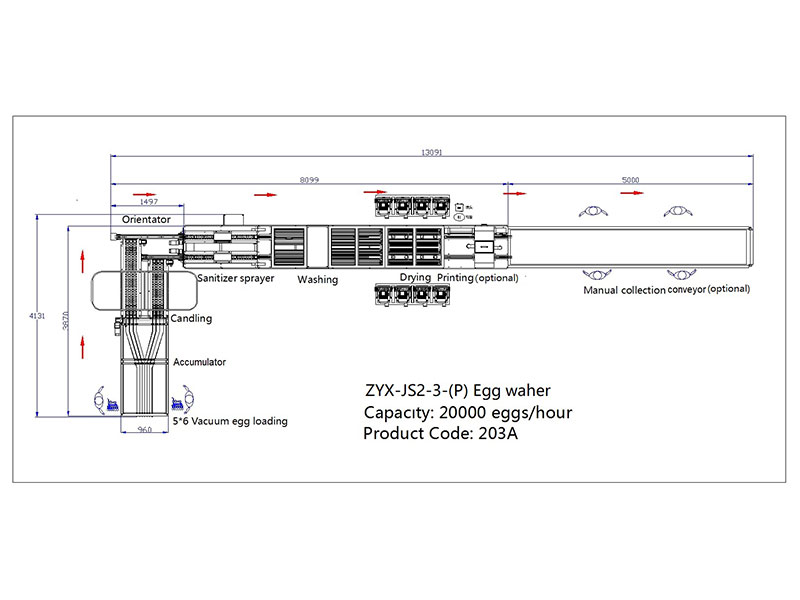

* Power, net weight and gross weight are calculated according to the floor plan above.
* The voltage and frequency may be different due to different countries. For more details of electrical data sheet, please check with the ZENYER representatives.

Operation Flow
  • Accumulator (including candling)
  • Sanitizing
  • Washing
  • Drying
  • Printing (optional)
  • Manual collecting conveyor (optional)

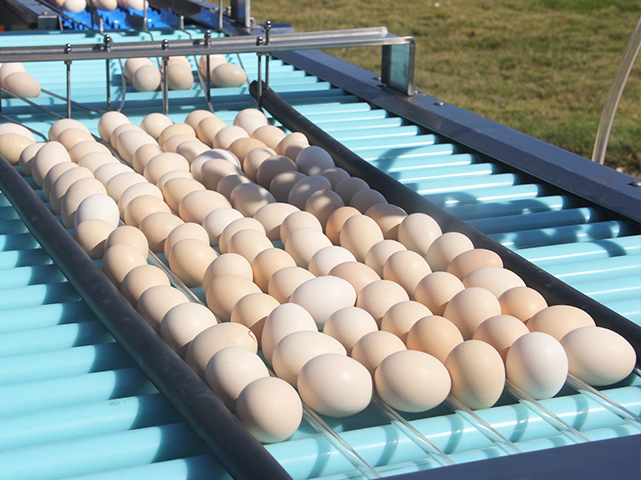

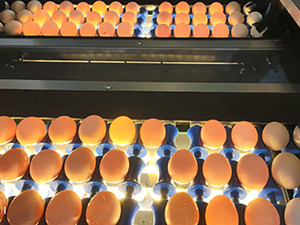

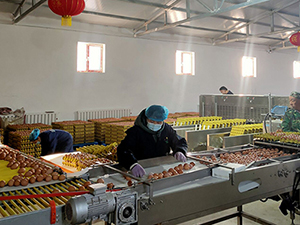

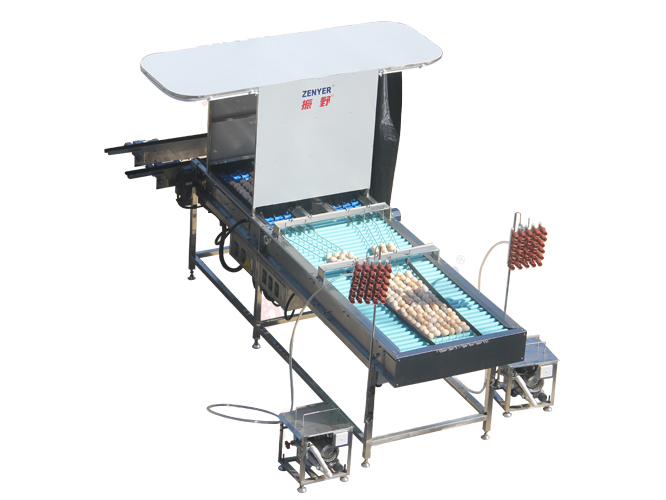

    Accumulator (including candling)
    • Accumulator (including candling)
    • Accumulator (including candling)
    • Accumulator (including candling)
    • Accumulator (including candling)

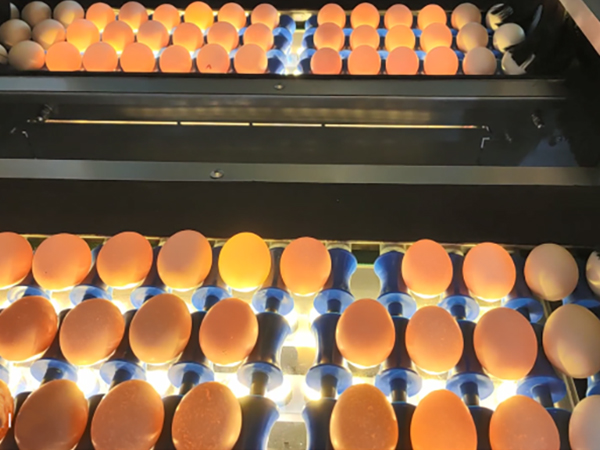

    Ideally, connect the accumulator with a rod conveyor that also connects to the chicken shed. Eggs from the chicken shed will roll onto the rod conveyor which allows the eggs to flow onto the accumulator directly. This accumulator also features candling to check for leaking, dirty or cracked eggs. Then it would direct the eggs onto the feeding line of egg washer.

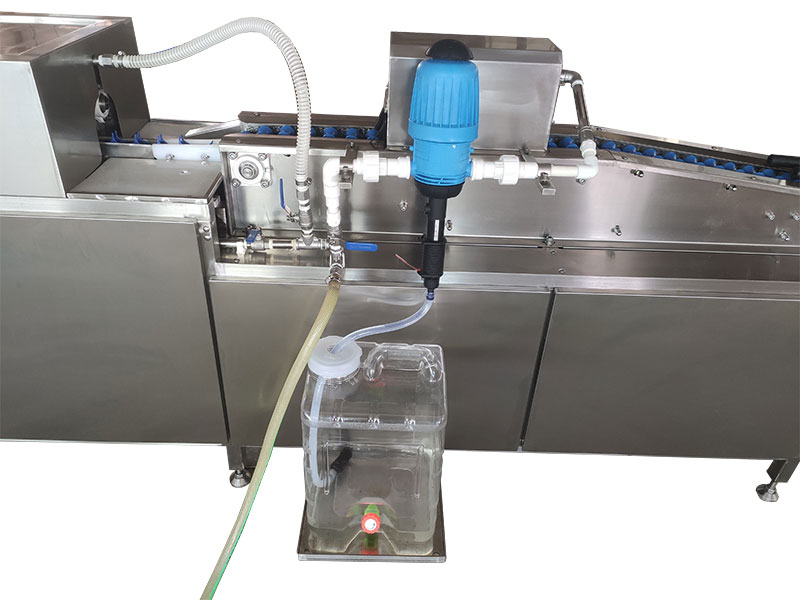

    Sanitizing sprayer
    Sanitizing sprayer

    Sanitizer sprayer sprays chemical liquid (such as sanitizer, detergent depending on the local government policy) on eggs automatically before washing.

    Washing
    • Washing
    • Before washingBefore washing
    • After washingAfter washing

    The eggs will be cleaned by brushes with warm water (customer provides). Brush modules are flexible, and adjustments can be made on brush distance, position and speed.

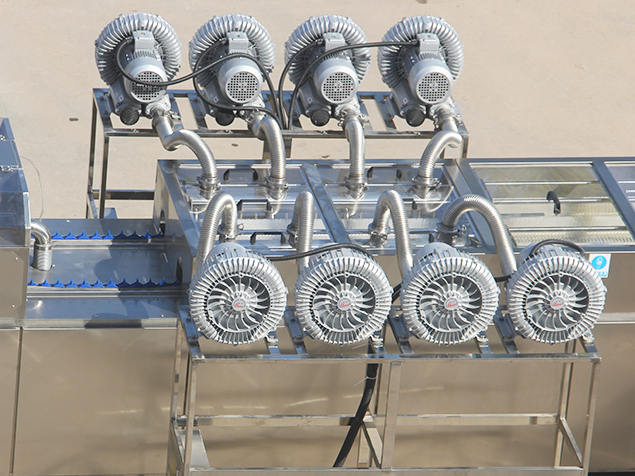

    Drying
    Drying

    Water on the eggs will be swept off by the brushes, meanwhile the eggs themselves are dried by the drying system. The drying rate can reach up to 99%, depending on the environmental humidity.

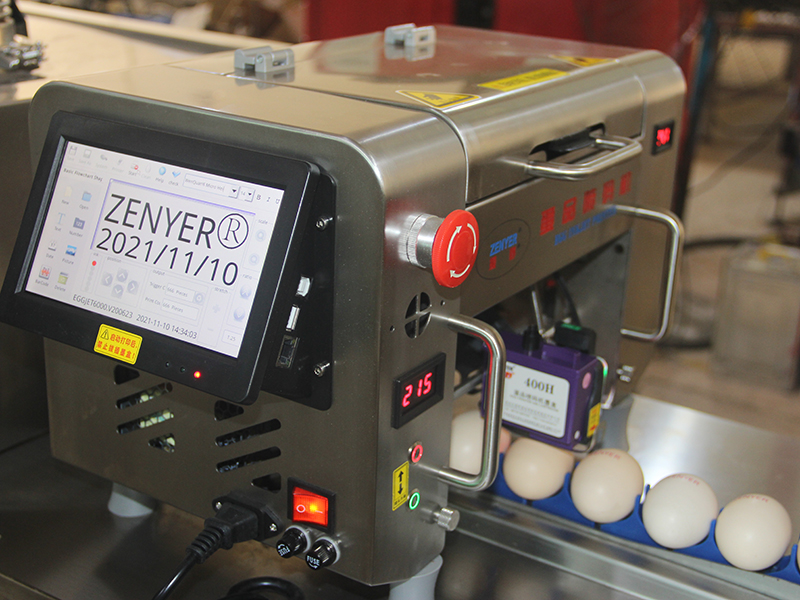

    Printing (Optional)
    Printing (Optional)

    ZENYER 401H egg printer (single print head) is an optional attachment at the end of the egg washer after drying process, which prints company name and logo, date, and Julian date, etc. on eggs.

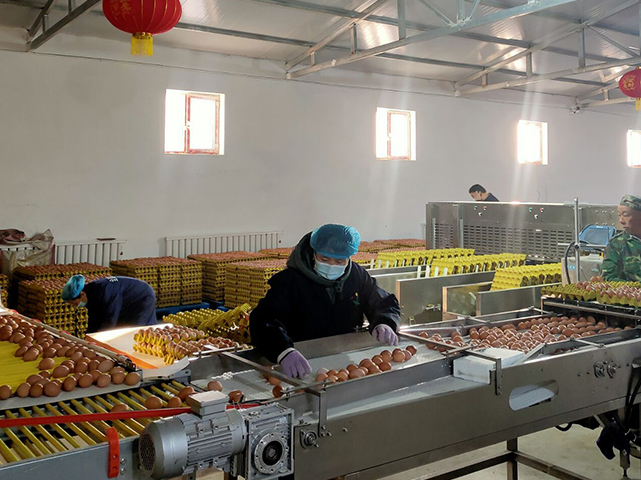

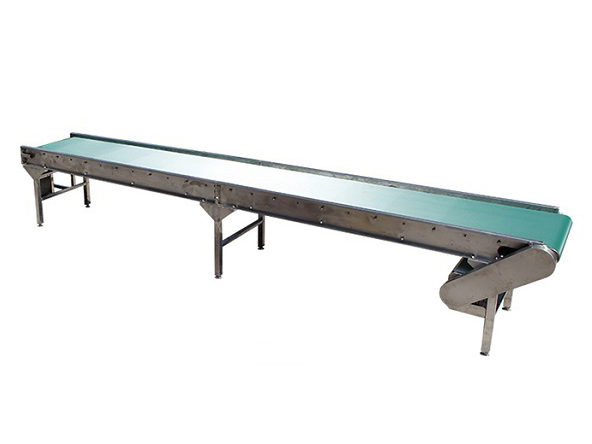

    Manual collection conveyor (Optional)
    Manual collection conveyor (Optional)

    Washed eggs will roll onto the collection conveyor and can be collected manually.

As eggs are one of the most versatile ingredients demanded in the food industry, we at Zenyer have dedicated ourselves to making your business more profitable with egg processing equipment since its establishment in 1997. We are able to deliver turnkey solutions with our innovative products such as our egg graders, egg cleaning machines, egg separators and egg packing machines. Whether you want to set up a new egg processing plant or need to optimize your manufacturing facilities, Zenyer as a professional egg processing machine manufacturer can offer you solutions for all of your egg processing problems.
